Triplett Con-24v-12v Regulated Power Converter User Manual

TRIPLETT CON-24V-12V Regulated Power Converter

Product Information

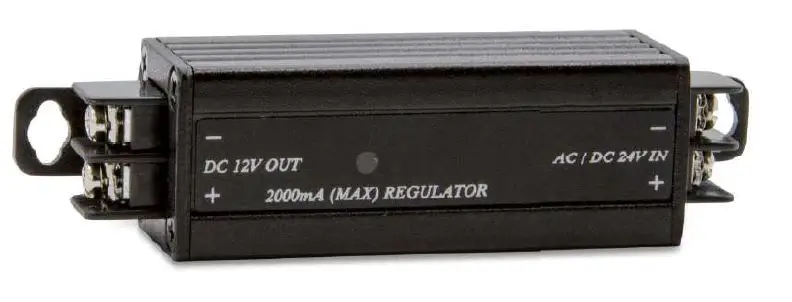

The CON-24V-12V is a voltage converter designed to convert AC or DC input power to regulated 12V DC output power. It has a maximum output current of 2000mA and comes with two 2-pin terminal blocks for easy installation. The converter can operate in temperatures ranging from -40 to 85 degrees Celsius and has a humidity tolerance of up to 95%. The physical dimensions of the converter are 102.8 x 25.4 x 25.4mm and it weighs 75g.

Product Usage Instructions

1. Ensure that the input power source is within the range of AC 18~26V or DC 18~36V.
2. Connect the input power source to the first 2-pin terminal block on the converter.
3. Connect the device requiring 12V DC output power to the second 2-pin terminal block on the converter.
4. Ensure that the ambient temperature and humidity levels are within the operating range of -40 to 85 degrees Celsius and up to 95%, respectively.
5. Power on the input source and verify that the output voltage is regulated at 12V DC.

If you require further assistance or have any questions about the usage of the CON-24V-12V voltage converter, please contact our customer service team at 1.888.610.7664 or email us at [email protected].

Introduction

The Triplett CON-24V-12 is a power converter that allows DC powered camera to be powered by AC.

Features

• Converts AC/DC to DC 12V 2A.
• Supports AC 18V to 26V or DC 18 to 36V power input.
• Built-in 2-pin terminal block at both ends.

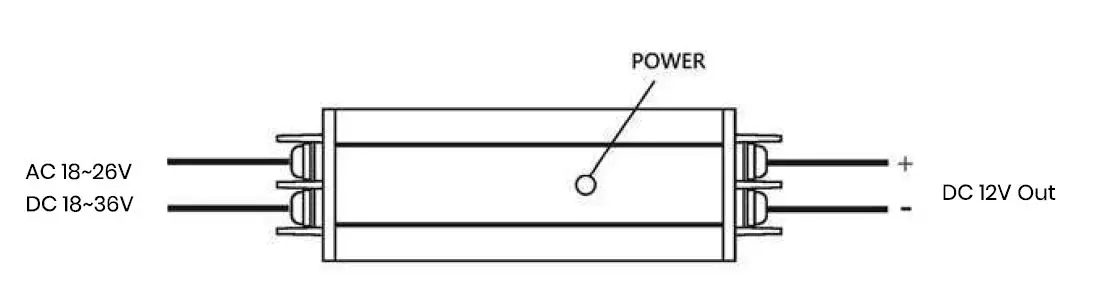

Installation View

LED Indication

Caution

• Please pay attention to the power input and output connection.
• The power connection between the positive and negative must be correct to avoid product damage.

Specification

Warranty

Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase. This warranty does not apply to any of our products that have been repaired or altered by unauthorized persons in any way or purchased from unauthorized distributors so as, in our sole judgment, to injure their stability or reliability, or which have been subject to misuse, abuse, misapplication, negligence, accident or which have had the serial numbers altered, defaced, or removed. Accessories, including batteries, are not covered by this warranty
