Operation manual
Digital modified sine wave inverter
Before installing the product, read this manual thoroughly to install and use safely.
Test reports for each model are included (3page).
AIMS Power
Operation manual procedure
Product features
- Product Configuration: It is a cutting-edge device configured with original technologies of circuit operation and connection parts with various patents and licences.
- High stability with 95% maximum efficiency (DC 24V) and 85% of max output efficiency.
- Highly competitive Prices: parallel output operation by original technology.
- Main feature: Smart auto-protect controlled by software, High-efficiency power by a parallel output circuit, Auto input (DC)/output (AC) control circuits, Auto surge output control by output(AC) sensor
Specifications for each model
| NO. | PARAMETER | PWRIG500012W (12Vdc∼120Vac) | PWRIG700024W (24Vdc∼120Vac) | PWRIG700048W (48Vdc∼120Vac) | PWRIG700024024 (24Vdc∼24OVac) | PWRIG700024048 (48Vdc∼240Vad | LIMIT | ||
| 1 | DC input voltage | 12V | 24V | 48V | 24V | 48V | DC120V∼16.8VDC21.0V∼ 30.0VDC420V∼80.0V | ||
| 2 | DC input voltage Standard | 13.4V | 26.8V | 53.0V | 26.8V | 53.0V | DC13.4V±15% DC26.8V±5% | ||
| 3 | Output voltage no load | AC120V | AC120V | AC120V | AC245V | AC245V | AC120V±5% AC245V±5% | ||
| 4 | Max output power | 5000W | 7000W | ±10% | |||||
| 5 | Output power continuous | 3600W | 5600W | 5300W | 5600W | 5300W | ±5% | ||
| 6 | Surge rating | 10KW | 14KW | ±10% | |||||
| 7 | Efficiency et rated power | 89% | 91% | ±3% | |||||
| 8 | Efficiency et max power | 83% | 88% | 87% | 88% | 87% | ±3% | ||
| 9 | THD [max] | 25% | MAX | ||||||
| 10 | No load current | no fan | 0.58A | 0.60A | 0.30A | 0.60A | 0.18A | ±0.1A | |
| on fan | 1.74A | 1.10A | 0.66A | 1.30A | 0.66A | ||||
| 11 | Low battery shut down | 10.0V | 20.0V | 40.0V | 20.0V | 40.0V | DC10.0V±0.5V DC20.0V±1.0V DC40.0V±-1.0V | ||
| 12 | Low battery return on power | 11.2V | 22.0V | 44.0V | 22.0V | 44.0V | DC11.2V±0.5V DC22.0V±1.0V DC44.0V±1.0V | ||
| 13 | High battery shut down | 17.0V | 31.0V | 60.8V | 31.0V | 60.8V | DC17.0V±1.0V DC31.0V±1.5V DC60.8V±1.5V | ||
| 14 | High battery return on power | 15.0V | 28.0V | 56.0V | 28.0V | 56.0V | DC15.0V±0.8V DC28.0V±1.5V DC56.0V±1.0V | ||
| 15 | Frequency selection [150hz/60hz] | 60hz (50hz/60hz select switch) | ±0.8hz | ||||||
| 16 | Regulation | Max ±10% | ±10% | ||||||
| 17 | Over-temperature protection | -25°C∼+76°C | 80°C ±°C | ||||||
| 18 | Over-temperature power on | 58°C | 60°C±5°C | ||||||
| 19 | Output waveform | Modified sine wave | |||||||
| 20 | Cooling fan [auto tan] | Fan on temperature 41°C(±5°C) | ±5°C | ||||||
| 21 | Insulation transformer tester (withstand voltage) | 2KV∼2.5KV | ±0.5KV | ||||||
| 22 | Overload protection | input sensor | 100A | PL cable type | |||||
| input fuse | 40A(12EA) 40A(8EA) 40A(4EA) 40A(8EA) 40A(4EA) | Car fuse type | |||||||
| output sensor | 50A(Sensor) | Terminal type | |||||||
| output circuit breaker | 60AH(DCP-81-BH) 75AH(DCP-BH) | 35AH(DCP-PR) | SS-001 DCP-BH(PR) | ||||||
15A(SS-001) | |||||||||
| AC outlet/terminal | 2P Outlet 15A / 3P-(2050A Terminal | 1P Outlet 30A / 3P-30A Terminal | Output socket terminal | ||||||
| 23 | Dimensions (DxHxW) | Inch | 8.85×6.06×16.53 | 8.85×6.06×21.26 | 8.85×6.06×18.50 | ||||
| mm | 225x154x420 | 225x154x540 | 225x154x470 | ||||||
| Weight | lb | 16.761b | 22.051b | 18.741b | ±0.44Ib | ||||
| kg | 7.6Kq | 10.0Kq | 8.5Kq | ±200g | |||||
Product in use
♦Specially equipped vehicles ♦Construction Power ♦Generator replacement ♦Power Tools ♦Medium-term vehicle air-conditioning ♦Solar Energy ♦Refrigerator
♦Hammen drill ♦Motor pump ♦TV/Monitor ♦Compressors/Cutters ♦Welder(5KW or more) ♦ Other electric products
* Based on the models, the use might be different from the device.
** Specification of the product may change without notification for the improvement of performance.
DC12V, 2411, 48V Input(Battery) / Equipment(Output power) Connection

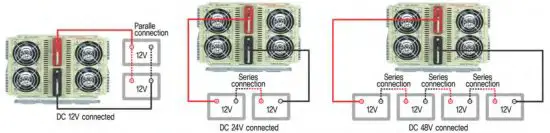

- Input connection diagram

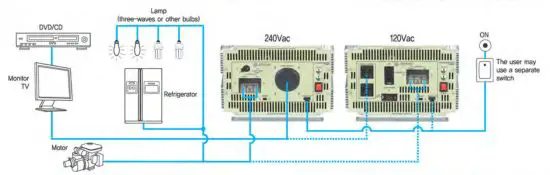

- Output connection diagram
Avoid installing this inverter in a sealed area, or an area with poor ventilation/excessive heat
This product contains battery connections and sparks can easily occur. To prevent fire or other accidents, do not install this inverter in a small or partitioned area with flammable materials. Wet or moist environments are fatal to this inverter. Special care shall be taken, keep the inverter out of direct sunlight.

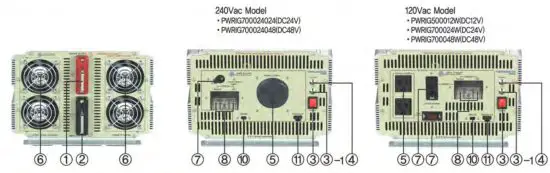

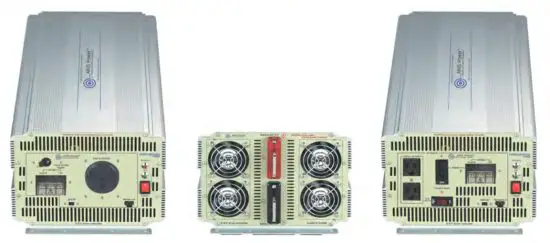

Function code / Use the function description
Use the function description
- DC input power
red terminal 12V/24V/48V
12V/24V/48V DC input power terminal. Connect the red cable to the terminal. Refer to the connection diagrams in the attached paper and according to order, connect the cables, Check red polarity and secure connection. This terminal should be clamped tightly to work without failure because this terminal generate high current and overheat.
* Even slight loosening between bolts and nuts in the terminal and the cable will generate heal and make a play. which leads to failure of the product or dramatically drains battery life.
1-1. Input power fuse inside the product
An internal input fuse is located atred wiring. It is for the safety reasons. Be careful when changing shorted fuses.
* As for the double layer model, loosen the screw from both panels and lift the upper panel lightly, and you can change a fuse.
* When you need to change fuses. consult an expert - DC input power
black terminal 12V/24V/48V
12V/24V/48V DC input power connection terminal. Connect the black cable to the terminal. Refer to the connection diagrams in the attached paper and according to order, connect the cables. Check red polarity and secure connection. This terminal should be clamped securely to work without failure because this connection terminal generates a high current and overheat Even slightly loosening between bolts and nuts in the terminal and the cable will generate heat and make a play, which leads to failure of the product or dramatically drains battery life. - Power switch
In the control circuit, DC input and AC output switches start simultaneously. The Power Switch turns the product on/off. Switch off when not in use.
* This switch is the only power switch on the inverter.
3-1. Power LED
This LED always light up when the power switch is on or this inverter is in operation. - Warning LED
Overheating or exceeding maximum capacity will shut down the product to protect and operation will be restored when the state is stabled and normalized. Before the shutdown, a buzz noise will warn you. When you hear the sound, turn off the power switch, and then 3 or 4 minute later, turn on the switchback. If the product works properly, it is in normal condition. If the product sounds alarm, sent the product to our company ? warranty service center to check.
* Funclions of warning lamp (red LED)
A Low battery B. High battery C. Over temperature ‘protection, D. Over load LED E Surge protection F. Output shod light
As for the warning LED operation to stop each (unction, refer to cautions on the page 7. - 120Vac/240Vac 60hz/50hz power outlet
It is 120Vac/240Vac AC power outlet. It can be connected to devices needed 15A to 30A (according to models), and 4500W or less.
* Capacity (current) on the product greater than the indicated one will deform the outlet - Automatic fan operation
When the internal temperature increases (40 to 48°C), ventilation automatically starts until cooling down to under 40°C. The direction of ventilation could be different according to model. - Output protection switch (circuit braker switch)
Dramatic change and overload on output power outlet or terminal make the circuit breaker cause shutdown. When you turn the switch on under the normal conditions of input power, the output is turned off again, Check it it is overpowering or failure. - Output power terminal
The outlet use around 4kw output. Devices using over 4kw such as a welder or a motor compressor should not use this terminal (3pin). Consult an expert for wiring.

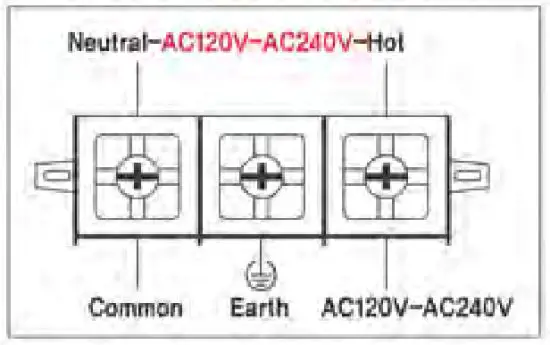

* For the connection to this terminal (3pin), refer to the figure on the left.
* Neutral and common terminals share the same line on AC in the circuit.
*Caution: Don I connect to the earth terminal.
- Ground terminal
The whole case is grounded. This can be used to ground other devices or equipment.
* 3p terminal earth is the same wIth the ground terminal. You can use either of them. - Output frequency (60Hz 4-50Hz) select switch
* To change irequency_, tune the switch to the frequency you want and turn it off. Wait until the power lamp light is completely out.
Turn on the power. The product will work at the desired frequency. - Auxiliary power switch outlet (remote power switch connector)
If you want to turn the power switch on/off more than 1m to 2m away from the product, or if you have difficulty in using the switch in the spot where the product was installed, use the included wiring to connect another power switch. The auxiliary power switch can be used only when the power of the product is turned off.
red terminal 12V/24V/48V
black terminal 12V/24V/48V
Caution
Check below items before the repair report
Problems | Possible causes and checkpoints | Solution |
| 1. Low output voltage: red LED-lit | The device connected to the inverter uses the exceeding capacity of the output and causes overload. (Check if it is overload) |
|
| 2. No output voltage even when connected to small power devices | To check charging status To check battery life span To check the cable |
|
| 3. Red LED lit and overload buzzer | To check the device connected to the inverter output. To check the consumption power of the device. |
|
| 4. Input fuse open and circuit breaker shut down and sensor shutdown | To check wiring To check the device connected to the inverter |
|
| 5. High output voltage dramatically increases output | To check if the battery is 12V or 24V or 48V |
|
Genaral problem
Noise from audio systems: general audio system or related equipment can generate noise signals when the inverter is in operation. II is caused by current at the device interference with the one through the inverter.
TV interference: operation of the power inverter can interfere with television reception on some channels.
- Audio equipment, TV, RF transmitter, should be installed 1.5m away from the inverter.
- Check your system is grounded well at the inverter ground terminal.
Warranty
If the inverter still does not function correctly after troubleshooting. Please contact AIMS power tech support at Techsupportgaimscorp.net (775) 359-6703 ex227
For additional products such as :
- Modified sine wave inverters
- Low-frequency pure sine wave inverters
- Pure sine wave inverters
- Solar charge controllers
- Grid-tie inverters
- Inverter chargers
- Automatic transfer switches
- Customer sized cables
- Batteries
- Solar panels
AIMS Operating Corp. Inc. Aims Power warranty instructions.
This product is designed and is under very strict quality control and testing guidelines. If however you feel this product is not performing as it should, please contact us: Techsupport(toimscorp.net or (775) 359-6703 ex227.
We will do our best to resolve any of your concerns. If the product needs repair or replacement make sure to keep your receipt/invoice, as that will need to be sent back along with the package and RMA# to AIMS Power. You have a hill I year warranty from the date of purchase. This warranty is valid worldwide with the exception that freight and duty charges incurred outside the continuous 48 States. User is responsible for return shipping. Except as provided above, AIMS makes no warranty of any kind, express or implied. including without limitation the implied warranties of merchantability and fitness for a particular purpose. In no event shall AIMS be liable for indirect, special or consequential damages. This warranty only applies to AIMS Power branded products. All other name brand products are warranted by and according to their respective manufacturer. Please do not attempt to return non-AIMS Power branded products to AIMS Power.
