Temank
3000W Solar Inverter Pure Sine
Wave 24V 120V Off-Grid Power Inverter
Instruction Manual
3000W Solar Inverter Pure Sine Wave 24V 120V Off-Grid Power Inverter

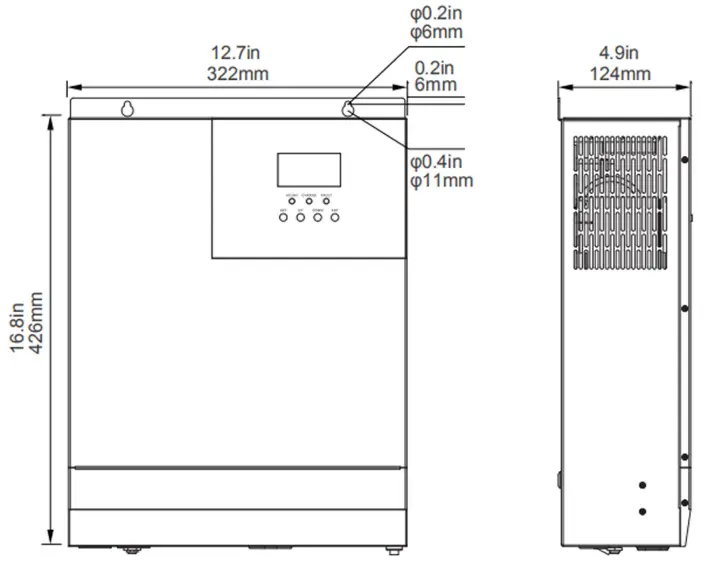

- Dimensions

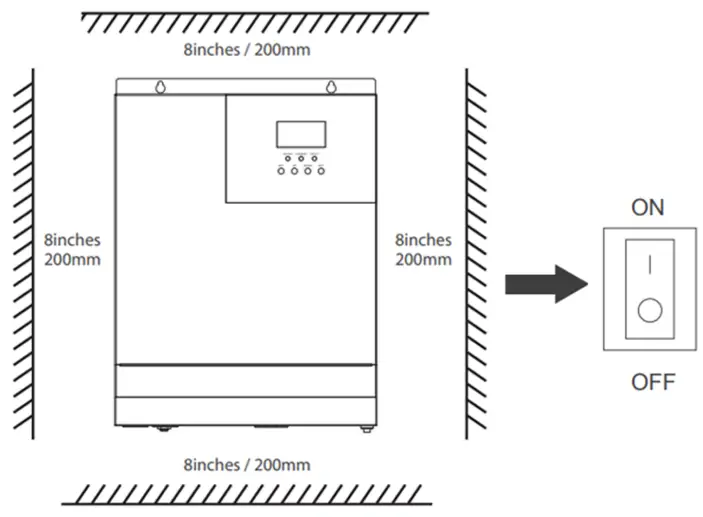

- Make sure the solar inverter main power is turn OFF!

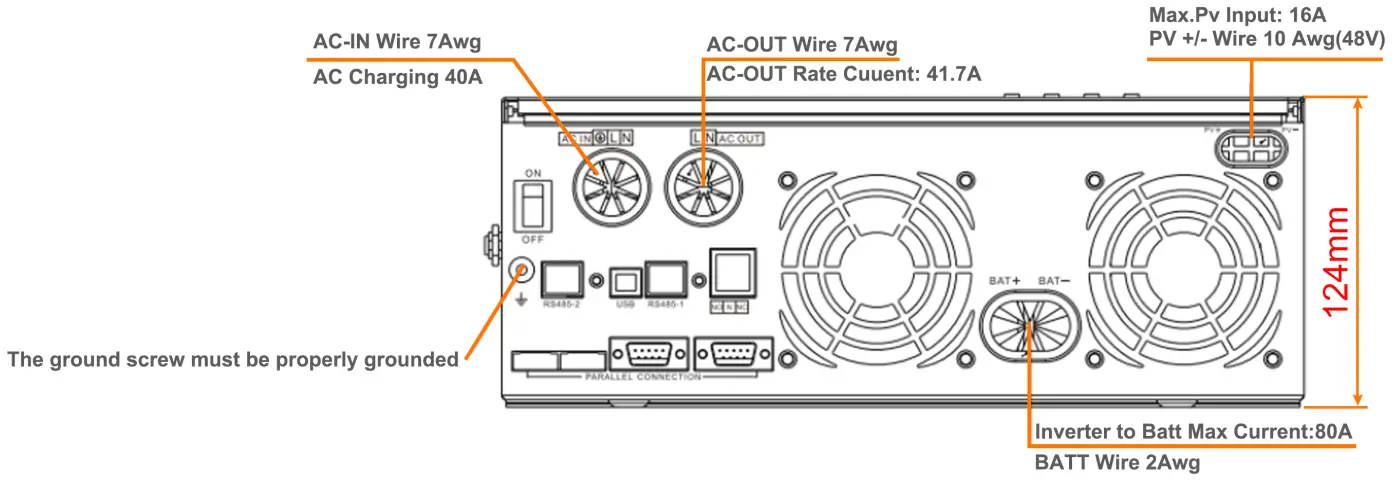

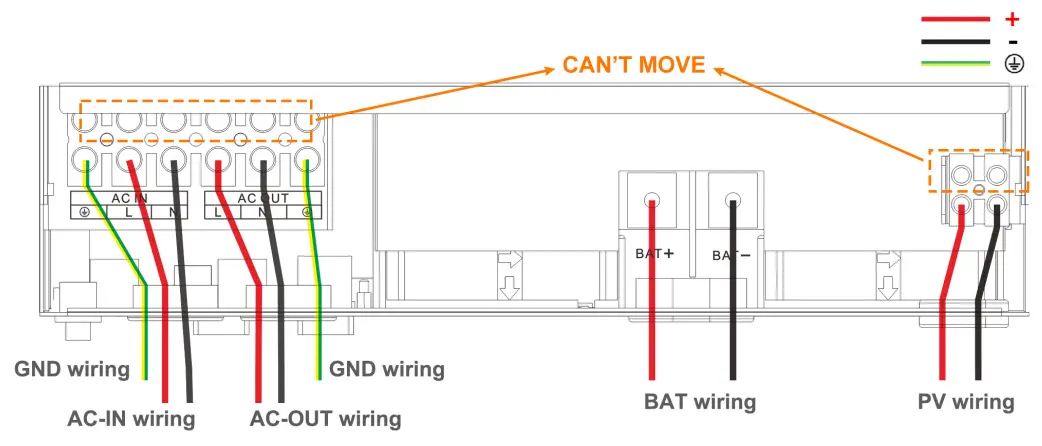

- Wiring instructions, Battery and PV lines and AC output lines and AC IN lines and GND lines, according to the picture instructions to choose the color of the line; Operate the correct wiring position according to the picture
- Use wire models according to picture requirements

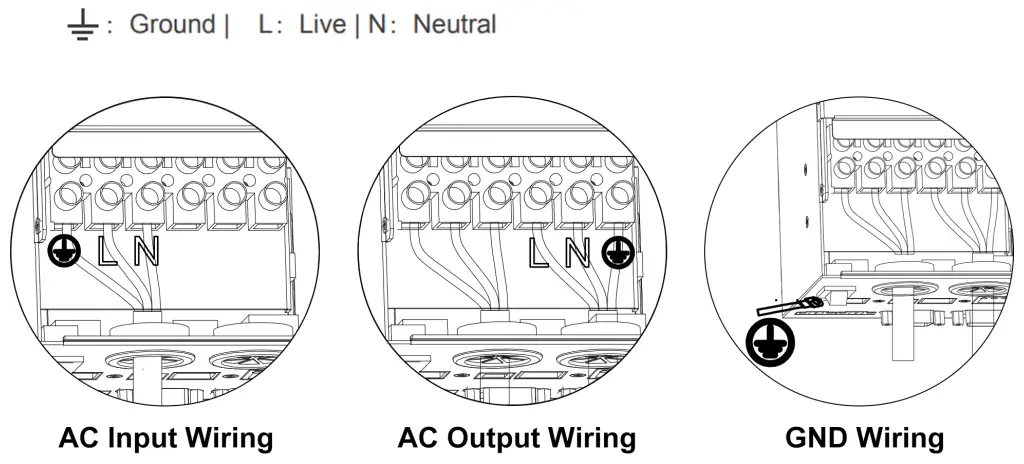

- Connection diagram of AC ground wire
NOTE
- Make sure any circuit breakers are disconnected and ensure the unit is in the off position.
- For PV to charge 48V battery banks, you will need a minimum PV voltage of 120VDC.
- Connection order: connect with battery first, then solar panels, when everything done, you need to press “OFF/ON” button.
- Setting item voltage value: (123 < 104] < (14]
