Marine 8803LP2 3-Gal Gas Tank 2011 Epa/carb
FUEL

Contents hide

Portable Fuel Tanks

EPA Certified / CARB Approved

EPA Certified multi-layer tank with industry leading fuel flow performance.
Designed around the EPA and California Air Resources Board (CARB) regulations.

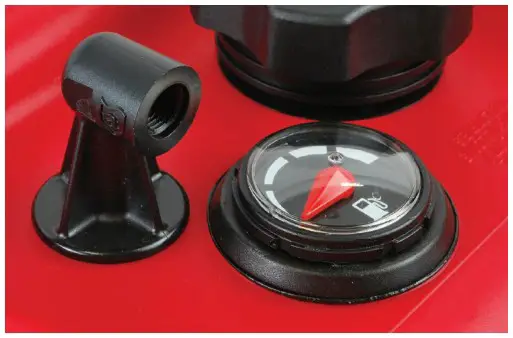

Features an ergonomic design, an optional gauge and a tethered self sealing cap with audible click.

Automatic Vacuum Valve ensures proper fuel flow and eliminates the need for manual vent and operator adjustment
Low-permeation tank virtually eliminates fuel evaporation and fuel loss
Compatible with 1/4″ NPT fuel fittings
Ethanol and alcohol compatible
EPA & CARB Certified

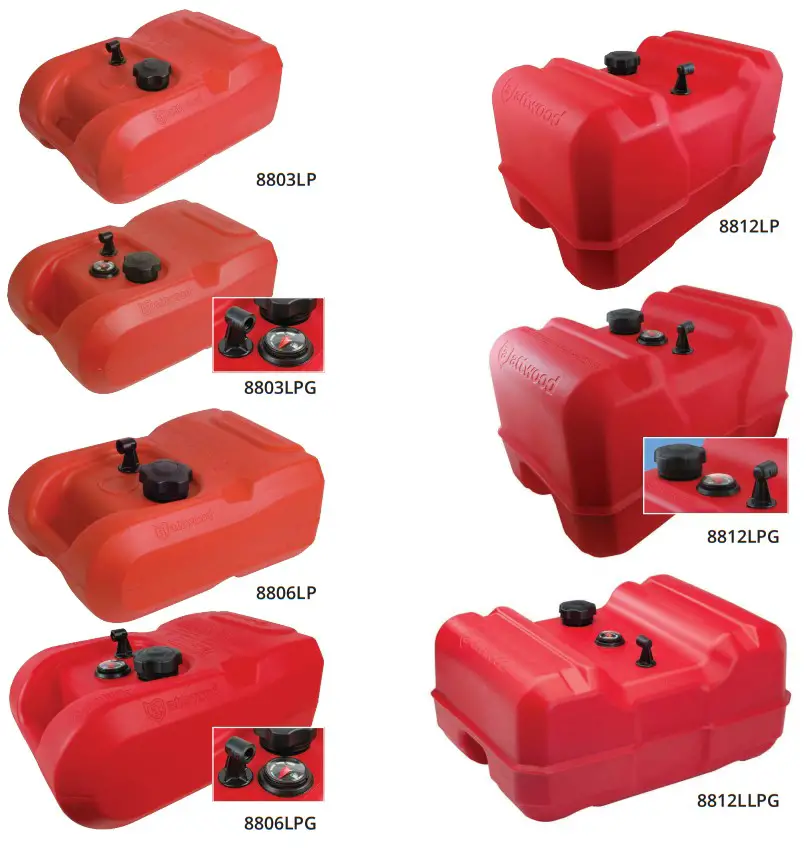

3-Gallon Fuel Tanks
EPA/CARB COMPLIANT 3-gallon fuel tank is perfect for use with small outboards.

Description	Dimensions Length – Width – Height	Part #
3-gallon, without gauge	16.6″ x 11.45″ x 7.3″	8803LP2
3-gallon, with gauge	16.6″ x 11.45″ x 7.3″	8803LPG2
3-gallon, without gauge, single-pack	16.6″ x 11.45″ x 7.3″	8803LP2S
3-gallon, with gauge, single-pack	16.6″ x 11.45″ x 7.3″	8803LPG2S

6-Gallon Fuel Tanks
EPA/CARB COMPLIANT 6-gallon fuel tank adapts to virtually any outboard engine.

Description	Dimensions Length – Width – Height	Part #
6-gallon, without gauge	19.82″ x 13.50″ x 9.16″	8806LP2
6-gallon, with gauge	19.82″ x 13.50″ x 9.16″	8806LPG2
6-gallon, without gauge, single-pack	19.82″ x 13.50″ x 9.16″	8806LP2S
6-gallon, with gauge, single-pack	19.82″ x 13.50″ x 9.16″	8806LPG2S

12-Gallon Fuel Tanks
EPA/CARB COMPLIANT 12-gallon fuel tank is ideal for pontoon boats where more fuel capacity is needed.

Description	Dimensions Length – Width – Height	Part #
12-gallon, without gauge	22.75″ x 14.25″ x 14.47″	8812LP2
12-gallon, with gauge	22.75″ x 14.25″ x 14.47″	8812LPG2
12-gallon, low-profile, without gauge*	24.00″ x 18.00″ x 11.61″	8812LLP2
12-gallon, low-profile, with gauge*	24.00″ x 18.00″ x 11.61″	8812LLPG2
