Marine 99DFPVAB1S Deck Fill f/Pressure Relief Systems
FUEL
Deck Fills for Pressure Relief Systems
EPA Certified / CARB Approved
- Essential component of Vapor Tec and Secure Stop
- Dual 1 psi diurnal emission control overpressure relief safety valves
- Triple high-flow vacuum valves ensure maximum make-up air flow with minimum vacuum restriction
- Designed and tested to prevent water from entering the fuel system
- Automatic nozzle shutoff 4–18 gpm
- Hinged audible click cap meets EPA requirements
- Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards
- Designed and tested to prevent water from entering the fuel system
- Compatible with Ethanol blended fuels
- Fits 1-1/2″ fill hose and 5/8″ vent hose

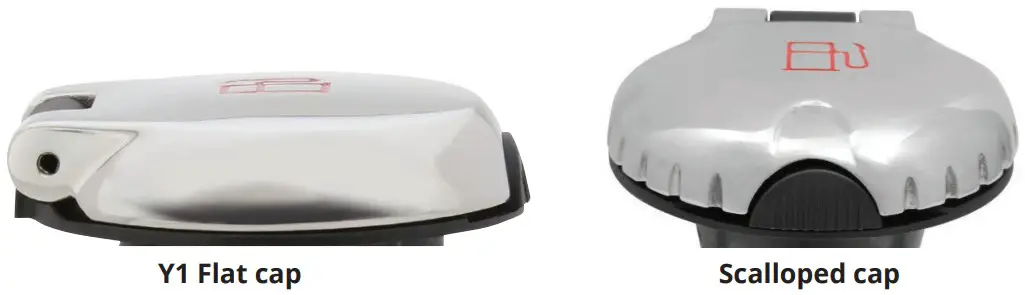

| Description | Body | Cap Material | Cap Design | OEM Part # |
| Deck fill for Pressure Relief System | Straight | Black Plastic | Scalloped | 99DFPVSB1 |

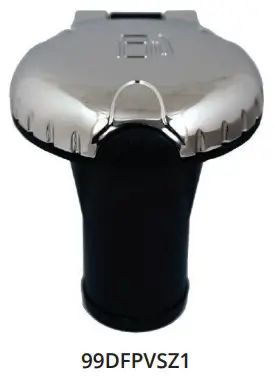

| Chrome | Scalloped | 99DFPVSZ1 | ||
| Stainless Steel | Scalloped | 99DFPVSS1 | ||
| Stainless Steel | Y1 Flat | 99DFPVSSY1-1 | ||
| Angled | Black Plastic | Scalloped | 99DFPVAB1 | |
| Chrome | Scalloped | 99DFPVAZ1 | ||
| Stainless Steel | Scalloped | 99DFPVAS1 | ||

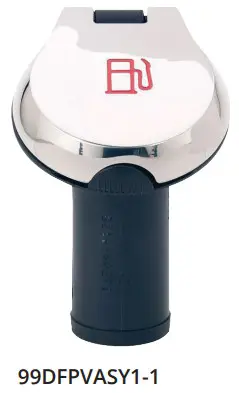

| Stainless Steel | Y1 Flat | 99DFPVASY1-1 |
 |  |

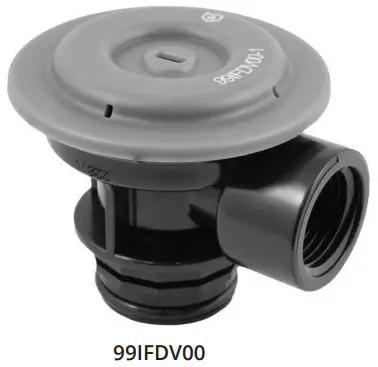

Fuel Demand Valve
The integrated fuel demand valve, used in conjunction with integrated fuel systems eliminates pressurized fuel from reaching fuel distribution lines and your engine and ensures that fuel is provided to the engine on demand rather than as a result of pressure in the tank.
Additional features include:
- Compatible with Ethanol blended fuels
- Eliminates the need for rigid fuel distribution lines in pressure relief systems (per ABYC H-24.15.9)
Specifications
| Operating Temp | Storage Temp | Operating Input Pressure | Flow Performance | Manual Override |
| -20˚C to 80˚C (-4˚F to 176˚F) | -40˚C to 80˚C (-40˚F to 176˚F) | 138 kPa (20 psi) protected for 276 kPa (40 psi) psi pressure spike | 200 L/H (53 GPH) at <2 kPa* | Yes |
*Flow performance of 99IFDV00-1 with 1/2″ Pick up tube and 99DVB02-1 Barb. Other factors such as fuel lift height, anti-siphon valve, fuel hose diameter and length and fuel filter will effect overall flow performance to engine.
| Description | OEM Part # | Part # |
| Integrated Fuel Demand Valve (IFDV) | 99IFDV00-1 | — |
| Base for Aluminum Tank | 99DVA02-1 | — |
| Pick-Up Tube Barb with O-Ring 3/8″ | 99DVB01-1 | — |
| Pick-Up Tube Barb with O-Ring 1/2″ | 99DVB02-1 | — |
| IFDV Installation Clip | 99DVC01-1 | — |
| IFDV Plug Cap with Seal | 99DVP03-1 | — |
| Heat Shield | 99IFDVHS1 | — |
| Single Flange Base for Plastic Tank | 99DVP05-1 | — |
