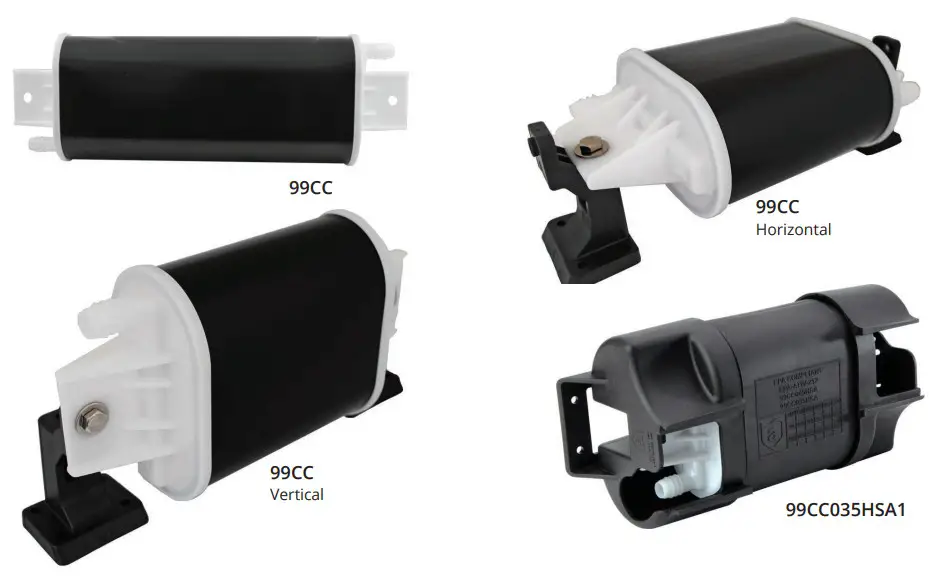

Marine 99CC085-1S Line Carbon Canister For Standard Brackets
FUEL
User Guide
Carbon Canisters
EPA Certified / CARB Approved
- Fits 5/8″ vent hose
- Can be mounted in any orientation using brackets provided
- Compatible with Ethanol blended fuels
- Low permeation shell reduces overall system emissions
- Carbon Canister for Engine Compartment models feature a pre-installed composite heat-shield for easy installation
| EPA Rating | CARB Rating | ||||||
| Description | Trailerable Vessel Capacity | Non-Trailerable Vessel Capacity | Trailerable Vessel Capacity | Non-Trailerable Vessel Capacity | L x W x H | OEM Part # | Part # |
| Sub Compact | |||||||
| Brackets OEM Installed | 28 Gal. | 44 Gal. | 22.4 Gal. | 44 Gal. | 11.6″ x 5.04″ x 4.01″ | 99CC035-1 | — |
| Carbon Canister for Engine Compartment | 28 Gal. | 44 Gal. | 22.4 Gal. | 44 Gal. | 11.68″ x 4.08″ x 5.68″ | 99CC035HSA1 | — |
| Compact | |||||||
| Brackets OEM Installed | 70 Gal. | 110 Gal. | 56 Gal. | 110 Gal. | Refer to Horizontal/Vertical | 99CC045-1 | 99CC045-1S |
| Brackets Pre-installed Horizontal Orientation | 70 Gal. | 110 Gal. | 56 Gal. | 110 Gal. | 11.6″ x 5.04″ x 4.01″ | 99CC045H1 | — |
| Brackets Pre-installed Vertical Orientation | 70 Gal. | 110 Gal. | 56 Gal. | 110 Gal. | 10.48″ x 3.05″ x 5.50″ | 99CC045V1 | — |
| Carbon Canister for Engine Compartment | 70 Gal. | 110 Gal. | 56 Gal. | 110 Gal. | 11.68″ x 4.08″ x 5.68″ | 99CC045HSA1 | — |
| Standard | |||||||
| Brackets OEM Installed | 220 Gal. | 350 Gal. | 176 Gal. | 350 Gal. | Refer to Horizontal/Vertical | 99CC085-1 | 99CC085-1S |
| Brackets Pre-installed Horizontal Orientation | 220 Gal. | 350 Gal. | 176 Gal. | 350 Gal. | 17.22″ x 5.04″ x 4.01″ | 99CC085H1 | — |
| Carbon Canister for Engine Compartment | 220 Gal. | 350 Gal. | 176 Gal. | 350 Gal. | 17.74″ x 4.08″ x 5.68″ | 99CC085HSA1 | 99CC085HSA1S |
| Large Vessel | |||||||
| Brackets OEM Installed | 420 Gal. | 660 Gal. | *N/A | *N/A | Refer to Horizontal/Vertical | 99CC150-1 | 99CC150-1S |
* CARB allows use of 2 canisters assembled in series to match/exceed needed capacity. Contact Attwood Customer Service for more information.
attwoodmarine.com
