Hardware Quick Reference
LANCOM 1900EF

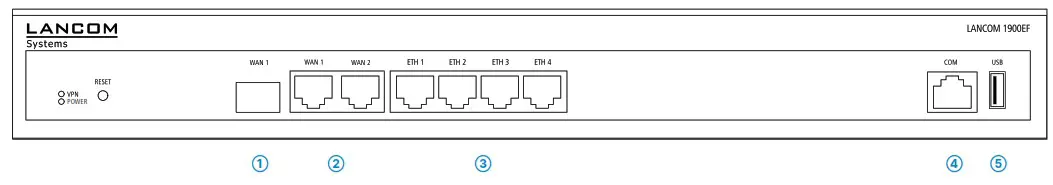

Mounting & connecting
➀ WAN 1 interfaces (SFP / TP combo port)
Insert a suitable SFP module (e.g. 1000Base-SX or 1000Base-LX) into the SFP port. Choose a cable compatible with the SFP module and connect it as
described in the module’s documentation. SFP module and cable are not included.
If desired, alternatively connect the WAN 1 TP interface to a WAN modem using the provided Ethernet cable with green connectors.
➁ WAN 2 interface (TP)
Connect the WAN 2 interface to a WAN modem using the provided Ethernet cable with green connectors.
➂ Ethernet interface
Use the cable with the kiwi-colored connectors to connect one of the interfaces ETH 1 to ETH 4 to your PC or a LAN switch.
➃ Configuration interface

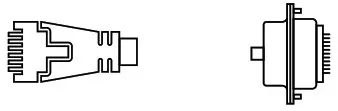

To configure the device via the serial interface, a serial configuration cable is required (available as an accessory).
➄ USB interface
You can use the USB interface to connect a USB printer or a USB storage device.

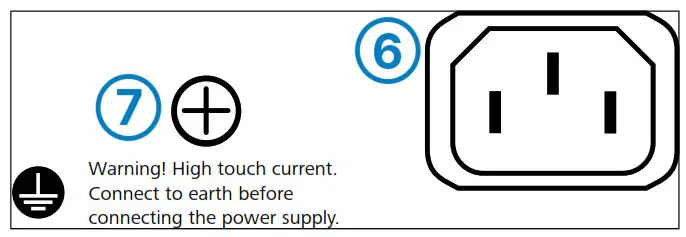

➅ Power connector and grounding point (device back side)
➆ Supply power to the device via the power connector. Please use the IEC power cable supplied (separately available for WW devices).
ATTENTION: High touch current possible! Connect to earth before connecting the power supply.
Before initial startup, please make sure to take notice of the information regarding the intended use in the enclosed installation guide!
Operate the device only with a professionally installed power supply at a nearby power socket that is freely accessible at all times.
Please observe the following when setting up the device
- The mains plug of the device must be freely accessible.
- For devices to be operated on the desktop, please attach the adhesive rubber footpads
- Do not rest any objects on top of the device and do not stack multiple devices
- Keep all ventilation slots of the device clear of obstruction
- Mount the device into a 19” unit in a server cabinet using the provided screws and mounting brackets. Pay attention to the “R” and “L” marks on the brackets for accurate mounting.

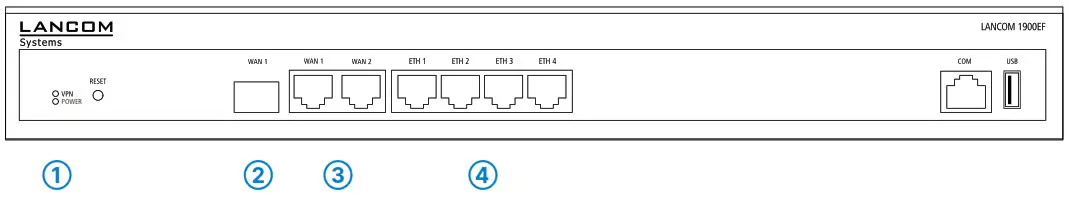

LED description & technical details
➀ VPN / POWER
| VPN Off | VPN connection inactive |
| Green, permanently | VPN connection active |
| Green, flashing | VPN connecting |
| POWER Off | Device switched off |
| Green, permanently* | Device operational, resp. device paired / claimed and LANCOM Management Cloud (LMC) accessible |
| Green / red, blinking | No password set. Without a password the configuration data in the device is unprotected. |
| Red, blinking | Charge or time limit reached |
| 1x green inverse blinking* | Connection to the LMC active, pairing OK, device not claimed |
| 2x green inverse blinking* | Pairing error, resp. LMC activation code not available |
| 3x green inverse blinking* | LMC not reachable resp. communication error |
➁ RESET
| Reset button | short press > Restart the device long press > Reset the device |
➂ WAN 1 / WAN 2
| Green, orange off | No networking device connected |
| Green, permanently | Connection to network device operational, no data traffic |
| Green, flickering | Data transmission |
| Orange off | 1000 Mbps |
| Orange, permanently | 10 / 100 Mbps |
➃ ETH 1 – ETH 4
| Green, orange off | No networking device connected |
| Green, permanently | Connection to network device operational, no data traffic |
| Green, flickering | Data transmission |
| Orange off Orange, permanently | 1000 Mbps 10 / 100 Mbps |
| Hardware | |
| Power supply | Internal power supply unit (100-240 V, 50-60 Hz) |
| Power consumption | Max. 18 W |
| Environment | Temperature range 0-40 °C, humidity 0-95 %; non-condensing |
| Housing | Robust metal housing, 1 HU with mounting brackets for 19″ installation, 345 x 44 x 253 mm (W x H x D) |
| Number of fans | None; fanless design, no rotating parts, high MTBF |
| Interfaces | |
| WAN 1 / WAN 2 | WAN 1 SFP: Compatible with optional LANCOM SFP modules. Set as a WAN port ex-factory, can be configured as a LAN port. WAN 1 / WAN 2 TP: 10 / 100 / 1000 Base-TX, autosensing full duplex (WAN 1) / autosensing (WAN 2). auto node hub |
| ETH1 – ETH 4 | 4 individual ports, 10 / 100 / 1000 Mbps Gigabit Ethernet, by default set to switch mode. Up to 3 ports can be operated as additional WAN ports. Ethernet ports can be electrically disabled in the LCOS configuration. |
| Confiq (Com) / V.24 | Serial configuration interface / COM-port: 9,600 – 115,200 baud |
| USB | USB 2.0 hi-speed host port for connecting USB printers (USB print server), serial devices (COM-port server) or USB drives (FAT file system) |
| WAN protocols | |
| Ethernet | PPPoE, Multi-PPPoE, ML-PPP, PPTP (PAC or PNS) and IPoE (with or without DHCP), RIP-1, RIP-2, VLAN, GRE, EoGRE, L2TPv2 (LAC or LNS), IPv6 over PPP (IPv6 and IPv4/1Pv6 dual stack session), IP(v6)oE (autoconfiguration, OHCPv6 or static) |
| Package content | |
| Cables | 1 Ethernet cable, 3 m (kiwi colored connectors); 1 Ethernet cable, 3 m (green connectors); 1 IEC Dower cord 230 V (not for WW devices) |
| Mounting brackets | Two 19″ brackets for rack mounting |
*) The additional power LED statuses are displayed in 5-seconds rotation if the device is configured to be managed by the LANCOM Management
Cloud.
Hereby, LANCOM Systems GmbH | Adenauerstrasse 20/B2 | D-52146 Wuerselen, declares that this device is in compliance with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU, and Regulation (EC) No. 1907/2006. The full text of the EU Declaration of Conformity is available at the following Internet address: www.lancom-systems.com/doc/
LANCOM, LANCOM Systems, LCOS, LANcommunity, and Hyper Integration are registered trademarks. All other names or descriptions used may be trademarks or registered trademarks of their owners. This document contains statements
relating to future products and their attributes. LANCOM Systems reserves the right to change these without notice. No liability for technical errors and/or omissions.
111654/0622
