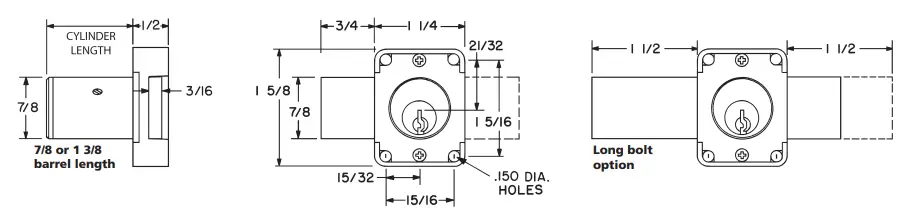

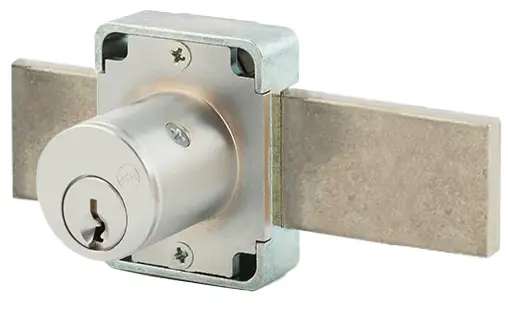

OLYMPUS 100B Deadbolt Cabinet Door Lock

INSTALLATION INSTRUCTIONS

Included Accessories:

• 2 nickel plated keys
• 56-1 bar strike
• 4 lock mounting screws

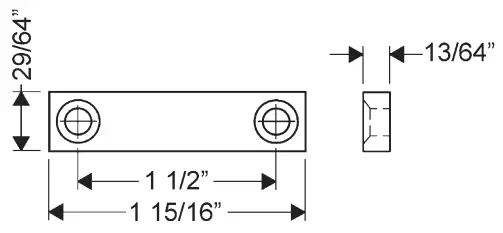

56-1 bar strike

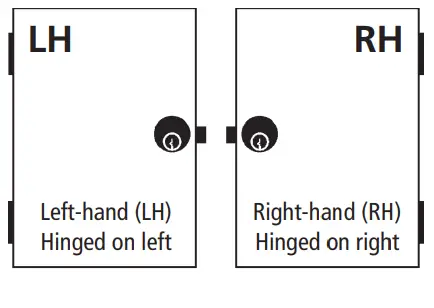

Installation/handing for key-retaining option

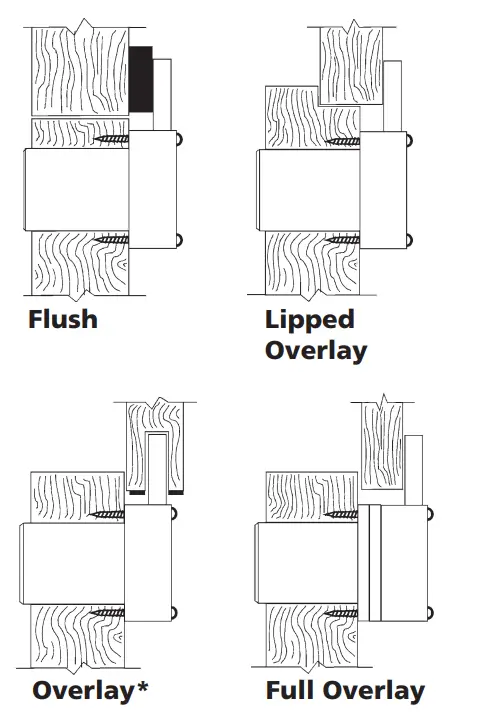

Typical Installation

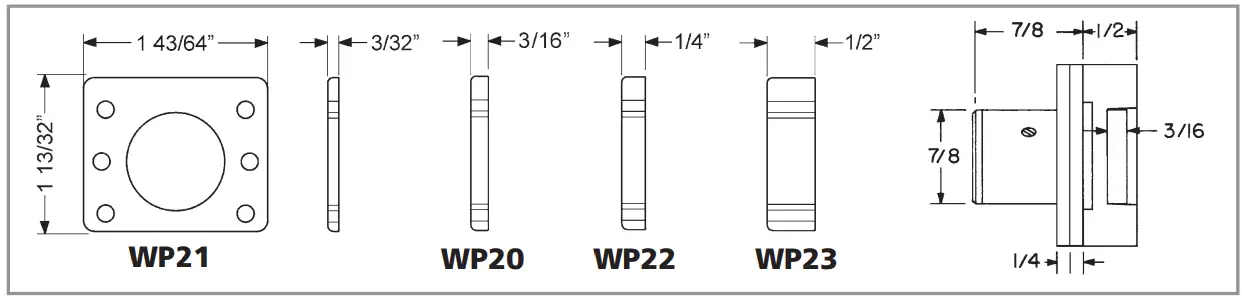

Optional spacers Note: use of spacers and strikes depends on application and material thickness.

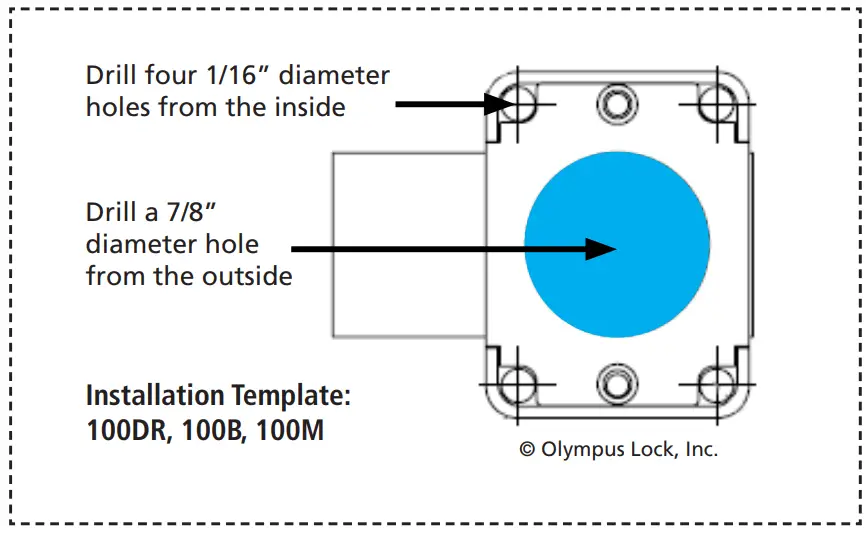

Drill Guide Cut out this handy drill guide for easy installation.
