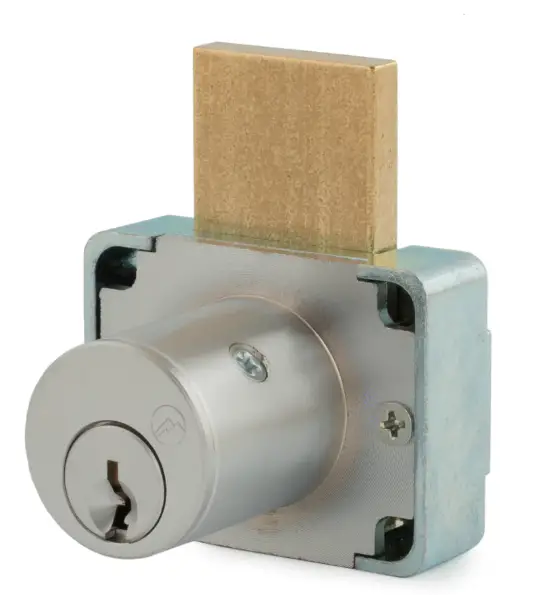

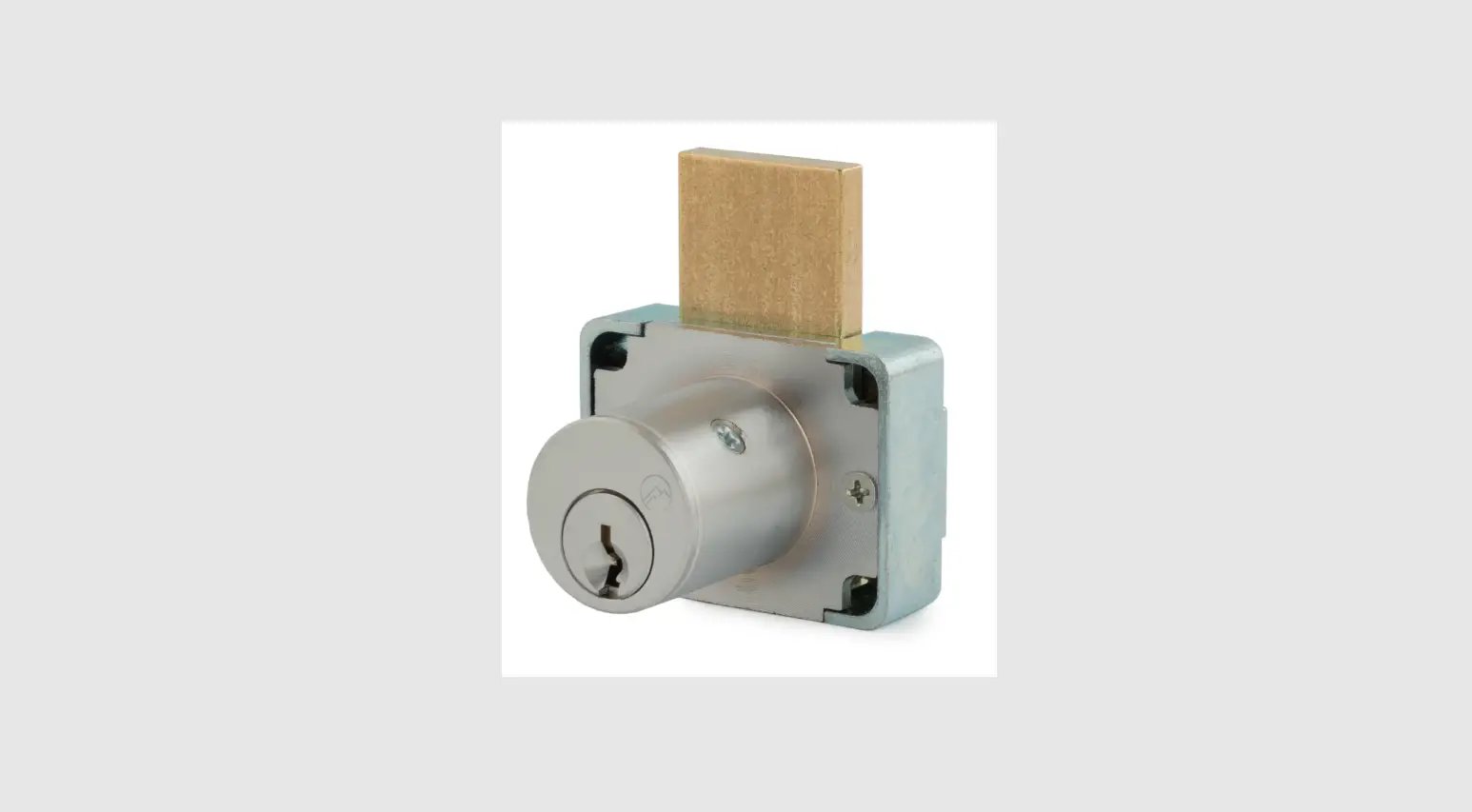

OLYMPUS LOCK 200B Deadbolt Drawer Lock

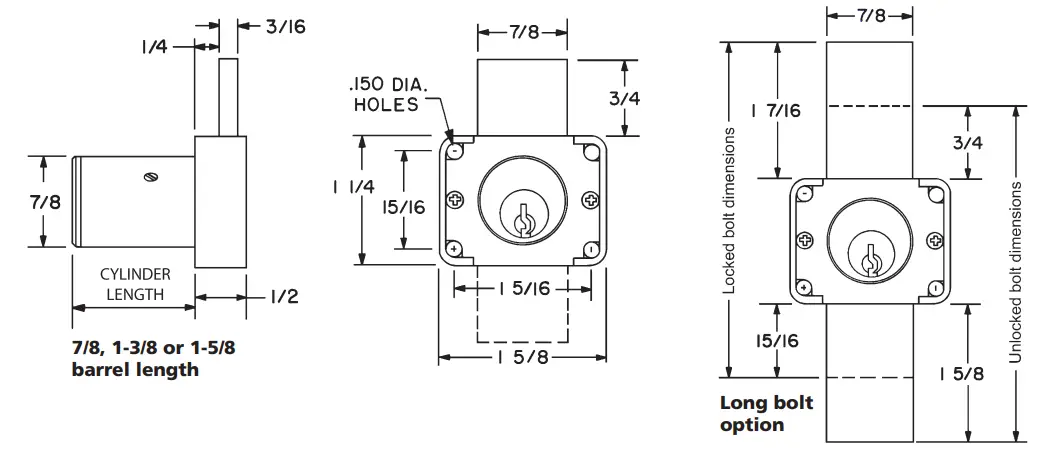

DIMENSIONS

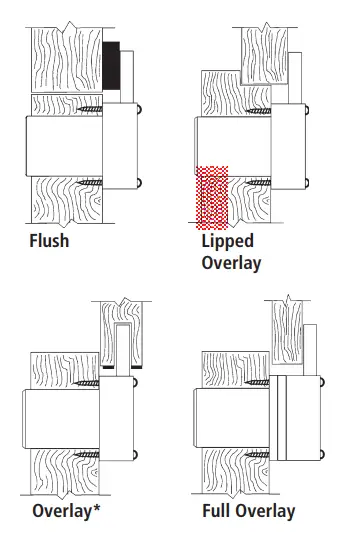

Typical Installation
Overlay installation is not recommended for particleboard.
Included Accessories
- 2 nickel-plated keys

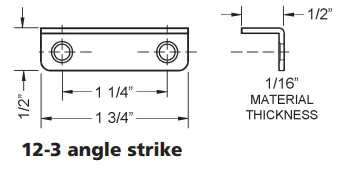

- 12-3 angle strike
- 4 lock mounting screws

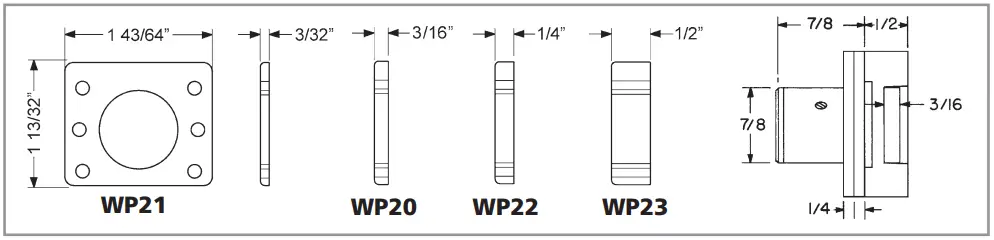

Optional spacers
Note:
use of spacers and strikes depends on application and material thickness

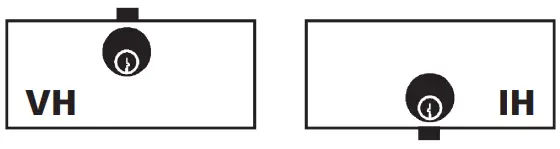

Installation/handing for key-retaining option

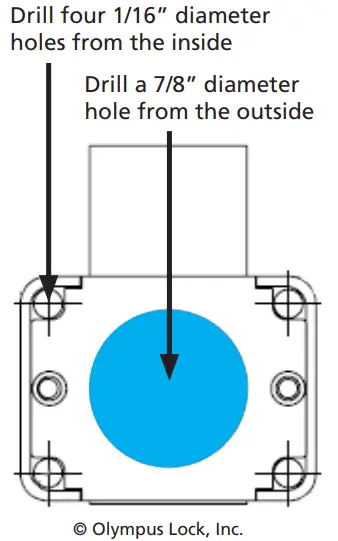

Drill Guide
Cut out this handy drill guide for easy installation.
Installation Template:
- 200DW
- 200B
- 200M
800-525-0954 | www.olympuslock.com | [email protected]
Olympus Lock, Inc. - The cabinet lock innovators.
