NESTFAIR Logo

CARE AND MAINTENANCE

Do not use acids or alkaline cleaning agents.Sharp objects will damage(scratch) the surface.Wipe the surface with a soft cloth(not be too wet).
NOTICE

  • Please make sure that you have all parts indicated before you begin assembly of this item
  • This item should be assembled on a soft surface to prevent scratching the finish during assembly

Hardware List

PIECEDESCRIPTIONPICTUREQUANTITY
AWirerope LockNESTFAIR MDR7721B Square Framed Hanging Wall - Icon2X
BShort Screw for Rope LockNESTFAIR MDR7721B Square Framed Hanging Wall - Icon 14X
CWireropeNESTFAIR MDR7721B Square Framed Hanging Wall - Icon 21X
DAnchorNESTFAIR MDR7721B Square Framed Hanging Wall - Icon 31X
ELong Screw for AnchorNESTFAIR MDR7721B Square Framed Hanging Wall - Icon 41X

PREPARATION

Before beginning assembly of product,make sure all parts are present.
If any part is missing or damaged,do not attempt to assemble the product.
Estimated Assembly Time:5 minutes.
Tools Required for Assembly:Pencil,Electric Drill,Hammer,Screwdriver
Step 1
Pass the wirerope (C) through a hole of the wirerope lock (A) and then through the product hook and through the other hole of the wirerope lock.And put the short screw(B) on the top and the bottom of the wirerope lock and tighten them by screwdriver. NESTFAIR MDR7721B Square Framed Hanging Wall - PREPARATION
Step 2
The installation of the wirerope(C) at the other end is the same as step 1.NESTFAIR MDR7721B Square Framed Hanging Wall - PREPARATION 1

Step 3
Determine the desired placement of the mirror on the wall.Mark the hanging point with a pencil.NESTFAIR MDR7721B Square Framed Hanging Wall - pencil

Step 4
Drill a 3/8 inch hole in the wall(No Hammer here)NESTFAIR MDR7721B Square Framed Hanging Wall - Drill

Step 5
Insert the anchor (D),and hammer it in the wall.NESTFAIR MDR7721B Square Framed Hanging Wall - anchor

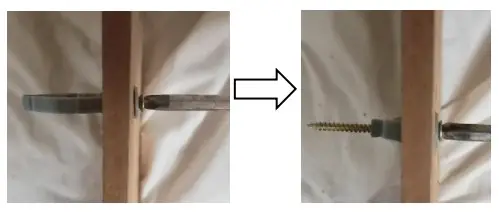

Step 6
Insert long Screw (E) into Anchor(D) and tighten the screw using screwdriver.NESTFAIR MDR7721B Square Framed Hanging Wall - anchor 1

Step 7
Turn a certain length of screw counterclockwise to hang the wirerope.

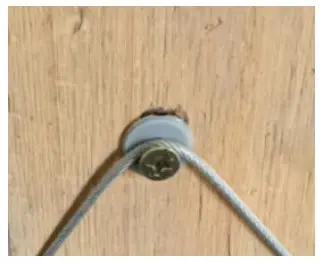

Step 8
Hang the wirerope.Complete!NESTFAIR MDR7721B Square Framed Hanging Wall - HangNESTFAIR Logo
