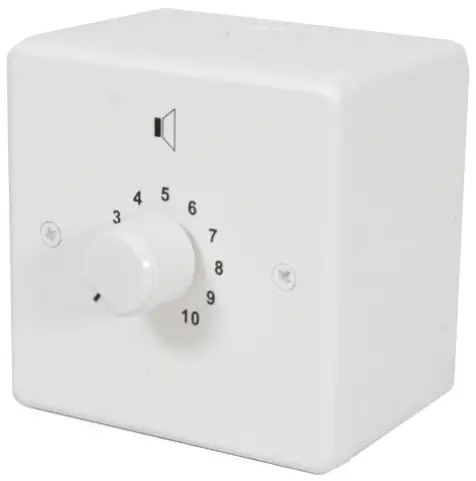

AUDAC VC4036 100V Volume Controller 36W Bticino
The VC4036 is a flush mount wall volume controllers for 100V PA installations. It is compatible with bTicino installation materials. The volume is adjustable with a rotatable dial in ten steps of 3 dB and the maximum power rating is 36 Watt. A builtin relay makes it possible to build priority circuits between several controllers. Available in Black (B) and White (W).
Applications
- Corporate spaces
- Residential
System specifications
- Max. Power 36 W
- RMS Power 36 W
- Max. operation Voltage 100 V
- Attenuation 9 x 3 dB
- Relay 24 V / 25 mA
Product Features
- Dimensions 43 x 43 x 60 mm (W x H x D)
- Weight 0.150 kg
- Construction ABS
- Mounting 43 x 43 mm (bTicino)
- Colours Black (RAL9005) (VC4036/B)
- White (RAL9010) (VC4036/W)
- Accessories Optional CP45CF1 Cover frame
- CP45CF2 Cover frame
Shipping & Ordering
- Packaging Cardboard box
- Shipping weight & volume 0.150 kg – 0.000259 Cbm
AUDAC – VC4036 – 16/08/2021 05:53 UTC We reserve the right to change specifications without notice, this is part of our policy to continually improve our products
