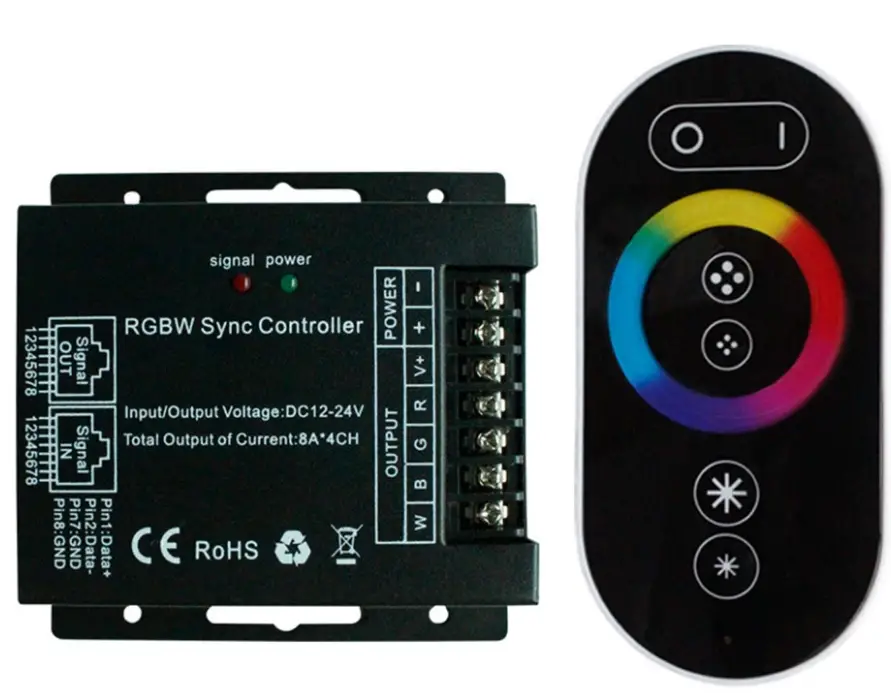

V-TAC 80133970 RGBW Controller
TECHNICAL DATA
| SKU | 3326 |
| Supply Voltage | DC: 12-24V |
| Stac Power Consumption | <1W |
| Output current | <2A (Each Channel) |
| Output power | 12V<96W, 24V<192W |
INTRODUCTION & WARRANTY
Thank you for selecting and buying the V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other queries, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at their best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours of Daily operation. Usage of the product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.
WARNING
- Please make sure to turn off the power before starting the installation.
- Installation must be performed by a certified person.
This marking indicates that this product should not be disposed of with other household wastes.
Caution, risk of electric shock.
PRODUCT DESCRIPTION
The RGB+W/WW controller is divided into two parts, RGB and W/WW. it can be turned ON/OFF RGB part and W/WW part independently and can control their brightness and their color independently, such as, when turning on the RGB part, it can change the RGB part’s color and brightness; and can turn on the W/WW part at the same time, and can turn ON/OFF W/WW part or adjust its brightness.
DIRECTION OF USE
- Connect the load cord first, and then connect the power cord; Before power on please ensure no short circuit between the cables;
- Using the 40-key infrared remote control, the key function is as follows:
THE KEYS FUNCTION ARE AS BELOW
| Brightness rise | Brightness fall | OFF | ON |
| Static red | Static green | Static blue | Static white |
| Static orange | Static light green | Static dark blue | Static milk white |
| Static dark yellow | Static cyan | Static Lyons blue | Static white pink |
| Static yellow | Static light blue | Static purple | Static green-white |
| Static light yellow | Static sky blue | Static brown | Static blue white |
| Brightness rise | Brightness fall | OFF | ON |
| 25％ | 50％ | 75％ | 100％ |
| JUMP3 | FADE3 | JUMP7 | QUICK |
| FADE7 | FLASH | AUTO | SLOW |

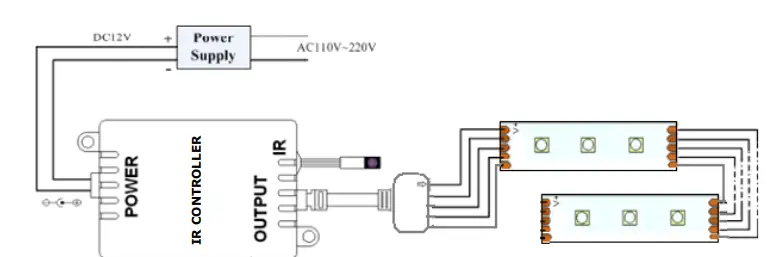

CONNECTION
CAUTION
- This product’s Input voltage is DC12V~24V. Other input voltages are not allowed.
- The lead wire should be connected correctly and according to the wire color and the connecting diagram offers.
- Overloads are prohibited.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR THE NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
