VC3036
100V volume controller 36W 45 x 45 mm

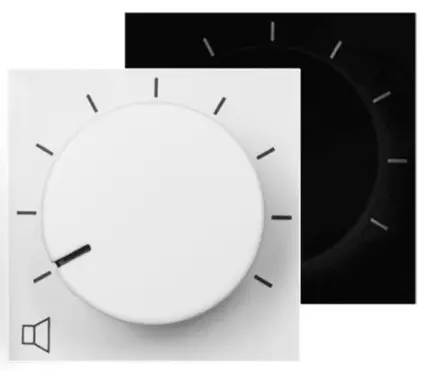

VC3036 100V Volume Controller 36W 45 x 45 mm
The VC3036 is a flush mount wall volume controllers for 100V PA installations. It is compatible with AUDAC and Niko installation materials. The volume is adjustable with a rotatable dial in ten steps of 3 dB and the maximum power rating is 36 Watt. A built-in relay makes it possible to build priority circuits between several controllers. Available in Black (B) and White (W). The 45 x 45 mm size is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm Mounting frames and cover plates.
Applications:
- Residential
- Corporate spaces
System specifications:
| Max. Power | 36 W |
| RMS Power | 36 W |
| Max. operation Voltage | 100 V |
| Attenuation | 9 x 3 dB |
| Relay | 24 V / 25 mA |
Product Features
| Dimensions | 45 x 45 x 60 mm (W x H x D) |
| Weight | 0.150 kg |
| Construction | ABS |
| Mounting | 45 x 45 mm |
| Colours | Black (RAL9005) (VC3036/B) |
| White (RAL9010) (VC3036/W) | |
| Accessories | CP45CF1 Cover frame |
| Optional | CP45CF2 Cover frame |
Variants
- VC3036/W – White version
- VC3036/B – Black version
Shipping & Ordering
| Packaging | Cardboard box |
| Shipping weight & volume | 0.150 kg – 0.000259 Cbm |
AUDAC – VC3036 – 16/08/2021 05:49 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
