Audio Streaming
Dante®

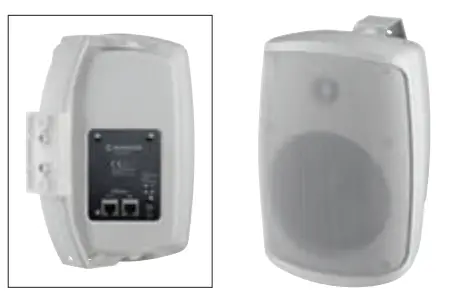

WALL-05DTM-WS Active Speaker with Integrated Dante Module
WALL-05DTM/WS
Order No. 1000788
Active speaker with integrated Dante® module
- 2-way system
- 13 cm (5“) bass-midrange speaker and 13 mm (½“) tweeter
- Mounting bracket for pivoting and tilting
- Power supply via PoE (Power over Ethernet) or via optional power supply (19 V/2.5 A)
The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
| Model | WALL-05DTM/WS |
| Power rating (RMS) | 30 W |
| Frequency range | 62-20,000 Hz |
| SPL | 89 dB/W/m |
| Power supply | PoE or power supply 19 V/2.5 A (not supplied) |
| Dimensions | 163 x 252 x 165 mm |
| Weight | 2.12 kg |
| Inputs | 1 x RJ45 (Dante® In) |
| Outputs | 1 x RJ45 (feed-through output) |
System requirements Dante® : Windows 7/8.1/10/11 or MacOS 10.9.5/10.10.5/10.11

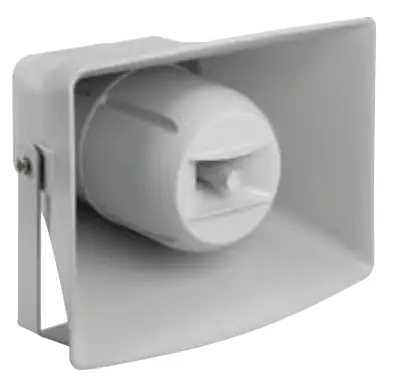

IT-400DT
Order No. 0163870
Weatherproof active horn speaker (music horn), 2-way technology
- With integrated Dante® module and DSP
- DSP-controlled 20 W amplifier
- Power supply via PoE (Power over Ethernet)
- Weatherproof and IP66 certified
- Very wideband sound with a distinct bass volume, even at very high volume levels
- 16 cm bass-midrange speaker and 25 mm (1“) horn
- Robust plastic housing
- Supplied with mounting bracket and screws made of stainless steel
| Model | IT-400DT |
| Power rating (RMS) | 20 W |
| Frequency range | 100-20,000 Hz |
| SPL | 98 dB/W/m |
| Beam angle | H: 100°/V: 60° |
| Admiss. ambient temp. | -20 °C to +50 °C |
| Power supply | PoE |
| Dimensions | 420 x 335 x 400 mm |
| Weight | 6.12 kg |
| Inputs | 1 x RJ45 |
System requirements Dante® : Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11

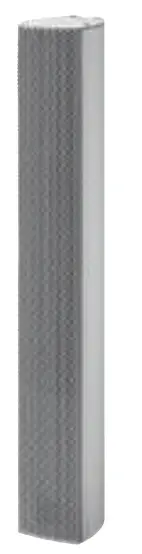

ETS-630DT
Order No. 0163490
Active PA column speaker, with integrated Dante® module.
- 30 W class D amplifier
- 6 x 7.6 cm (3“) full range speaker
- Decoding: 16/24/32 bits
- Sampling rates: 44.1/48/88.2/96 kHz
- PoE (Power over Ethernet)
- 2 x M12 threaded bushing
- Metal cabinet with white metal front grille
- Supplied with mounting bracket
| Model | ETS-630DT |
| Power rating (RMS) | 30 W |
| Frequency range | 120-18,000 Hz |
| SPL | 95 dB/W/m |
| Beam angle | H: 120°/V: 40° |
| Power supply | PoE |
| Dimensions | 95 x 610 x 120 mm |
| Weight | 5.57 kg |
| Inputs | RJ45 |
System requirements Dante® : Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11
The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.

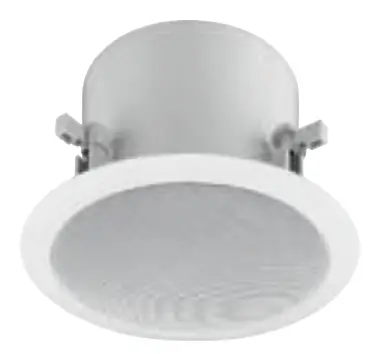

EDL-80DT
Order No. 0163480
Active 2-way flush-mount ceiling speaker, with integrated Dante® module.
- 30 W amplifier
- 20 cm (8“) bass speaker with glass fibre cone, 2.5 cm (1“) dome tweeter
- Decoding: 16/24/32 bits
- Sampling rates: 44.1/48/88.2/96 kHz
- Power supply via PoE (Power over Ethernet)
- Plastic frame and protective metal grille
- For a ceiling thickness up to 4 cm
- Mounting cutout: Ø 240 mm
- Mounting depth: 225 mm incl. space requirement for network connection
| Model | EDL-80DT |
| Power rating (RMS) | 30 W |
| Frequency range | 100-20,000 Hz |
| SPL | 93 dB/W/m |
| Beam angle | 100° |
| Power supply | PoE via RJ45 |
| Dimensions | Ø 272 mm x 187 mm |
| Weight | 2.7 kg |
| Inputs | RJ45 |
System requirements Dante® : Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11
The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
Full specifications can be found on our website www.monacor-international.com.
