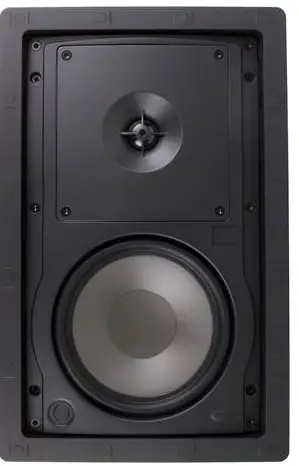

Klipsch R-1650-W In-Wall Speaker
INSTRUCTIONS
- READ these instructions.
- KEEP these instructions.
- HEED all warnings.
- FOLLOW all instructions.
- DO NOT use this apparatus near water.
- CLEAN ONLY with dry cloth.
- DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- ONLY USE attachments/accessories specified by the manufacturer.
- USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus .
- When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
ABOUT YOUR KLIPSCH PURCHASE Your new Klipsch architectural speakers have been designed to deliver great sound while remaining unobtrusive wherever you install them. For optimum performance, please use the models ending with a “W” for in-wall installations. Models ending in “C” should be used for in-ceiling applications. Either type is suitable for use as front, center or surround channels in audio or home theater applications, or as part of a distributed sound system.
Minimum Tools Required
- #2 Phillips Screwdriver
- Wire strippers
- Level
- Stud finder
- Saw

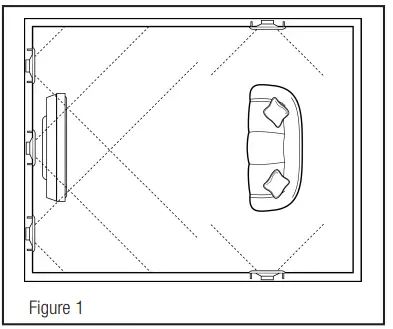

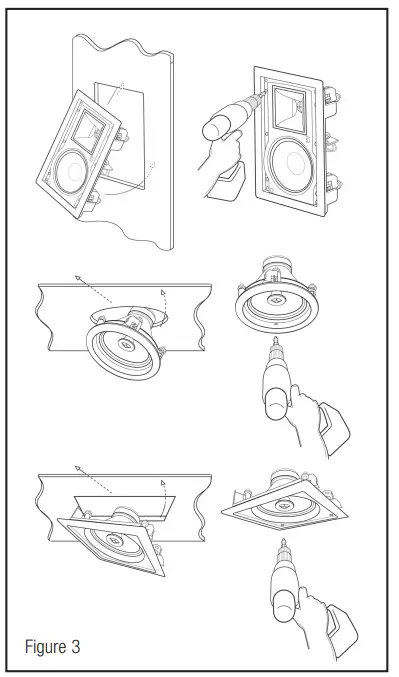

IN-WALL SPEAKER PLACEMENT Designed to function in any standard wall, ceiling or drop ceiling, Klipsch in-wall speakers are engineered for years of performance. Minimum construction requirements call for drywall or other mounting surfaces to be at least 3/8″ thick (figure1). To maximize performance, speakers should be placed at an equal distance from the listener and along a common wall to ensure the best stereo effect. For background listening environments (or when the listening position may vary widely), speaker placement may be wherever is most convenient, although in these cases stereo imaging may be lost.

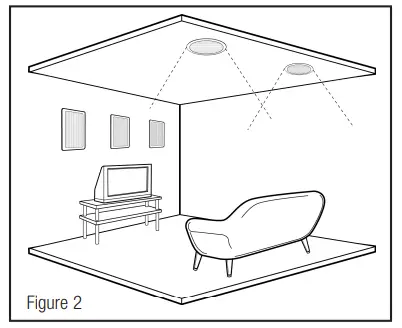

IN-CEILING SPEAKER PLACEMENT Designed to function in any drywall or drop ceiling, Klipsch inceiling speakers are engineered for years of performance. Minimum construction requirements call for drywall or other mounting surfaces to be at least 3/8″ thick. In drop ceiling installations, typical “drop in” 2’ x 4’ and 2’ x 2’ ceiling tiles are composed of low density materials which have the potential over time to sag and vibrate audibly. To maximize the acoustic performance of your in-ceiling speakers, Klipsch recommends you replace the original mounting panel with 1/2″ to 3/4″ plywood or medium density fiberboard (MDF
OPERATING CONTROLS
Mid-Bass and Tweeter Attenuator Switch (3000 and 5000 Series)
Some models feature a Tweeter switch (3000 series) or both a Mid-Bass and a Tweeter switch (5000 series) located on the front baffle. The switch allows a setting of either 0dB (normal) or –3dB in the respective frequency range. If installing in an acoustically bright room, such as a bathroom or kitchen, you may want to adjust the Tweeter level switch. If the speaker is located in a corner and produces too much bass, you may need to adjust the Mid-Bass level switch. The position of the switch should always be checked prior to attaching the grille.
Pivoting Horn (In-Wall Models)
The 3000 and 5000 series feature a pivoting horn that allows the horn to be toed-in. Before the grille is installed, carefully aim the horn toward the listening area.
Swiveling Horn Tweeter (In-Ceiling Models)
Klipsch Reference in-ceiling models (3000 and 5000 Series) feature a swiveling tweeter to aim the high frequencies. To aim sound directly at the listening area, gently adjust the horn to the desired angle before the grille is installed.
Infrared Sensor Mount (In-Wall Models)
The 2000, 3000 and 5000 Series in-wall speakers feature a 1/2’’ infrared sensor locator on the baffle.
WARRANTY–U.S. AND CANADA ONLY
The Warranty below is valid only for sales to consumers in the United States or Canada.
ARCHITECTURAL SPEAKERS
KLIPSCH, L.L.C. (“KLIPSCH”) warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of five (5) years from the date of purchase. During the Warranty period, KLIPSCH will repair or replace (at KLIPSCH’s option) this product or any defective parts (excluding electronics and amplifiers). For products that have electronics or amplifiers, the Warranty on those parts is for a period of two (2) years from the date of purchase. To obtain Warranty service, please contact the KLIPSCH authorized dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your KLIPSCH product, it can be returned, freight paid, to KLIPSCH for repair. Please call KLIPSCH at 1-800-KLIPSCH for instructions. You will need to ship this product in either its original packaging or packaging affording an equal degree of protection. Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that this product is within the Warranty period, must be presented or included to obtain Warranty service. This Warranty is invalid if (a) the factory-applied serial number has been altered or removed from this product or (b) this product was not purchased from a KLIPSCH authorized dealer. You may call 1-800-KLIPSCH to confirm that you have an unaltered serial number and/or you purchased from a KLIPSCH authorized dealer. This Warranty is only valid for the original purchaser and will automatically terminate prior to expiration if this product is sold or otherwise transferred to another party. This Warranty does not cover cosmetic damage or damage due to misuse, abuse, negligence, acts of God, accident, commercial use or modification of, or to any part of, the product. This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than KLIPSCH or a KLIPSCH dealer which is authorized to do KLIPSCH warranty work. Any unauthorized repairs will void this Warranty. This Warranty does not cover product sold AS IS or WITH ALL FAULTS. REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. KLIPSCH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE. Some states do not allow the exclusion or limitation of incidental or consequential damages or implied warranties so the above exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights, which vary from state to state.
WARRANTY OUTSIDE THE UNITED STATES & CANADA
The Warranty on this product if it is sold to a consumer outside of the United States or Canada shall comply with applicable law and shall be the sole responsibility of the distributor that supplied this product. To obtain any applicable warranty service, please contact the dealer from which you purchased this product, or the distributor that supplied this product
FAQS
i want to make sure before i purchase these speakers if the “dog ear” brackets come with the speaker??
The dog legs will come with the speaker, but you cannot mount an in-wall speaker into the ceiling. The mounts will not support the weight when the face of the speaker is facing the ground. You will need to find an in-ceiling model or install this speaker into the wall instead.
Is there a way to mount these on-wall?
The R-2650-W II is an in-wall speaker.
Can i paint the speaker covers? if so do i need to remove the felt on the back side of covers?
Yes, and the felt back or scrim will have to be removed before painting.
Are these good for indoor rear speakers ?
Yes, that’s what we use them for.
Can this speaker perform as a center channel speaker?
It could, but there are other speakers designed to be center channel speakers. And usually they don’t go into the wall.
Is the price for a pair of speakers or for one?
Price includes 1 speaker
Is this Passive, constant resistance?
The R-2650-W II is a passive speaker that requires a speaker wire connection to an amplifier or receiver for audio signal and power.
What is the cutout size
The R-2650-C II cutout dimensions are 13″ Height x 8″ Width.
Can I mount these vertically instead of horizontally?
Yes, they can be mounted vertically.
Is this a Passive, constant resistance?
Don’t know what that means.
What is the difference between cdt and r speakers? can i mix and match or do i need buy all cdt or r speakers?
“CDT” stands for “Controlled Dispersion Technology” and refers to a feature in a few of our in-ceiling speaker models
The speaker screen size is 7″ by 10″. Does this fit?
my screen is closer to 7×10-1/2
Can it be used for center channel speaker
Yes, you can use the R-1650-W as a center channel speaker.
What speaker Enclosures do i need for klipch r1650w speaker
They are an in-wall speakers, you don’t need enclosures for them. The enclosure is your wall.
What size is the cut in hole?
Approximately 1/4 of an inch smaller than the speaker dimensions. It comes with an accurate cut-out board in the packaging.
Can blown in insulation go directly on top of them or should they have a barrier?
We have blown in insulation.
