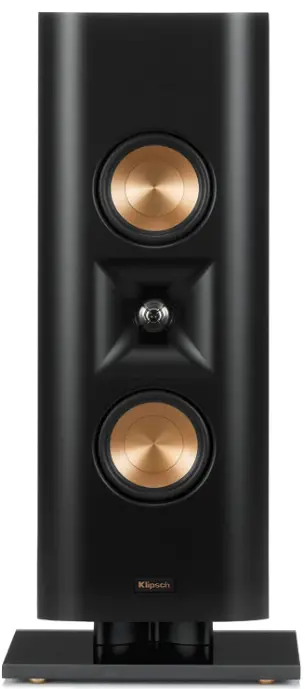

Klipsch RP-240D Home Speaker

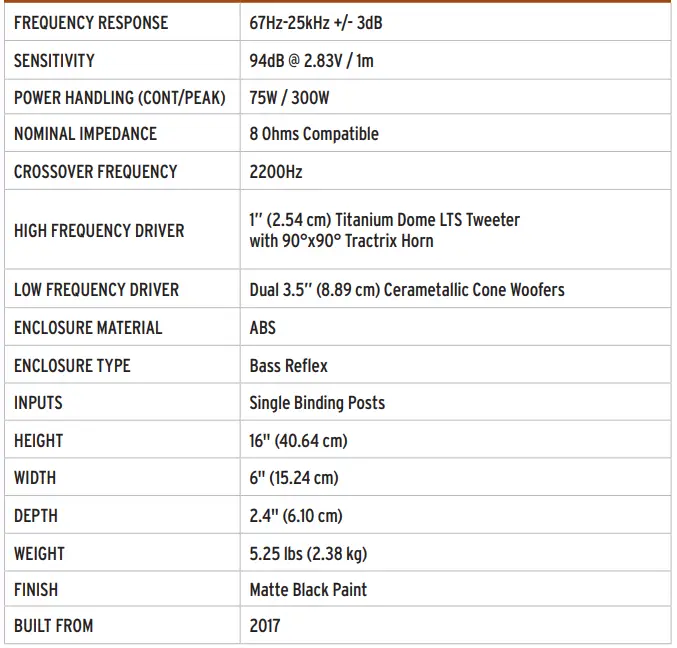

SPECIFICATION – MAIN CHANNEL
MODERN LOOK. LEGENDARY SOUND
The Reference Premiere Designer On-Wall family brings the dynamic, detailed, powerful sound of the Reference Premiere box speakers to a slim, on-wall solution. The matte finish helps it blend more seamlessly with contemporary interiors and electronics, making it a great sounding, great looking solution in a high performance home theater or media room where floor space is at a premium.
90×90 TRACTRIX HORN
The Tractrix® horn geometry helps to improve high-frequency response and extension, while enhancing imaging and dynamics. It also focuses the high frequency sounds towards the listening area, for the cleanest, most natural sound possible.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM TWEETER
The same tweeter used in the Reference Premiere box line, a Linear Travel Suspension maximizes dynamics for enhanced, detailed performance. LTS Tweeters have been a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.
SPUN COPPER CERAMETALLIC WOOFERS
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.
WRAP-AROUND MAGNETIC GRILLE
Front grill attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.
TABLE MOUNT INCLUDED
Dual four-way keyholes allows for easy, tight-to-the-wall mounting either vertically or horizontally, while the included glass base provides a luxurious, modern table-top or bookshelf option.
IMPORTANT SAFETY INSTRUCTIONS!
- READ these instructions.
- KEEP these instructions.
- HEED all warnings.
- FOLLOW all instructions.
- DO NOT use this apparatus near water.
- CLEAN ONLY with dry cloth.
- DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- ONLY USE attachments/accessories specified by the manufacturer.
- USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip over.
- DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.
Warning: The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
Danger: The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.
WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.
WARNING: No naked flame sources – such as candles – should be placed on the product.
WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.
THANK YOU
Thank you for your purchase of the Klipsch Reference Premiere Designer On-Wall speakers! Each speaker blends versatile, superior styling with legendary Klipsch® lifelike sound for seamless integration into any décor. The RP-240D speakers are designed to operate vertically or horizontally as left, center, right or surround speakers while the sound bar combines the three front channels in one aesthetic cabinet. Each model comes with a high quality, elegant, tempered glass base for stand, table or bookshelf placement and keyhole mounts for on-wall placement.
PRODUCT REGISTRATION
Register your product online at www.klipsch.com/register
- Klipsch Group Inc, (KGI) will keep you up-to-date on new products and promotions
- Your personal information will never be resold
- This registration information is not used for warranty purposes.
Please retain your receipt for warranty claims.
ROOM PLACEMENT
Before You Start
Some Klipsch speakers have feet and other accessories that may need to be installed prior to use.
Left and Right Main Channel Speakers
For the most spacious sound KGI suggests placing the RP-240D front left/right speakers six to 15 feet (2 to 4.5m) apart with the listening position about 1 to 1.5 times the distance separating the speakers. Excellent sound can still be achieved by placing/wall-mounting these speakers close to both sides of your TV if that is more aesthetically pleasing.
Center Channel Speakers
Speakers used as center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. These speakers should therefore be placed/wall-mounted horizontally, as close to the screen as possible, preferably at least 1″ directly below the screen. The three-channel sound bar should also be placed/wall-mounted this way.
Rear Surround Channel Speakers
Speakers used as surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room’s characteristics.
SPEAKER/SOUND BAR PEDESTAL INSTALLATION
If you place your RP-240D speakers sound bar on a stand, table, etc. (vs. mounting on the wall), you will need to attach the provided tempered glass pedestals with the included screws.
Before you attach a pedestal, have the speaker wire that will attach to that speaker available since attaching the pedestal and connecting the speaker wire to a speaker are done at the same time (see “Connecting” section for proper wire connection).
The RP-240D speakers can be attached vertically or horizontally onto their pedestals and, therefore, have threaded inserts in two different positions on the rear of these speakers. The sound bar can only be attached horizontally to its pedestal. Attach the pedestal as follows:

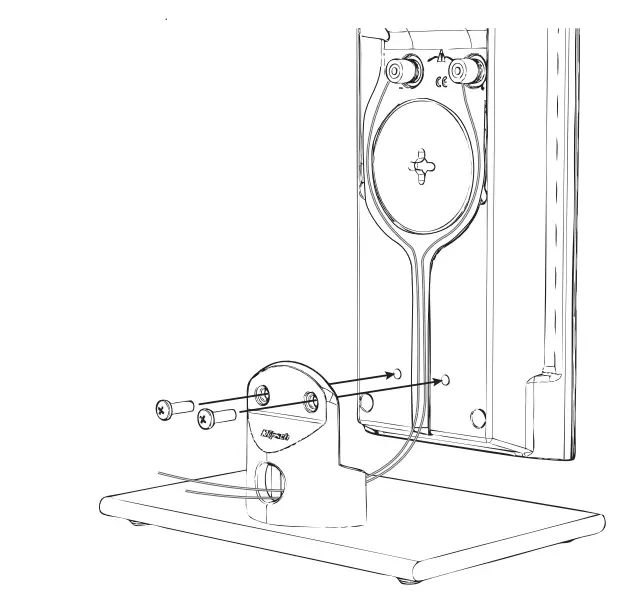

- Insert speaker wires RP-240D and three sets, left, right and center channel for sound bar) inside hole in pedestal back and pull through pedestal top (See Diagram 2).
- Position speaker/sound bar on ridge on pedestal top, lining up the holes in the top with the threaded inserts on the speaker the has just one insert when in horizontal position and it should lineup with left hole on pedestal top). (See Diagram 2)
- Using a Phillips screwdriver, screw the screws partially into the speaker inserts, without tightening them. (See Diagram 2)
- If vertical mounting, attach speaker wires (see Diagram 1), adjust wires to fit in recessed area around terminals and tighten Phillips screws on pedestal. If horizontal mounting, route speaker wire from the rear center of speaker through channel(s) to the speaker terminals, attach speaker wires in same manner as vertical mounting, then tighten Phillips screws on pedestal. With the sound bar, use both channels to route all three sets of wires to the speaker terminals. (See Diagram 3) (Note: using speaker wire larger than 18 gauge on the may not allow wire(s) to completely fit in channels). If needed, use the included adhesive strip to hold excess wire in place. To change the Klipsch logo direction on the speaker front gently pull out one side of it and rotate 45˚.
SPEAKER/SOUND BAR ON-WALL INSTALLATION
If you mount your RP-240D speakers sound bar on a wall, do not attach the pedestals. Determine a suitable location for each speaker to wall-mount and complete all wiring to all speaker positions before mounting speakers to the wall. Do not ceiling-mount.
- If you have the RP-240D use included template and choose mount position for the speaker (horizontal or vertical). Pin template to wall, making sure it is level (when horizontally mounting) or plumb (when vertically mounting) and positioned correctly, centered with the TV’s center points for example. Mark on wall the pilot hole locations through the template and remove template. If you have the mark on wall 2 pilot hole points 9.26”apart for the 25”apart for the (make sure the points are lined up so that the speaker hangs straight up and down vertically or level horizontally). For all speakers, Leave a minimum of one inch space between speaker cabinet and TV. Keep in mind that, when mounted, the speaker will “lock” into position 5/16” lower than where the pilot holes are drilled.
- Pre-drill pilot holes in marked locations. If drilling into a wall stud (ideal) it is recommended to use #10 mounting screws (not included) to mount the speaker bracket RP-240D the speaker itself. If there is no stud where a pilot hole is located, install wall anchors (not included) into the pilot holes to hold the bracket or speaker instead. Wall anchors should be rated to at least 6 pounds 12 pounds RP-240D.
- If vertical wall-mounting, feed speaker wire into speaker bottom area and attach each wire to appropriate screw-terminal binding post (See Diagram 2). If horizontal wall-mounting, feed speaker wire to channel(s) that start on the back center part of the speaker, then continue running wire through the channel(s) and attach each wire to the appropriate screw-terminal binding post the same as if vertical mounting. (See Diagram 3) (Note: using speaker wire larger than 18 gauge may not allow wire(s) to completely fit in channels). If needed, stick the included adhesive strip on a point over the channel to hold the wires in place in the channel. To change the Klipsch logo direction on the speaker front gently pull out one side of it and rotate 45˚
- Gently push the speaker onto the two tabs on the mounted bracket through its keyholes RP-240D onto the two screws in the wall and push 5/16” down to lock into position.
CONNECTING
RP-240D Connection

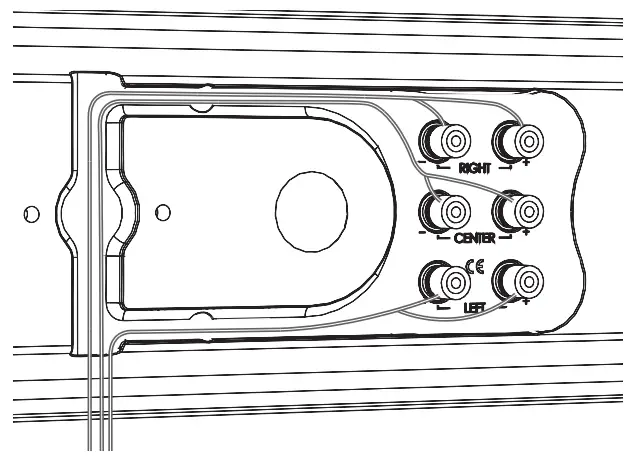

Using 16-gauge or larger speaker wire, connect the RED “positive” (+) terminal of the LEFT speaker to the RED “positive” (+) terminal of your amplifier’s LEFT channel. Connect the BLACK “negative” (-) terminal of the left speaker to the BLACK “negative” (-) terminal of your amplifier’s left channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels.
sound bar Connection
Since this speaker contains the LEFT, RIGHT and CENTER channels, connect each one of these channels from your amplifier as above to the designated “Left”, “Right” and “Center” terminals.
Make sure that no bare wires from any of the connections touch each other or any other terminals as this could cause a short and damage your equipment.
SPEAKER CARE AND CLEANING
Your Klipsch Reference Premiere Designer On-Wall Speaker has a durable finish that should only require dry dusting or cleaning with a dry cloth. Avoid the use of abrasive or solvent-based cleaners and harsh detergents. The unique grille for the speaker consists of a piece of sheer rectangular cloth with metal rods along two sides. It is held in place by magnets embedded in a slot on each side of the rear of the cabinet. Carefully pull the metal rod away from one side, then the other to remove grille. The grille is designed to be as lightweight and acoustically transparent as possible so there is no rigid framework behind it. Because of this, it might be necessary to “smooth” the cloth once the grille is attached to the cabinet by using two thumbs to pull the cloth taught from top to bottom (or side to side if unit is mounted horizontally).
EU COMPLIANCE INFORMATION:
Eligible to bear the CE mark, Conforms to European Union Low Voltage Directive 2006/95/EC; Conforms to European Union EMC Directive 2004/108/EC.
WEEE NOTICE
Note: This mark applies only to countries within the European Union (EU) and Norway.
This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling. Klipsch is a registered trademark of Klipsch Group Inc.
FAQs
After using your speakers for about 100 hours, they should be broken in. When a speaker is used more frequently, the surround and spider materials degrade. After being broken into, not every speaker will sound notably different. Some only marginally improve, while others significantly change.
Both orientations should produce excellent sound. By the way, a variety of music sounds great on these speakers. Even at a moderate volume, there is just the proper amount of bass, faultless audio quality, and excellent image.
Manufacturers offer dual-input terminals so that customers can bi-wire their home theatre systems to improve audio fidelity and create a larger auditory space. In many home theatre setups, one dedicated wire ought to be connected from the amplifier to each speaker.
The distance between each speaker and the listener, which is typically six feet or more, should be at least as great as the distance between the two speakers. “Consider yourself the centre of an equilateral triangle, with your left and right speakers acting as its points,” he instructs.
All speakers need to be powered, but the right amp is still required. No matter what speakers you need to power, Klipsch makes the best amplifier for the job.
5.1 Klipsch systems require a receiver, which is provided. An optical cable will be connected between the projector and the receiver. While playing, you will select the appropriate input in your receiver.
The Klipsch handbook states that the speaker’s nominal impedance is 4 ohms.
This product is built and manufactured to connect directly to your TV or other devices without the usage of an AVR.
Two to three feet long. The closer you are to the wall, the more it will affect the bass response. When the speaker is too close to the wall, the frequency response is uneven and the bass is boomy. Practically the only alternative is to move them around a few inches at a time till the sound is optimal.
Some of our best speakers feature a cup with four input ports. These extra input lines can be used to “bi-amp” the speaker. Please be aware that the “Main” and “Height” binding posts are not meant to be “bi-amped.”
No, not at all.
Through USB Audio and Analog/AUX, the Fives can connect to a computer or laptop. To play music over USB, you must use the supplied USB cable to connect your laptop or computer’s USB port to The Fives’ USB Audio input. The source wheel on the Fives needs to be set to USB.
By going to the Bluetooth menu on your iMac, you must enable Bluetooth and make it discoverable via Bluetooth. The Klipsch Three II should appear as a Bluetooth device in the BT menu. You should be set to go once you pair your smartphone with it.
