Synco P2t Dual Microphone User Manual

P2T Dual Microphone
User Manual

Thank you for choosing SYNCO products.
Please read this manual carefully before use and follow all instructions mentioned herein.

Caring For Your SYNCO Product

• Please keep the product in a dry, clean, dust-free environment.
• Keep corrosive chemicals, liquids, and heat sources away from the product to prevent mechanical damage.
• Use only a soft and dry cloth for cleaning the product.
• Malfunction may be caused by dropping, the impact of external force.
• Do not attempt to disassemble the product. Doing so voids the warranty.
• Please have the product checked or repaired by authorized technicians if any malfunctions happened.
• Failure to follow all the instructions may result in mechanical damage.
• Warranty does not apply to human errors.

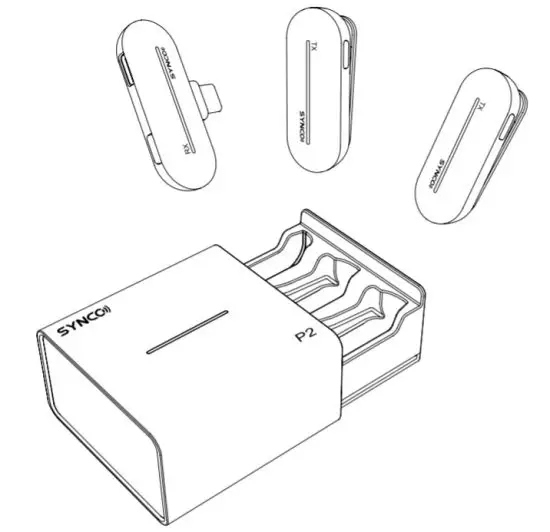

Package List

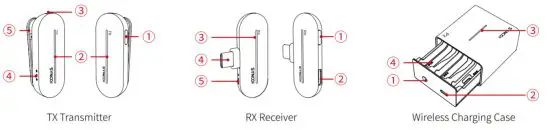

Product Instruction

Indicator – Transmitter (Double press the Power button to turn off light effect)

Working Indicators(White Light)	Flash concurrently	System unpaired
	Illuminate sequentially(light effect on)	System paired, normal working
	Single light keeps on (light effect off)
	Single light flashes	Low battery
Working Indicators(Red Light)	Single light keeps on (in the case)	Charging, and then turns off when fully charged

Indicator — Receiver

Working Indicators (White Light)	Flash concurrently	System unpaired
	Illuminate sequentially	System paired
	Single light keeps on & Illuminate sequentially	Mono mode-Original sound
	Single light flashes twice & Illuminate sequentially	Mono mode-Vocal effects on

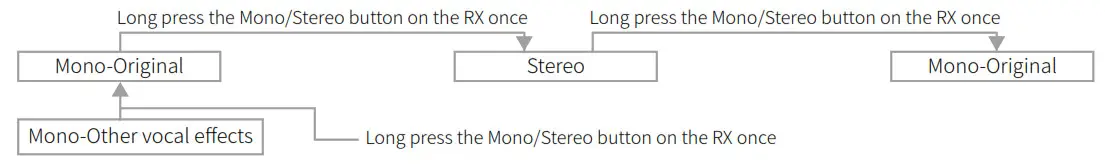

	Single light keeps on & Illuminate sequentially two-way	Stereo mode (Only original is supported)

Indicator — Wireless Charging Case

Working Indicators(White Light)

Illuminate sequentially

Pairing

Operations

1. Usage

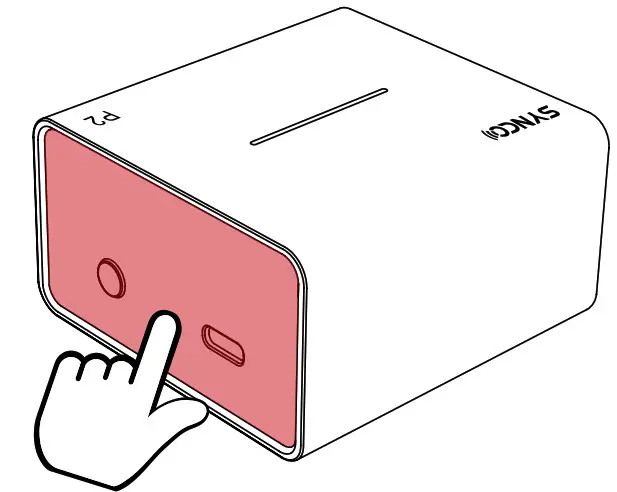

   ① Tap on the right side of the charging case to pop out the drawer
   ② Take the TX and RX out
   ③ TX should boot automatically as it leaves the case, and switch itself off automatically when returning to the case.
   (Forcible switch: Long press the Power button on TX for 3 seconds)
   ④ RX should boot automatically as it is plugged into a smartphone

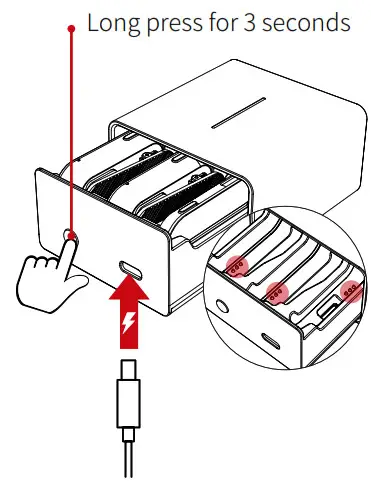

2. Pairing
   ① Place the TX and RX in the case with their contacts are connected with the case’s
   ② Long press the Pairing button on the case for 3 seconds with the drawer open
   ③ The indicators on the TX and RX should light up and illuminate sequentially when pairing is successful
   Note: The transmitter will automatically switch off if it is unpaired or disconnected for 5 minutes.
3. Charging
   Charge the TX: Place the TX in the case with contacts connected with the case.
   Charge the case: Connect the case with the power supply via the charging cable.
4. Check the power
   TX: Short press the Power button, the indicators will light up according to remain power for 5 seconds
   Charging Case: Short press the Power Prompt button, the indicators will light up according to remain power for 5 seconds
5. Use vocal effects
   Short press the Vocal Effects button on the receiver to switch sound effects: Original >> Studio FX >> KTV FX >> Voice Amplification >> EDM  (Electronic Dance Music) >> Baby FX >> Male to Female >> Female to Male >> Monster FX. Default effect: Original.
   Note: The vocal effect will apply to both transmitters. In Stereo mode, only original is supported. Other vocal effects are unavailable.

6. Charging phone device
   Plug your phone charging cable into the Type-C Port on the receiver.
7. In-Ear monitoring
   Plug the included Type-C to 3.5mm Adapter into the Type-C Port on the receiver. Then plug in your headphones to real-time monitor mic recording and the device’s backgrounding.
   Note: The included Type-C to 3.5mm Adapter is exclusive, not available for other devices.

Specifications

Warranty

Warranty Period
Thank you for purchasing SYNCO products.

1. Customers are entitled to free replacement or repair service in case of the quality defect(s) found in the product under normal use within 30 days upon receipt of the product.
2. Original SYNCO products are entitled to a 12-month limited warranty service. The warranty period begins on the date of purchase of brand new, unused products by the first end-user.
   Within the warranty period, if a product defect or failure is attributable to material defection or technological problem, the defective product or defective part will be repaired or replaced without charge (service and materials fee).

Warranty Exclusions and Limitations
Faults resulted from inappropriate use of a product without following its operation specification Artificial damage, e.g. crash, squeeze, scratch, or soaking
Modifications to a product by its user or a third party without the prior written consent of SYNCO, e.g. replacement of element or circuit, label alteration The code  on product is inconsistent with that of the warranty certificate, or the code on the product or warranty certificate is altered or torn off
All consumable accessories are attached to a product, like a cable, wind muff, battery Faults as a result of force majeure, such as fire, flood, lightning, etc.
Warranty Claim Procedure
If failure or any problem occurs to your product after purchase, please contact a local agent for assistance, or you can always contact SYNCO’s customer service through email at [email protected].
Please retain your sales receipt and warranty certificate as proof of purchase. If any of these documents is missing, only sales return or chargeable service will be provided.
If the SYNCO product is out of warranty coverage, the service and the cost of the parts will be charged.
