VSI-2002 Outdoor Lighting
VOLT® 120V Bistro String Lights
Instruction Manual
Important: Please Read Before Installation
This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
These instructions do not intend to cover all variations in installation, operation maintenance, or mounting situation.
- Make sure that the power is turned OFF before installing or servicing this fixture.
- DO NOT EXCEED 1440 WATTS, ALL SETS COMBINED!
- Use only two-wire outdoor extension cords that have two-prong grounding plugs and grounding receptacles that accept the two-prong plugs. Do not alter the plug.
- Light sockets must be installed base up so that bulbs are facing downward ONLY.
- Keep combustible material clear of bulbs. Do NOT allow lamps or sockets to come into contact with walls, fabrics associated with shades, blinds, or other materials. Lamps should hang freely in a downward direction with a minimum of 3” space from the nearest object.
- Do not cluster the bulbs.
- Not intended for installation in ceilings, soffits, cabinets or other enclosed spaces.
- Avoid making connections or disconnections when the equipment is wet. Do not use with extension cord near or where water may accumulate. Do not submerge. Keep lamps at least 16 feet from pools and spas. Keep receptacles dry.
Important Safety Instructions
WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.
- Disconnect power at source prior to re-lamping String Lights.
- For outdoor String Lights, do NOT re-lamp light strings during rain or when wet.
- Re-lamp String Lights only during dry and calm weather conditions.
- Do NOT secure light strings to buildings or other structural supports using nails, staples, or other sharp, conducting materials. DO NOT DAMAGE THE WIRE.
- Do NOT pierce or otherwise compromise wires or socket’s outer covering, jacket, or sheathing.
- Periodically inspect wire and sockets for degradation due to weather, UV light, or other damage. Promptly replace worn-out light string.
Package Contents
A. (1) String ( 25’ or 50’)
B. (1) Set of lamps ( 15 or 30 pieces)

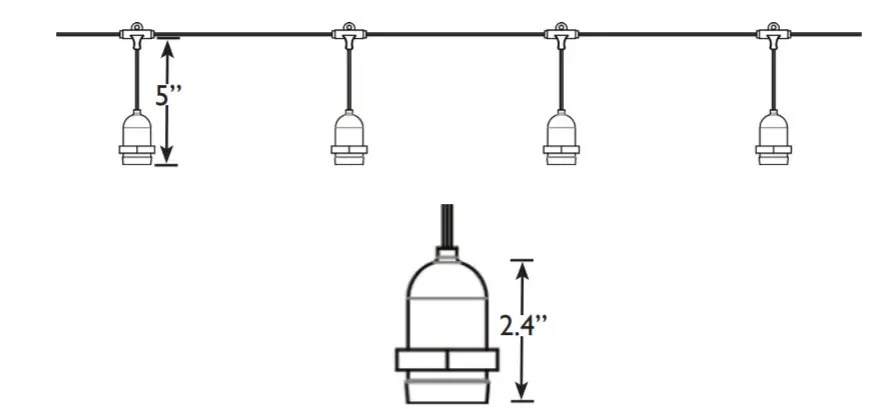

Product Dimensions
Installation Method 1: Using a Guide Wire with S-hooks or zip ties

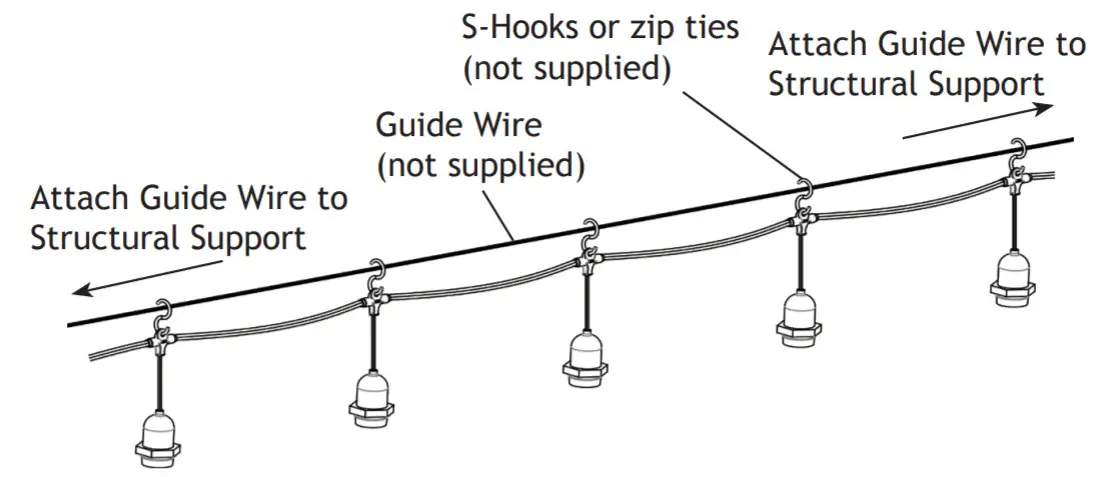

Determine your desired hanging locations. Attach the guidewire to the structural support. Attach the string lights to the guidewire by using S-hooks or zip ties.
Installation Method 2: Attached to a Structure

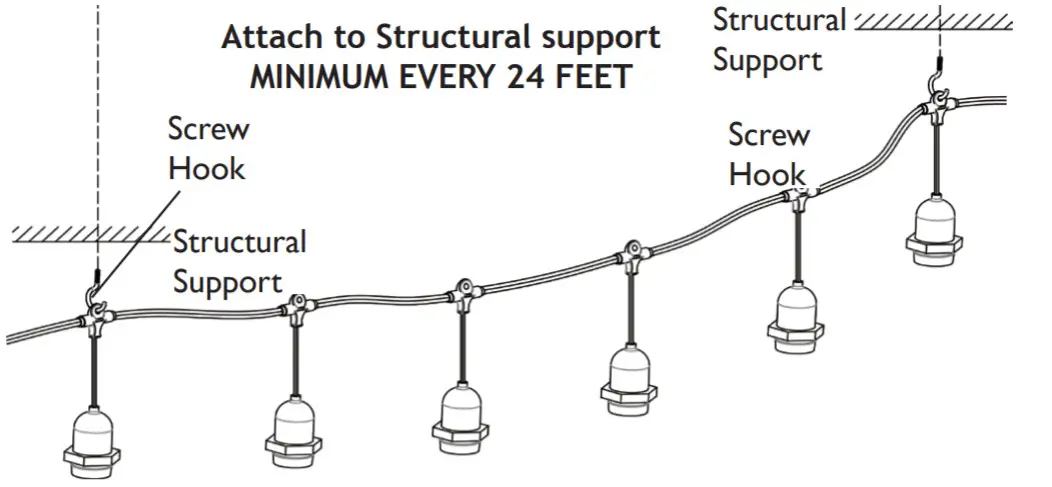

Determine your desired hanging locations. Tighten the screw hook into the structural support. Make sure to attach a screw hook to structural support at a minimum every 24 feet. Attach the string lights to the screw hooks.
Install lamps

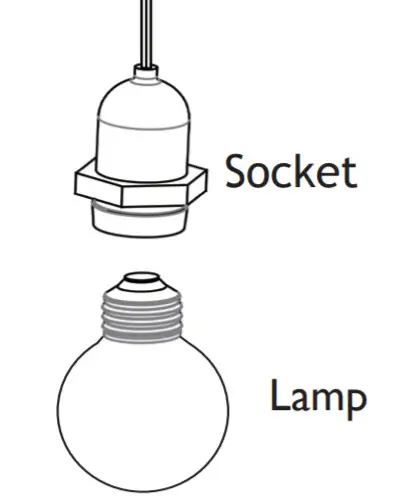

Screw the lamp into the socket clockwise until the top of the socket forms a tight seal around the lamp and the lamp makes solid contact with the socket. Do not exceed 1440 watts of all sets combined. Refer to charts on page 5.
Wattage Chart
| VSI-2000- 15 Sockets | |
| MAXIMUM LAMP WATTAGE | NUMBER OF BISTRO STRINGS |
| 7 WATT | 13 SETS |
| 8 WATT | 12 SETS |
| 9 WATT | 10 SETS |
| 10 WATT | 9 SETS |
| 11-12 WATT | 8 SETS |
| 13 WATT | 7 SETS |
| 14-16 WATT | 6 SETS |
| 17-19 WATT | 5 SETS |
| 20-24 WATT | 4 SETS |
| 25-32 WATT | 3 SETS |
| 33-49 WATT | 2 SETS |
| 50-60 WATT | 1 SET |
| VSI-2001- 30 Sockets | |
| MAXIMUM LAMP WATTAGE | NUMBER OF BISTRO STRINGS |
| 7-8 WATT | 6 SETS |
| 9 WATT | 5 SETS |
| 10-12 WATT | 4 SETS |
| 13-16 WATT | 3 SETS |
| 17-24 WATT | 2 SETS |
| 25-48 WATT | 1 SET |
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am – 6pm (EST)
www.voltlighting.com
Specifications and product details are subject to change without notice.
© Copyright 2021, VOLT®
Lighting, Lutz FL USA 33549 • All rights
reserved. [email protected] • 813.978.3700
