Vul-6802-25-bbz Low Voltage Landscape Lighting Instruction Manual

INSTALLATION INSTRUCTIONS
VOLT®Low Voltage Landscape Lighting
VOLT® Mini Brass LED Underwater Pond Light
VUL-6802-25-BBZ

INSTALLATION INSTRUCTIONS

VOLT® Mini Brass LED Underwater Pond Light
VUL-6802-25-BBZ

Important: Please Read Before Installation

This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage, and void the warranty.
These instructions do not intend to cover all variations in installation, operation maintenance, or mounting situation.

1. Use only in ponds and small decorative fountains where persons will immerse no more than their hands and lower arms while the product is energized.
2. DO NOT use in water intended for swimming, wading, immersion, or bathing.
3. All installer completed cable connections must be located outside of the pond or fountain.
4. Low voltage circuit must be supplied by a power unit marked as suitable for supplying submersible luminaires.
5. Power unit must be supplied by a circuit protected by a ground fault circuit interrupter (GFCI).
6. “Maximum depth: 18 in (450 mm)”.

Important Safety Instructions

LIGHTED LAMP IS HOT!
WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before reducing the lamp.
2. Lamp gets HOT quickly!
3. Do not touch the hot lens, guard, or cowl.
4. Keep the lamp away from materials that may burn.
5. Do not touch the lamp at any time.
6. Use a soft cloth.
7. Oil from the skin may damage the lamp.
8. Do not operate the fixture with a damaged or missing lens or shield.

Package Contents

A. (1) Fixture Body

Product Dimensions

Wire Connections

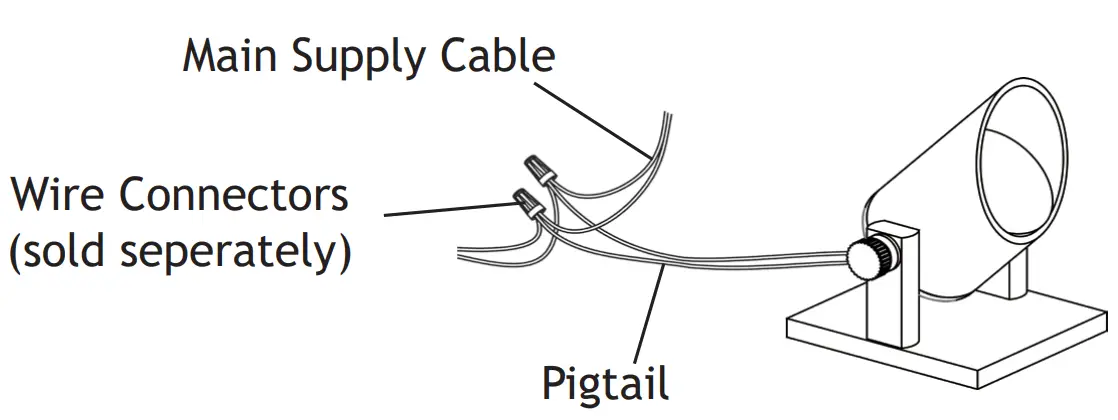

Place fixture body on your desired location. Strip both leads from luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads. Make this connection at least 10’ outside of the water.

Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am – 6pm (EST)
www.voltlighting.com
Specifications and product details are subject to change without notice.
© Copyright 2021, VOLT® Lighting, Lutz FL USA 33549 • All rights
reserved. [email protected] • 813.978.3700
