Synco G1(a2) 2 Person Wireless Microphone User Manual

Microphone G1(A2) >>> User Manual

Thank you for choosing SYNCO product. Please read this manual carefully before use and follow all instructions mentioned herein.

Caring For Your SYNCO Product

• Please keep the product in a dry, clean, dust-free environment.
• Keep corrosive chemicals, liquids, and heat sources away from the product to
  prevent mechanical damage.
• Use only a soft and dry cloth for cleaning the product.
• Malfunction may be caused by dropping, the impact of external force.
• Do not attempt to disassemble the product. Doing so voids the warranty.
• Please have the product checked or repaired by authorized technicians if any
  malfunctions happened.
• Failure to follow all the instructions may result in mechanical damage.
• Warranty does not apply to human errors.

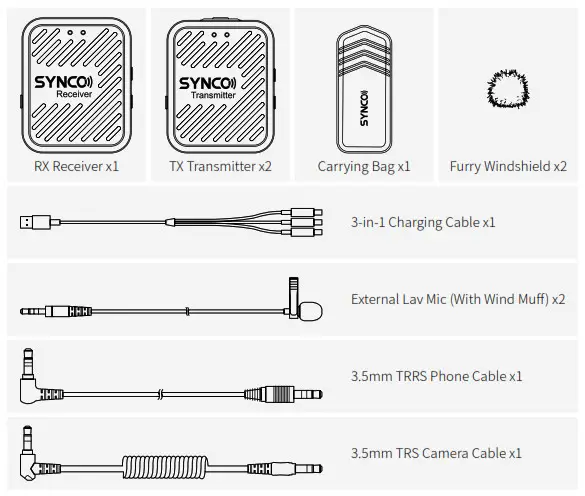

Package List

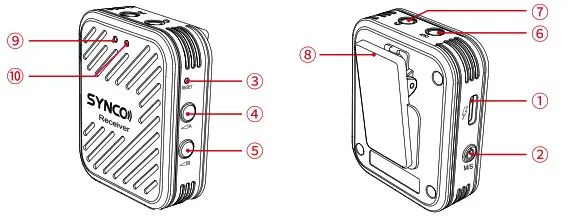

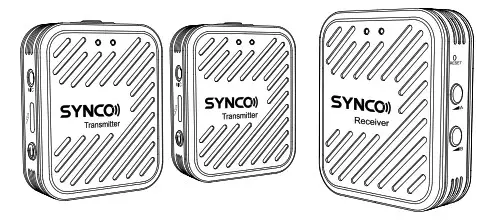

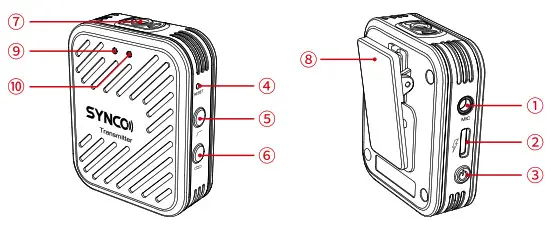

Product Instruction

TX Transmitter

RX Receiver

Indicator

Operations

1. Power Button
   Long press the power button for 2 seconds to turn on/off the system. Short press the power button on the RX for the Mono/Stereo switch.
2. Pairing
   The system will pair automatically after the power is on. If you need manual
   pairing, long-press the channel A gain control and channel B gain control the RX, and the pairing button on the TX, the system will start to pair
3. Connection
   The receiver outputs audio signals to recording devices with a 3.5mm TRRS Phone Cable or a 3.5mm TRS Camera Cable. Please use the corresponding cable based on your device.

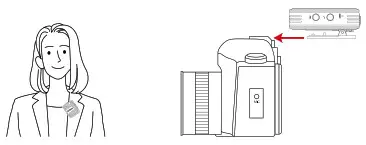

4. Installation
   Attach the transmitter or the external mic to the speaker’s clothing. Insthe receiver to the camera’s hot shoe via the pocket clip. (Note: When using the external mic, please insert it into the mic input properly.)

5. Gain Control
   The initial value of the gain is the microphone’s original volume. Each press of the gain control button increases the gain by one level, the fourth level at most. When the gain is at max level, press once and return to the initial value.
6. Charging
   Please fully charge the TX and RX via the USB-C port and the charging cable before use.

Warranty

Warranty Period

Thank you for purchasing SYNCO products.

1. Customers are entitled to free replacement or repair service in case of the quality defect(s) found in the product under normal use within 30 days upon receipt of the product.
2. Original SYNCO products are entitled to a 12-month limited warranty serThe warranty period begins on the date of purchase of brand new, unused products by the first end-user. Within the warranty period, if a product defect or failure is attributable to defection or technological problem, the defective product or defective part will be repaired or replaced without charge (service and materials fee).

Warranty Exclusions and Limitations

• Faults resulted from inappropriate use of a product without following operation specification
• Artificial damage, e.g. crash, squeeze, scratch, or soaking
• Modifications to a product by its user or a third party without prior write consent of SYNCO, e.g. replacement of element or circuit, label alteration
• The code on the product is inconsistent with that of the warranty certificate, or the code on the product or warranty certificate is altered or torn off
• All consumable accessories attached to a product, like a cable, wind muff,
  battery
• Faults as a result of force majeure, such as fire, flood, lightning, etc.
  Warranty Claim Procedure
• If failure or any problem occurs to your product after purchase, please ca local agent for assistance, or you can always contact SYNCO’s customer
  service through email at [email protected].
• Please retain your sales receipt and warranty certificate as proof of purchase.
  If any of these documents are missing, only sales return or chargeable ser
  will be provided.
• If the SYNCO product is out of the warranty coverage, the service and the
  parts cost will be charged.

Guangzhou Zhiying Technology Co., Ltd
Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000
[email protected]
www.syncoaudio.com
https://www.facebook.com/syncomicrophones

WARRANTY CERTIFICATE

Please register your warranty. Meanwhile, you are welcome to contact us
via Email：[email protected]

RESULT
Solved Unsolved Returned(Replaced)
