TWT10521 Thermowarm 500w 230v Compact Convector
Instructions
TWT10521 Thermowarm 500w 230v Compact Convector
Thermowarm TWT/TWTC
Easily positioned convector in several different designs
Thermowarm is a series of easily installed convectors designed for public buildings such as changing rooms, stores and toilets. TWTC can also be used in corrosive and aggressive environments. TWT200 has a surface temperature as low as 60 °C, which makes it ideal for daycare centres and bathrooms.
Thermowarm is easy to position and has, despite its small size, a large heat output. The three different surface finishes: white, grey covered panel covered and stainless steel, make Thermowarm suitable for most environments. The front cover can be opened making it straightforward to keep the convectors clean and tidy.

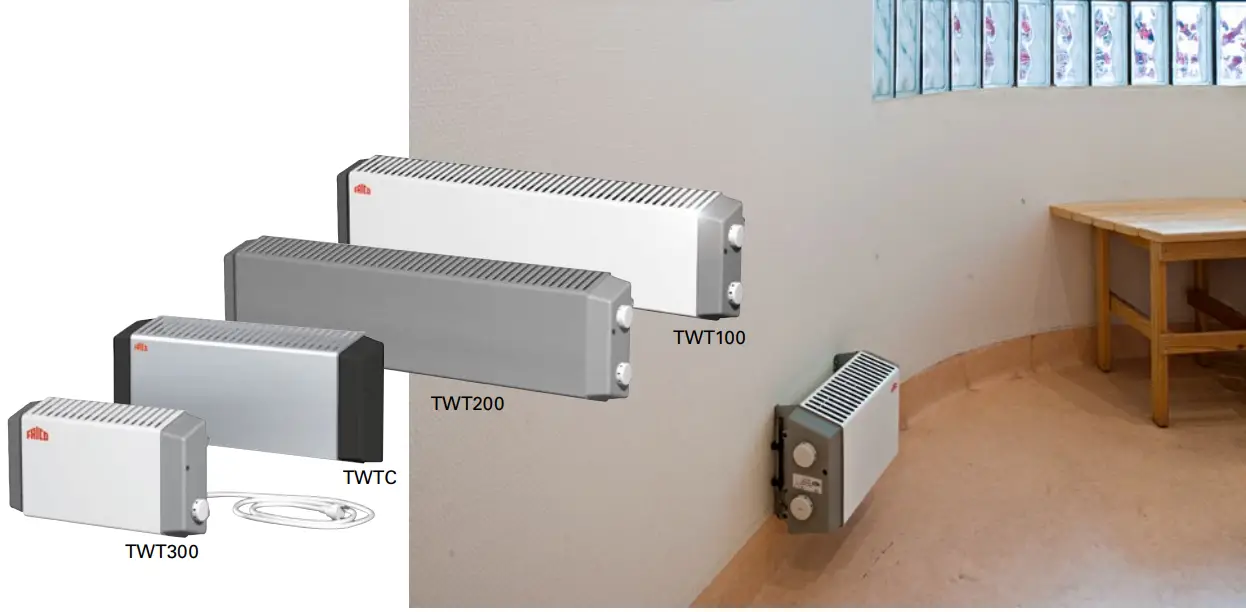

- Thermowarm is available in four designs:
– TWT100: white front, RAL 9016, NCS S 0500-N, and grey sides. Equipped with power switch. IP44.
– TWT200: grey covered front panel and grey sides. Equipped with power switch, surface temperature 60 °C. IP44.
– TWT300: white front, RAL 9016, NCS S 0500-N and grey sides, with mains cord and plug. IP21.
– TWTC: stainless steel design and black sides. Equipped with mains cord and plug. Concealed temperature setting. IP54. - With ribbed flanges and tubular elements.
- Resettable overheating protection along the full length of the convector.
- Integrated thermostat with setting range 0 – +35 °C.
- TWT100 is approved by Det Norske Veritas.
- Ends of impact resistant thermoplastic.

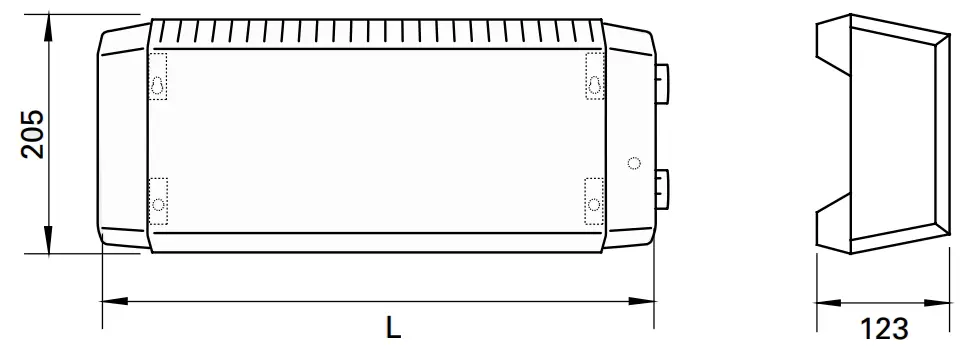

Dimensions
L [mm]
TWT103/203/303, TWTC303……………… 345
TWT105/205/305, TWTC305 ……………465
TWT110/210/310, TWTC310……………… 765
Thermowarm TWT100. White front, with switch. (IP44)
| Type | Output [W] | Voltage [V] | LxHxD [mm] | Weight [kg] |
| TWT10321 | 300 | 230V~ | 345x205x123 | 1,5 |
| TWT10331 | 300 | 400V~ | 345x205x123 | 1,5 |
| TWT10521 | 500 | 230V~ | 465x205x123 | 2,0 |
| TWT10531 | 500 | 400V~ | 465x205x123 | 2,0 |
| TWT11021 | 1000 | 230V~ | 765x205x123 | 3,0 |
| TWT11031 | 1000 | 400V~ | 765x205x123 | 3,0 |
Thermowarm TWT200. Grey covered front, with switch. Max surface temperature of 60 °C. (IP44)
| Type | Output [W] | Voltage [V] | LxHxD [mm] | Weight [kg] |
| TWT10321 | 300 | 230V~ | 345x205x123 | 1,5 |
| TWT10331 | 300 | 400V~ | 345x205x123 | 1,5 |
| TWT10521 | 500 | 230V~ | 465x205x123 | 2,0 |
| TWT10531 | 500 | 400V~ | 465x205x123 | 2,0 |
| TWT11021 | 1000 | 230V~ | 765x205x123 | 3,0 |
| TWT11031 | 1000 | 400V~ | 765x205x123 | 3,0 |
Thermowarm TWT300. White front, with cable and plug. (IP21)
| Type | Output [W] | Voltage [V] | LxHxD [mm] | Weight [kg] |
| TWT30321 | 300 | 230V~ | 345x205x123 | 1,5 |
| TWT30521 | 500 | 230V~ | 465x205x123 | 2,0 |
| TWT31021 | 1000 | 230V~ | 765x205x123 | 3,0 |
Thermowarm TWTC. Front in stainless steel, with cable and plug. (IP54)
| Type | Output [W] | Voltage [V] | LxHxD [mm] | Weight [kg] |
| TWT30321 | 300 | 230V~ | 345x205x123 | 1,5 |
| TWT30521 | 500 | 230V~ | 465x205x123 | 2,0 |
| TWT31021 | 1000 | 230V~ | 765x205x123 | 3,0 |

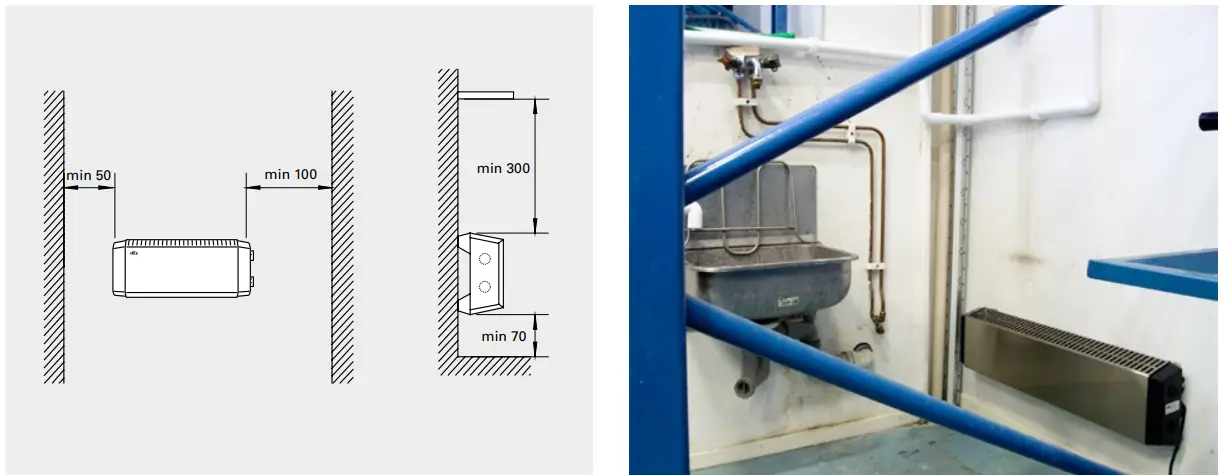

Minimum distances
In the stainless steel design Thermowarm withstands corrosive environments.
