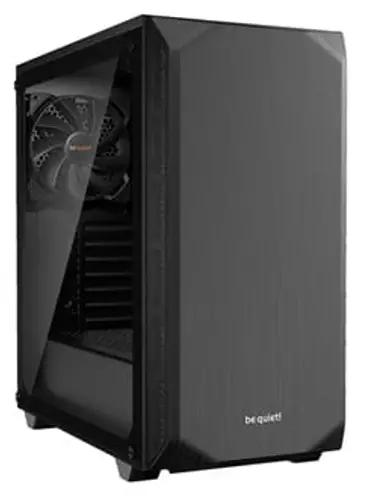

Pure Base 500 Essential PC Cases
User Manual
INTRODUCTION
Warranty
3-year manufacturer’s warranty for the consumer (original purchase from authorized be quiet! dealers only) Your original receipt of purchase will be required before warranty services are rendered. Please store it carefully. Manipulations and/or technical modifications of any kind, or damage due to the application of mechanical force, will void your warranty. To read the warranty terms and conditions in full, see Service/Warranty Conditions on our website at bequiet.com. Our General Terms and Conditions of Business also apply. For details please refer online under bequiet.com.
Manufacturer’s details
Listan GmbH I Biedenkamp 3a I 21509 Glinde I Germany Visit the contact section on bequiet.com for the right regional service information.
Monday through Friday 09:00 – 17:30 (UTC+1)
Tel. 0049 40 736 7686 – 44 Fax 0049 40-7367686-69
Email: [email protected]
Website: www.bequiet.com
Copyright
You are not allowed to reproduce, disclose, publish or store the contents of this documentation, or excerpts of it, without the prior written consent of Listan.
be quiet! is a registered trademark of Listan GmbH. Other products and company names mentioned in this documentation may be the brands or trademarks of their respective owners.
In accordance with company policy, all Listan products are subject to ongoing development. Listan reserves the right to make changes and improve-ments to any product described in this documentation without prior notice.
Under no circumstances shall Listan be held liable for loss of data or income, or for any specific, incidental, direct, or indirect damage, however it arises.
The content of this documentation represents the status at time of writing. Listan does not assume, whether expressed or implicit, any liability for the correctness or completeness of the content of this documentation, including, but not limited to the implicitguarantee of market suitability and fitness fora particular purpose, unless applicable laws or jurisdiction specifically stipulate such a liability.
Listan reserves the right to make changes to this documentation or to withdraw the documentation at any time without prior announcement.
SPECIFICATION
| Motherboard compatibility | ATX, M-ATX, Mini-ITX |
| Case type | Midi-Tower |
| PSU | PS2 ATX (not included) |
| Dimensions (L x W x H in mm) | 450 x 231 x 463 |
| Material | Steel (SGCC), ABS plastic, tempered glass* |
| Weight (kg) | 6.95 (net) / 7.92 (gross) 7.53 (net) / 8.49 (gross)* |
| I/O panel | 2x USB 3.0, HD audio (microphone + audio) |
| PCI slots | 7 |
| Drive bays | up to 2x 3.5″ (2 included) up to 5x 2.5 (5 included) |
| Preinstalled fans (mm) / (rpm) | Front: lx Pure Wings 2 140 / 900 Rear: lx Pure Wings 2 140 / 900 |
| Optional fans (mm) | Front: lx 140 / 3x 120 Top: 2x 140/120 |
| Optional radiators (mm) | Front: 120, 140, 240, 280, 360 Top: 120, 240 Rear: 120, 140 |
| Maximum dimensions (mm) | CPU cooler: 190mm PSU: 258 / 225 (depending on position of the HDD cage) GPU: 369 |
| Noise cancellation | Sound insulation mats (front / top (regular top cover) / sides) |

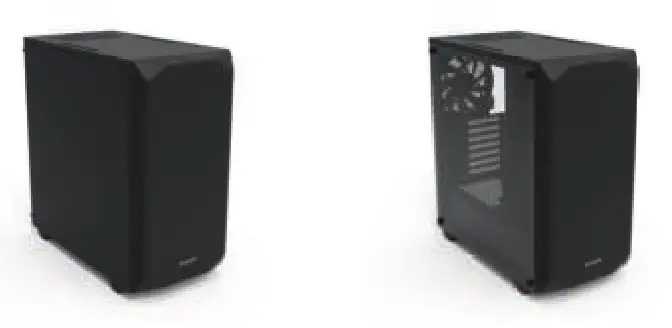

*Pure Base 500 Window
CONTENTS
| Images | Part Name | Amount | Usage |
 | 6432 screw | 13 | Affixing the motherboard and PSU bracket |
| M3 screw | 12 | Fastening the SSD |
 | HDD screw | 8 | Affixing the HDD |
 | Velcro ties | 4 | Cable management |
 | Cable ties | 6 | Cable management |

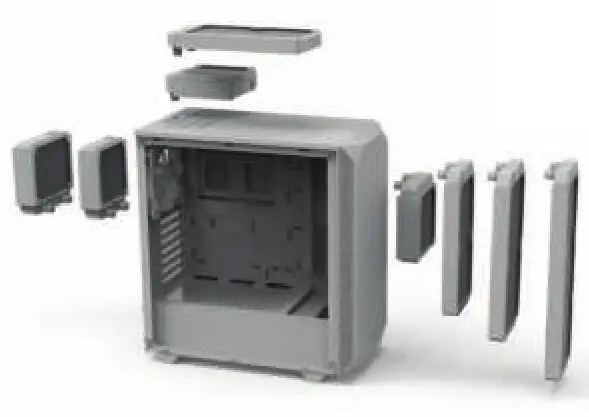

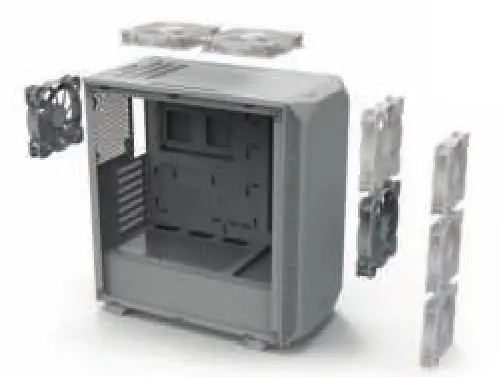

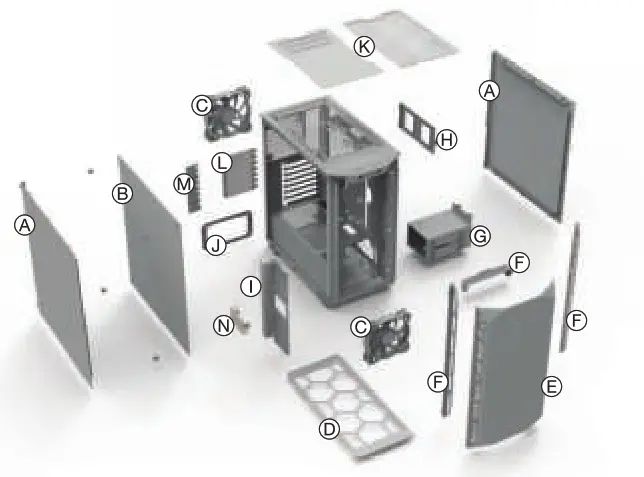

EXPLODED VIEW AND DESCRIPTION OF PARTS
| A | Side panel | H | SSD bracket |
| B | Side window of tempered glass* | I | SSD Panel |
| C | Pure Wings 2 fan | J | PSU bracket |
| D | Bottom dust filter | K | Top cover |
| E | Case front | L | PCI Express cover |
| F | Front dust filter | M | PCI Express Bracket |
| G | Double HDD Cage | N | SSD Panel slot cover |
*Pure Base 500 Window
FAN COMPATIBILITY
| Position | Size (mm) |
| Top | 2x 120 / 140 |
| Front | 2x 140, 3x 120 |
| Rear | lx 120 / 140 |
RADIATOR COMPATIBILITY
| Position | Size (mm) |
| Top | 120,240 |
| Front | 120,140,240,280,360 |
| Rear | 120,140 |

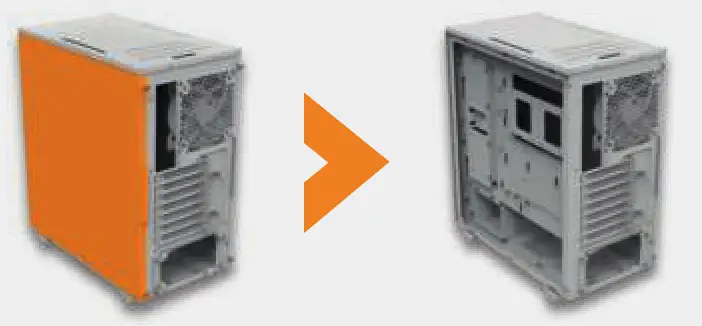

REMOVING THE SIDE PANEL

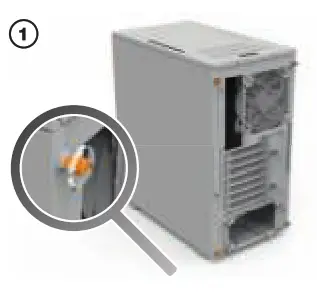

REMOVAL OF THE SIDE WINDOW
CHANGING THE TOP COVER

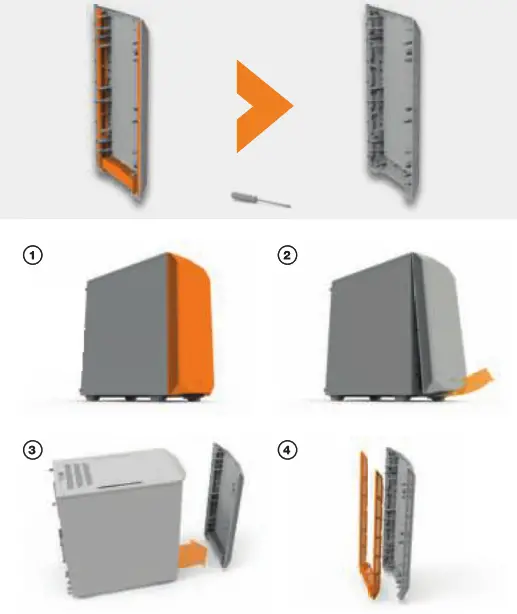

REMOVING THE FRONT DUST FILTER

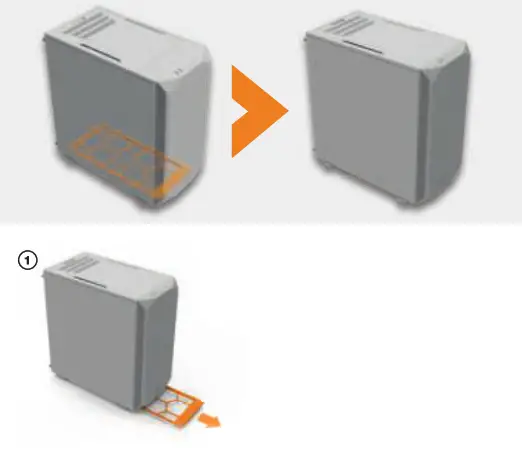

REMOVING THE BOTTOM DUST FILTER

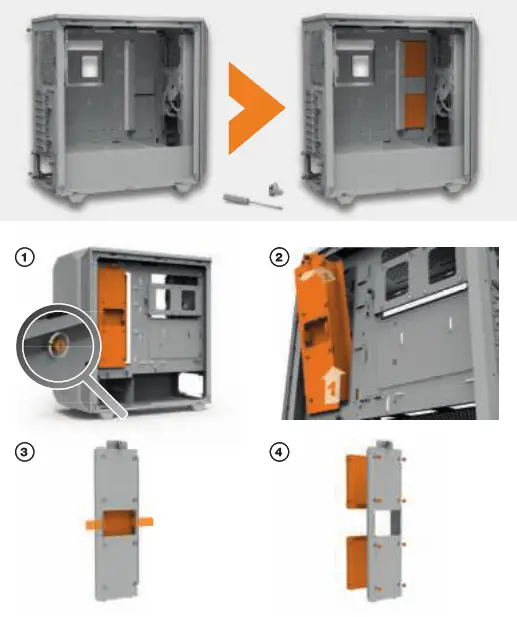

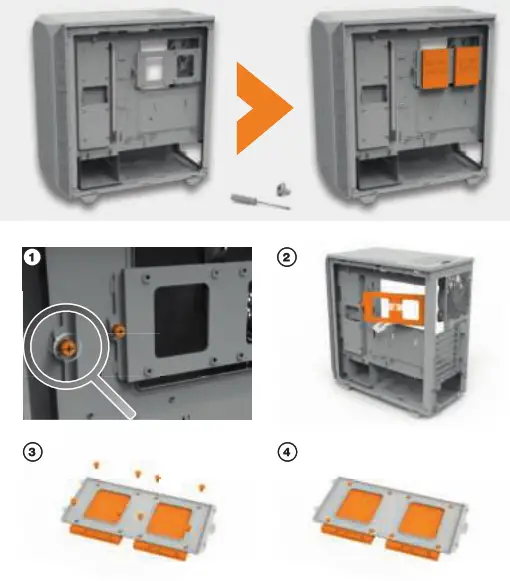

INSTALLATION OF SSDS ON THE PANEL
INSTALLATION OF SSDS ON THE BRACKET

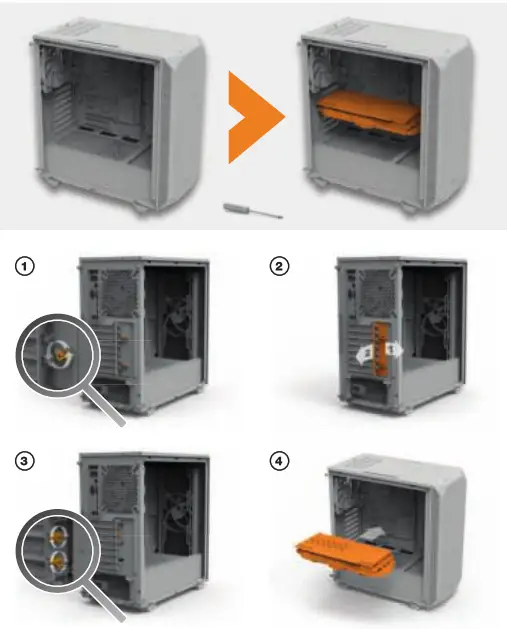

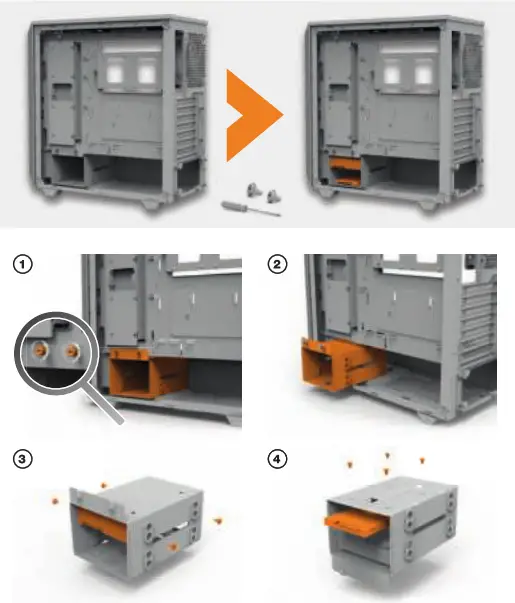

INSTALLING DRIVES INTO THE HOD CAGE

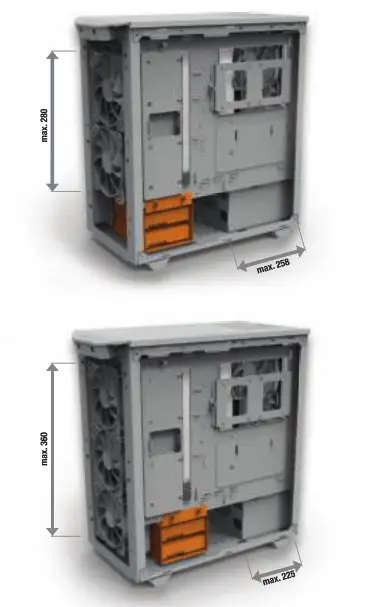

HDD CAGE POSITION

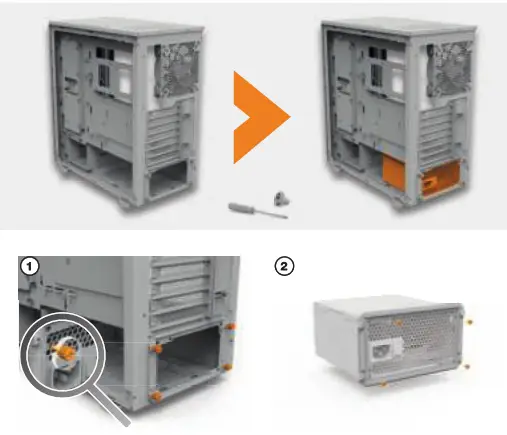

INSTALLING THE POWER SUPPLY
INSTALLING THE MOTHERBOARD
NSTALLATION OF GRAPHICS CARD
COMPLETE SYSTEM

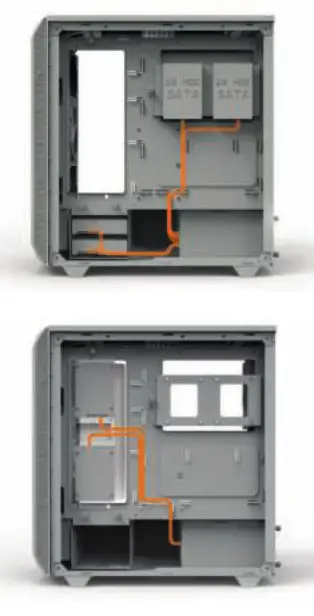

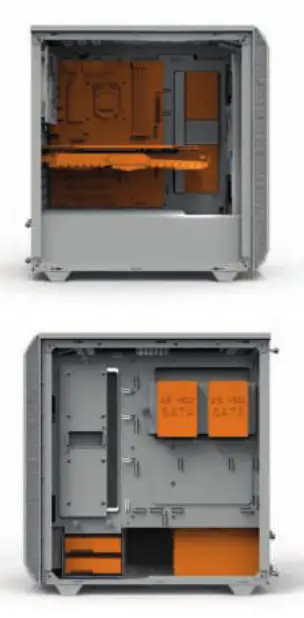

CABLE MANAGEMENT
