WASSERSTEIN No-Drill Mount for Google Nest Doorbell

In the Box

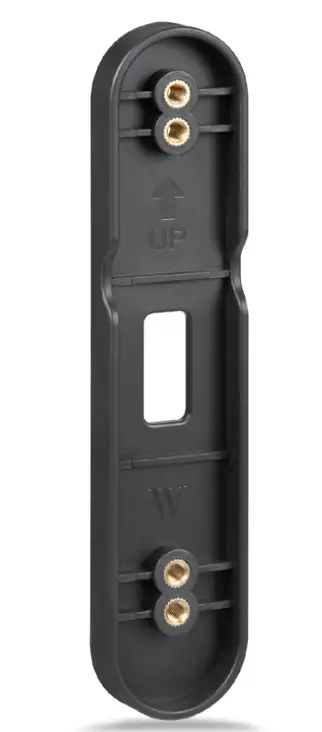

• 1 x no-drill mount

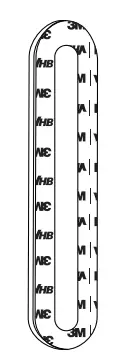

• 1 x extra adhesive tape

• 2 x short screws

• 2 x wedge screws


Safety Information

• Read this manual carefully before use. Failure to follow the safety instructions may cause injury or damage to your property.
• Keep away from children as it could be a choking hazard to them.
• To be used with the Google Nest Doorbell (battery) only.

Pre-Installation

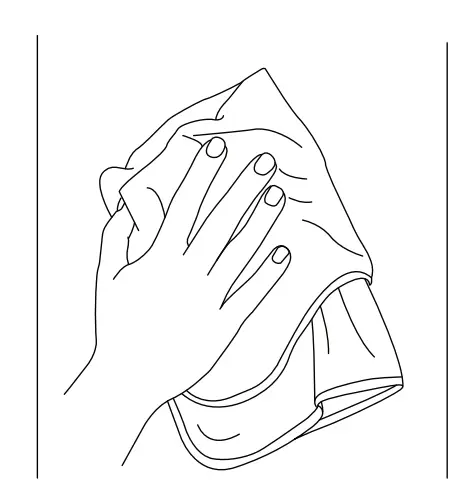

1. Ensure the designated surface is dry and clean of any debris
   Note: For re-installations, make sure there are no traces of adhesive residue left before sticking a new tape.
2. For optimal binding, the tape needs to be installed at a temperature of at least 60°F (15°C).

Installation

Note: The surface can be damaged when removing the mount from the wall.

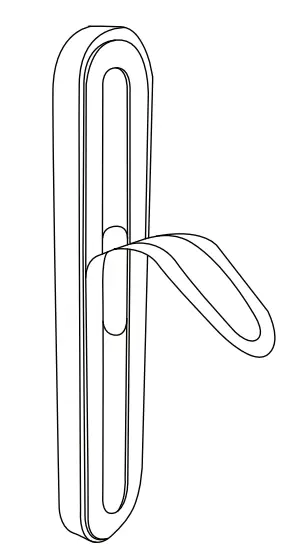

1. Remove the protective film without touching the adhesive part.
2. Carefully position the tape and stick the mount onto a designated surface.

3. Apply pressure over the mount to facilitate adhesion. A rigid surface may require additional force.

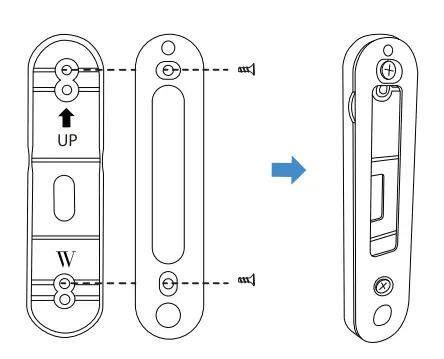

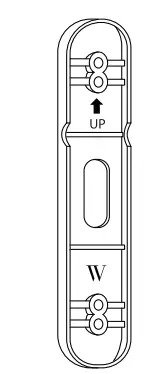

4. Screw the Google Nest Doorbell (battery) backplate into the holes as shown.

   If a wedge is needed, attach it to the holes shown instead. Then screw in the doorbell backplate to the wedge.

5. Attach the doorbell to the backplate. Note: If solar panel is installed for the doorbell, connect the wires to the doorbell and make sure the wires com out from the opening at both sides.

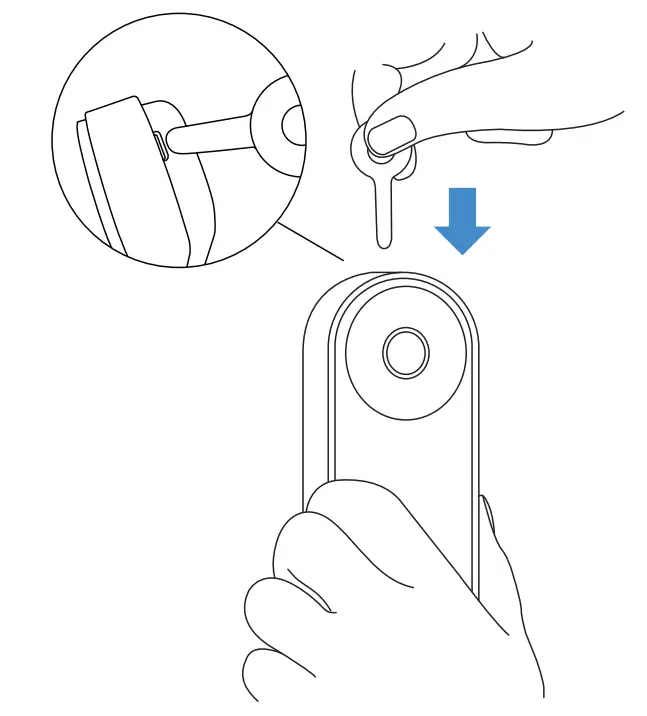

6. To charge the doorbell, remove it from the mount using the key that comes with the doorbell.

Removing the Mount

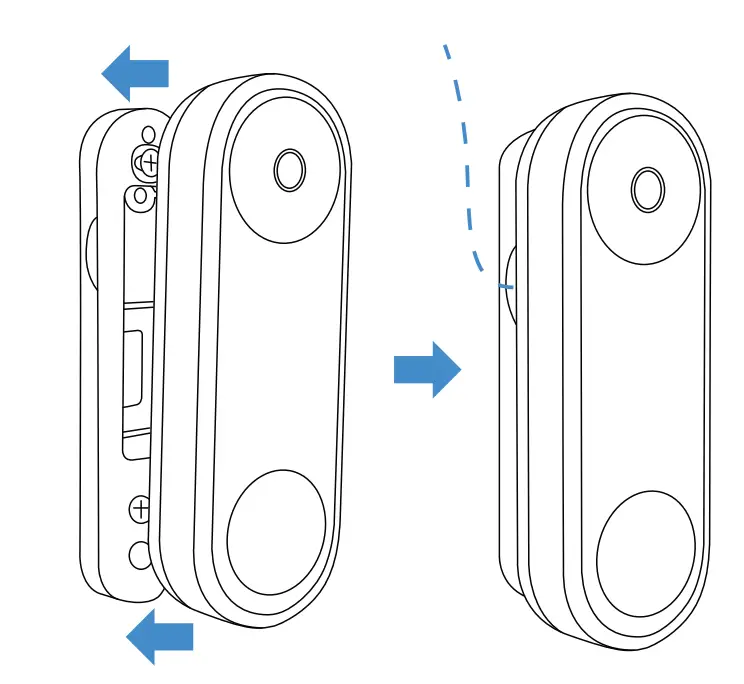

1. Remove the Google Nest Doorbell (battery) and the backplate from the mount.

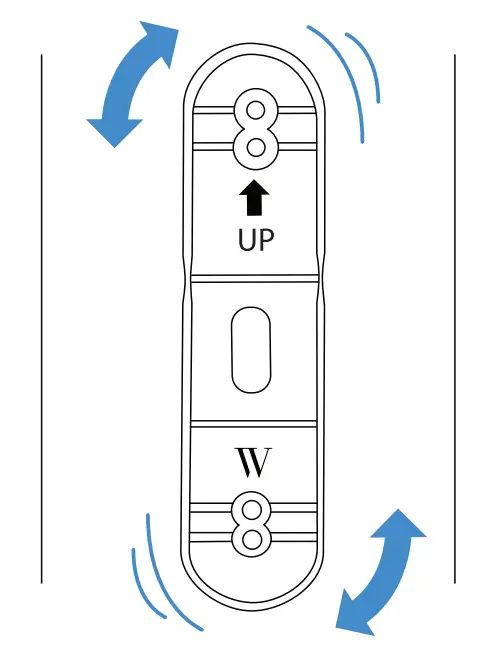

2. Gently wiggle the mount from side to side to prevent any damage to the wall surface.

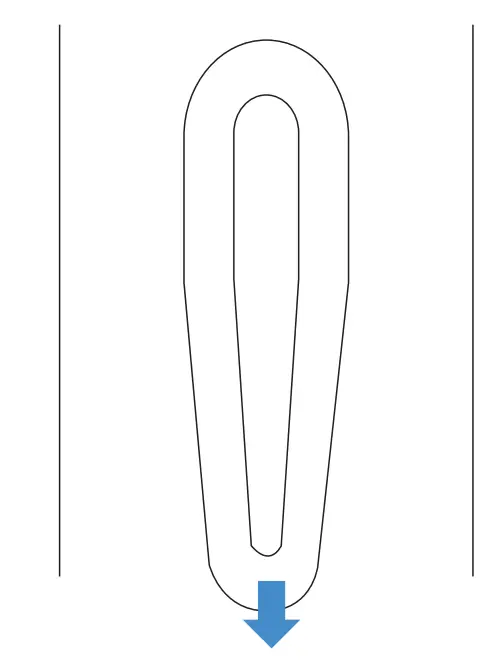

3. Easily remove the tape by pulling it downwards.
4. Clean any remaining adhesive residue left from the wall.

Get More Support

Scan the QR code below or email us at: [email protected]

Google Nest Video Doorbell (battery) is not included. Wasserstein is not affiliated with Google LLC. Wasserstein is a trademark of Dropcases Ltd. Google Nest Video Doorbell (battery) is a trademark of Google LLC.

For more information, please visit:
www.wasserstein-home.com
Or contact us at:
[email protected]
Made in China
