Wasserstein 060921 Anti-theft Mount For Google Nest Cam User Manual

060921 Anti-Theft Mount For Google Nest Cam
User Manual

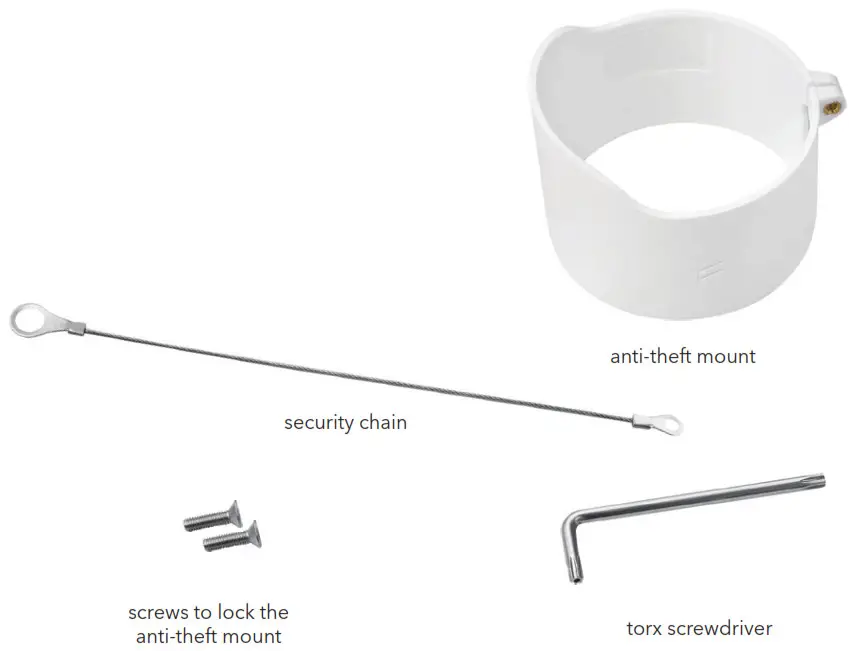

In the Box

• 1 x anti-theft mount
• 2 x screws to lock the anti-theft mount
• 1 x security chain
• 1 x torx screwdriver
• 1 x user manual

Pre-Installation

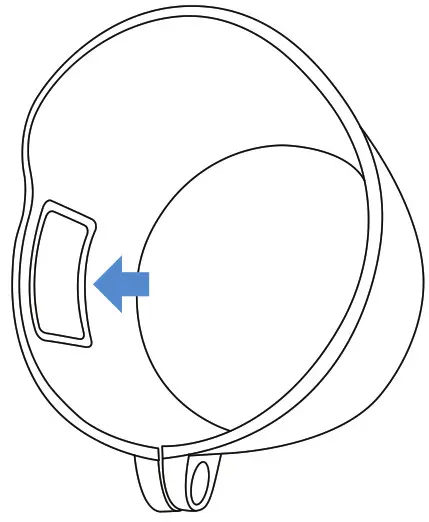

• Peel the plastic protection layers away from the silicone holders inside the Anti-Theft Mount.

Installation

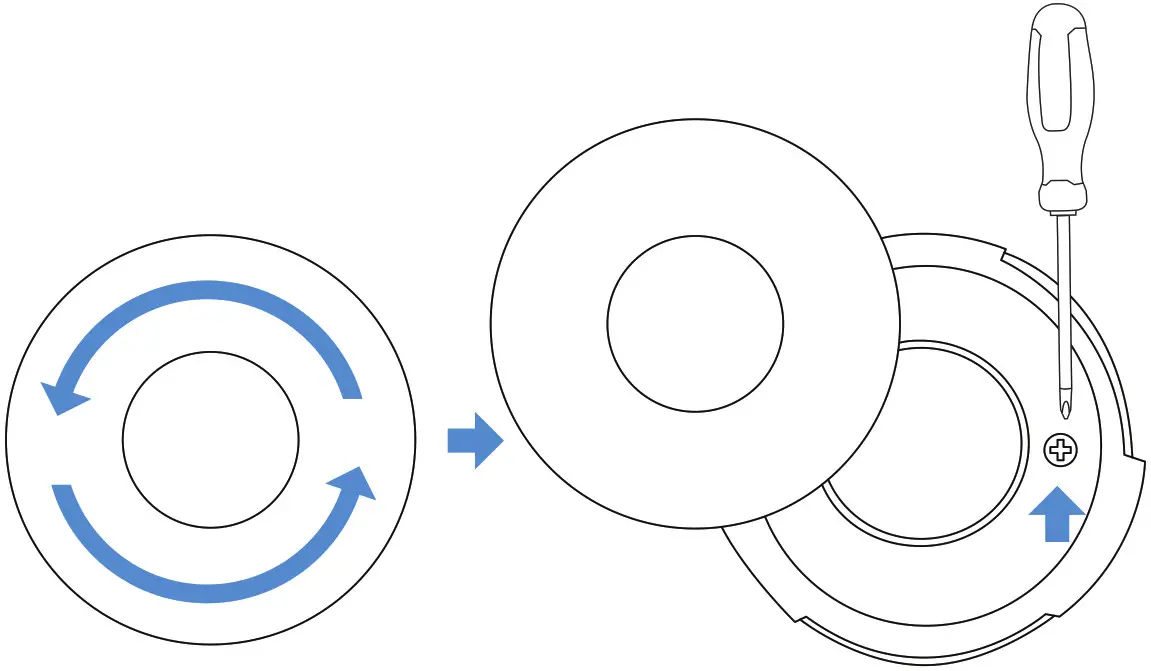

1. Unscrew the magnetic mount of your camera if you have previously installed it on your wall.

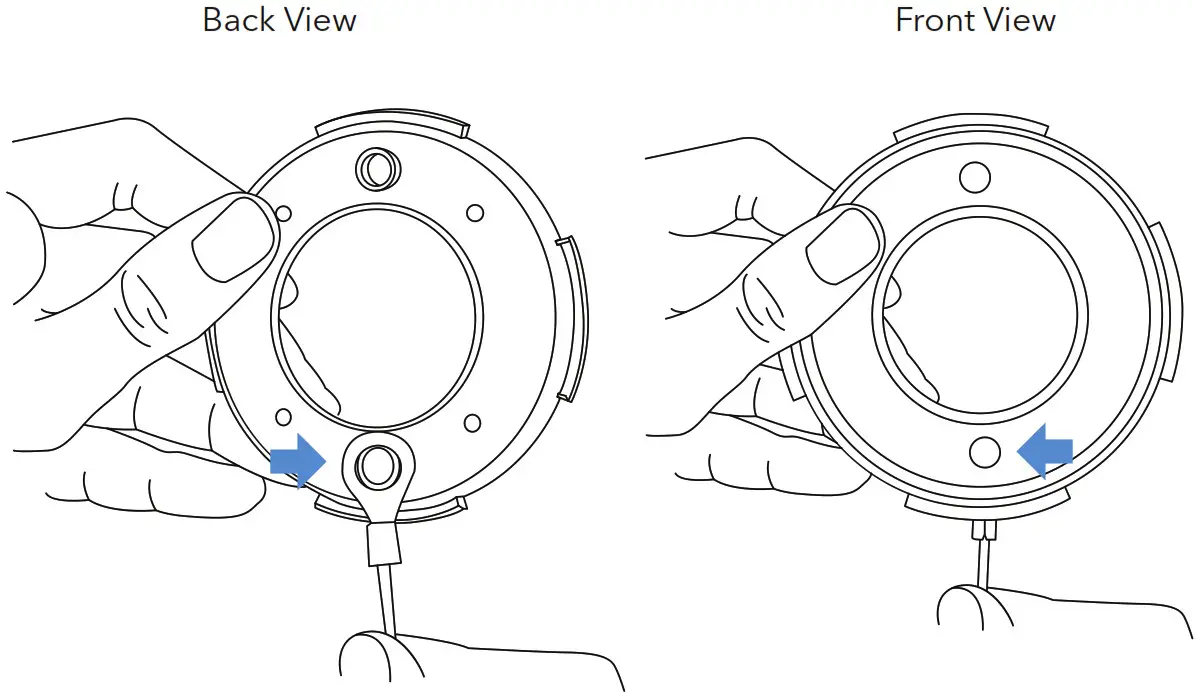

2. Place the security chain (the bottom end with the big hole) underneath the magnetic plate of the camera behind the screw hole.

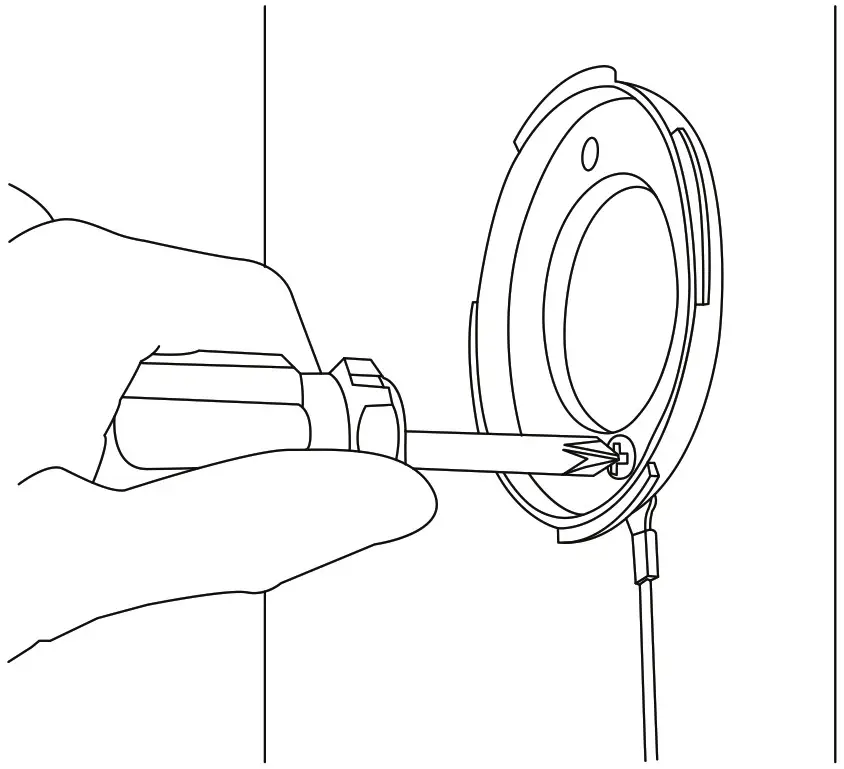

3. Making sure the holes of the security chain and magnetic plate are aligned, mount the magnetic mount to the wall.
   Note: Make sure that the security chain is underneath the plate. The security chain touches the wall first and then the plate.

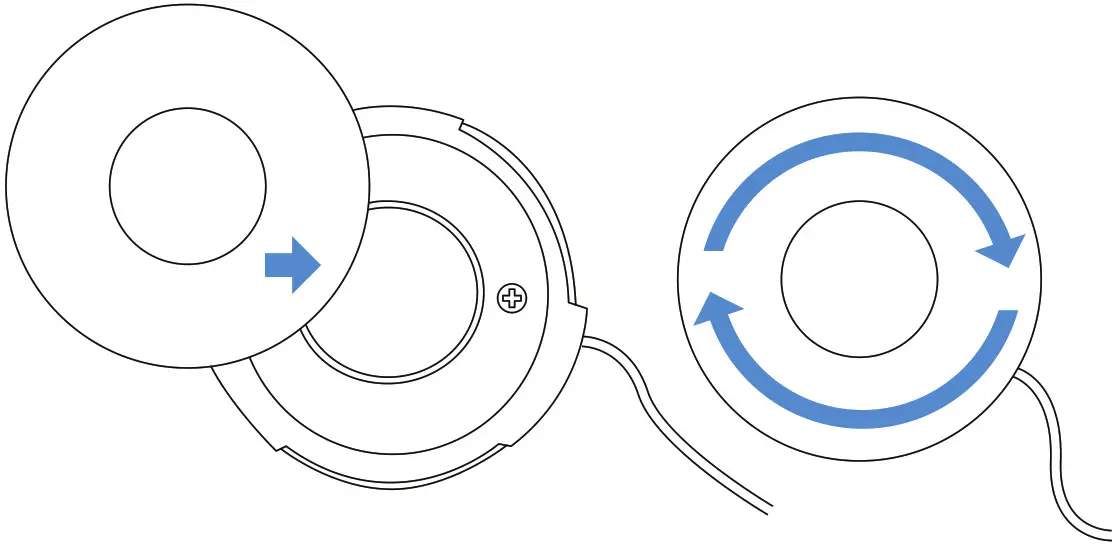

4. Attach the magnetic cover onto the mount and turn it clockwise.
5. Slide in the Anti-Theft Mount onto the camera. Ensure that the speaker/charging port openings at the bottom are aligned.
   Note: The screw holes of the Anti-Theft Mount should be towards the front of the camera.

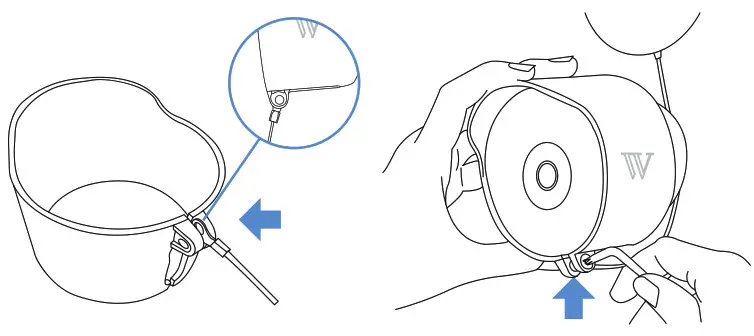

6. Make sure that the end of the security chain with the small hole goes in between the screw holes of the mount. Use the torx screwdriver to tighten the mount from the right side and lock the security chain.

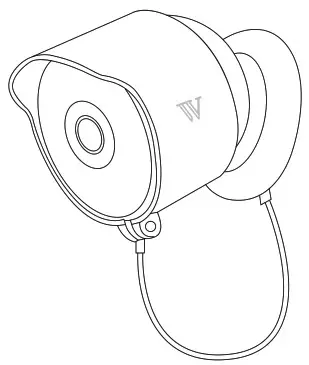

7. Attach your Nest Cam to the magnetic mount.

Get More Support

Scan the QR code below or, email us at [email protected]

https://qrco.de/bcJnmh

The Wasserstein Anti-Theft Mount has been certified by Wasserstein to meet Google’s compatibility standards. Google is not responsible for the operation of this product or its compliance with any applicable safety or other requirements.
Learn more at g.co/madeforgoogle.
Google’s “made for” badge, Google Nest Cam (battery), and related marks are trademarks of Google LLC.

Google Nest Cam (battery) is not included.
Wasserstein is not affiliated with Google LLC.
Wasserstein is a trademark of Dropcases Ltd.
Google Nest Cam (battery) is a trademark of Google LLC.

For more information, please visit:
www.wasserstein-home.com
or contact us at:
[email protected]
Made in China
