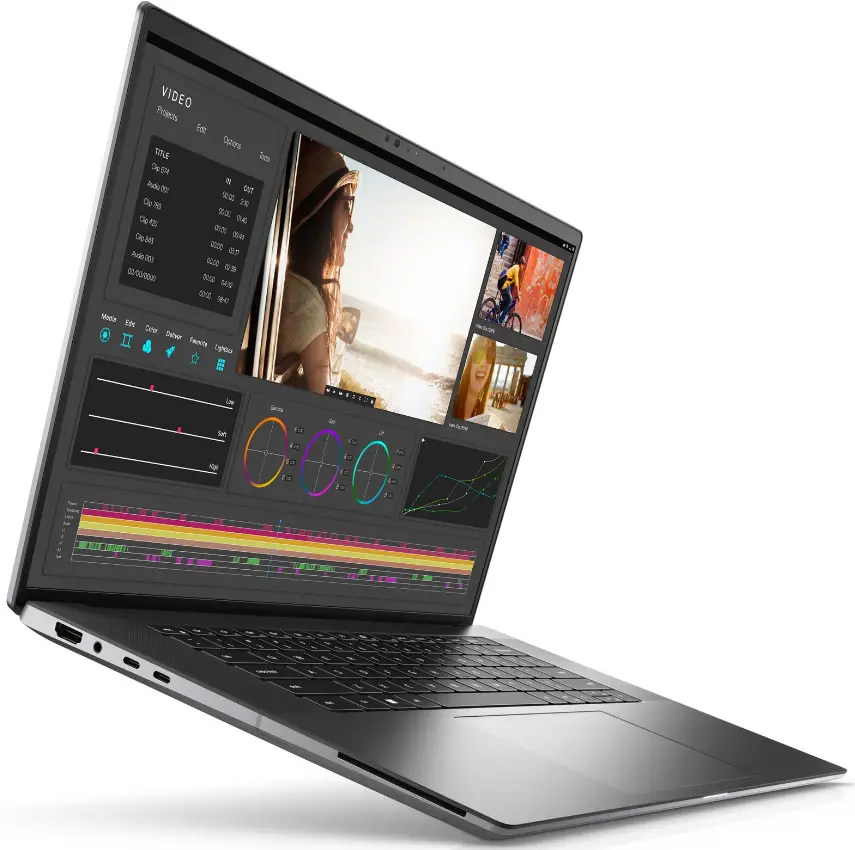

DELL Precision 5680 Mobile Workstation Laptop

Product Information

Product Name: Dell Precision 5680
Regulatory Model/Type: P123F / P123F001
Certifications: MCMC, Nigerian Communications Commission, RoHS, CNS15663
Input Voltage: 100-240 V AC
Input Frequency: 50-60 Hz
Output Voltage: 20 / 28 V DC
Maximum Operating Temperature: Not specified
Power Adapter: USB 2.0, USB 3.0/USB 3.1 Gen 1, USB 3.0/USB 3.1 with PowerShare, PowerShare USB, USB 3.1 Type-C, eSATA Thunderbolt

Product Usage Instructions

Before using the product, read the safety information that shipped with your computer.
For additional safety best practices information, see the Regulatory Compliance Homepage at Dell.com/regulatory_compliance.
Do not remove the computer cover unless you need to install internal accessories for your computer. For instructions on removing and replacing parts, see the Owner’s or Service Manual at Dell.com/support.
Retain the filler brackets or cards that ship with your computer. Installing filler brackets or filler cards over empty card-slot openings is necessary to maintain FCC certification of the computer. The filler brackets and filler cards keep dust and dirt out of your computer and maintain the airflow that cools your computer.
To power on the computer, connect the power adapter to the appropriate port on the computer (USB 2.0, USB 3.0/USB 3.1 Gen 1, USB 3.0/USB 3.1 with PowerShare, PowerShare USB, USB 3.1 Type-C, or eSATA Thunderbolt) and plug it into a power outlet.
If you have a display connected, also power it on.
For further information on the product, refer to the user manual or contact the manufacturer’s support team.

Regulatory Model/Type

P123F / P123F001

MCMC certification mark

Windows
In Windows Search, type System. In the search results, click System.

Ubuntu
On the desktop, click → About This Computer.

Connection and use of this communications equipment is permitted by the Nigerian Communications Commission.

http://www.dell.com/learn/tw/zh/twcorp1/envt-info-materials

Dell Precision 5680 (P123F / P123F001)
[email protected]
Warning: Read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at Dell.com/regulatory_compliance.
Do not remove the computer cover unless you need to install internal accessories for your computer. For instructions on removing and replacing parts, see the Owner’s or Service Manual at Dell.com/support.
Retain the filler brackets or cards that ship with your computer. Installing filler brackets or filler cards over empty card-slot openings is necessary to maintain FCC certification of the computer. The filler brackets and filler cards keep dust and dirt out of your computer and maintain the airflow that cools your computer.

Power Adapter

Input voltage 100-240 V AC
Input current (maximum) 1.7 / 2.2 A
Input frequency 50-60 Hz
Output current 5.0 / 5.893 A
Output voltage 20 / 28 V DC
Maximum operating temperature 35°C ( °F)

Power

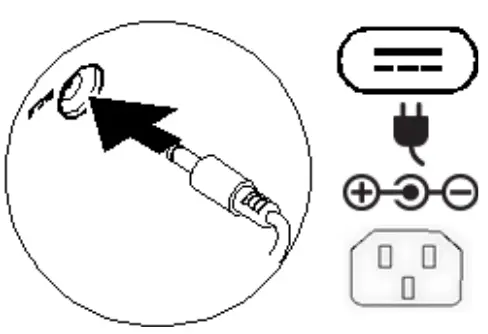

Connect the power adapter or the power cable to your computer and to the display, if required.
Power on the computer (and the display, if connected).
Depending on your computer configuration, some ports or connectors may not be available.

Icons

Power adapter
USB 2.0
USB 3.0/USB 3.1 Gen 1
USB 3.0/USB 3.1 with PowerShare
USB 3.1 Type-C
eSATA
Thunderbolt
Thunderbolt 4 ports with Power delivery and DisplayPort (USB-C)
Network
VGA
DVI
HDMI
DisplayPort
Mini DisplayPort
TV-in
External Graphics Port
Infrared (IR) emitter
Headphone/Audio-out
Headset
Microphone
Line-in
Line-out/Speakers: front left-right
Speakers: rear left-right
Speakers: side left-right
Speakers: Audio center/subwoofer
S/PDIF
Screen-rotation lock
SIM-card slot
ExpressCard slot
Media-card reader
Security-cable slot
Power/Battery-status light
Battery-status light
Hard-drive activity light
Wi-Fi light
Bluetooth light

More Information

Information for NOM, or Official Mexican Standard

The information provided below will be displayed on the devices described in this document, in accordance with the requirements of the Official Mexican Standard (NOM):
