Dell Precision 5560 15.6 Inch Mobile Workstation User Guide

Precision 5560 15.6 Inch Mobile Workstation
User Guide

Precision 5560 15.6 Inch Mobile Workstation

Regulatory Model: P91F
Regulatory Type: P91F002
June 2021
Rev. A00
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

Set up your Precision 5560

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

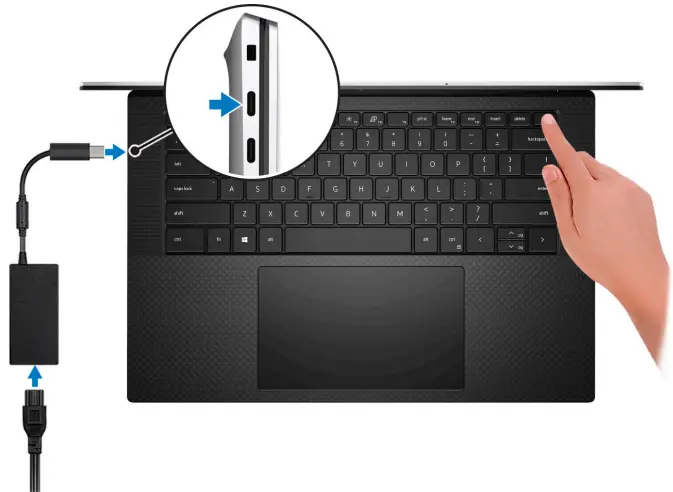

1. Connect the power adapter to a power source and to either of the USB Type-C port with Power Delivery. Then press the power button on your computer.
   NOTE: You can charge your system by connecting the power adapter to one of the two Thunderbolt 4 (USB Type-C)
   ports that are located on the left side of your computer or to the USB 3.2 Gen 2 (Type-C) port located on the right side
   of your computer.
   NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the
   power adapter is connected to your computer when it is turned on for the first time.
2. Complete the operating system setup.
   Table 1. Operating system setup

   Operating system	Setup instructions
   Windows	Follow the on-screen instructions to complete the setup: ● Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. ● If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account. ● On the Support and Protection screen, enter your contact details.
   Ubuntu	Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, see the knowledge base articles https://www.dell.com/support/kbdoc/en-in/000131676/how-to-configure-ubuntu-linuxafter-it-s-first-installed-on-your-dell-pc and https://www.dell.com/support/article/sln151748/how-to-configure-ubuntu-linux-after-its-first-installed-on-your-dell-pc at https://www.dell.com/support. NOTE: All Dell apps are not available on Ubuntu.

3. Locate and use Dell apps from the Windows Start menu—Recommended.
   Table 2. Locate Dell apps


   Resources	Description
   	Dell Product Registration Register your computer with Dell.
   	Dell Help & Support Access help and support for your computer.
   	Dell SupportAssist Pre-boot System Performance Check Dell SupportAssist Preboot System Performance Check is the smart technology that keeps your computer running at its best by optimizing settings, detecting issues, removing viruses and notifies when you must make computer updates. Dell SupportAssist Pre-boot System Performance Check proactively checks the health of your computer hardware and software. When an issue is detected, the necessary computer state information is sent to Dell to begin troubleshooting. Dell SupportAssist Pre-boot System Performance Check is pre-installed on most of the Dell devices running Windows operating system. For more information, see Dell SupportAssist Pre-boot System Performance Check for Home PCs User Guide on https://www.dell.com/serviceabilitytools. NOTE: In Dell SupportAssist Pre-boot System Performance Check, click the warranty expiry date to renew or upgrade your warranty.
   	Dell Update Dell Update performs critical fixes and updates latest available device on your computer. For more information about using Dell Update, see the knowledge base article https://www.dell.com/support/kbdoc/en-in/000149088/dell-update-overview-and-common-questions at https://www.dell.com/support/home/product-support/product/dell-supportassist-pcs-tablets/manuals.
   	Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article https://www.dell.com/support/kbdoc/en-in/000129837/dell-digital-delivery-installing-using-troubleshooting-and-faq-s at https://www.dell.com/support/home/product-support/product/dell-supportassist-pcs-tablets/manuals.

Views of Precision 5560

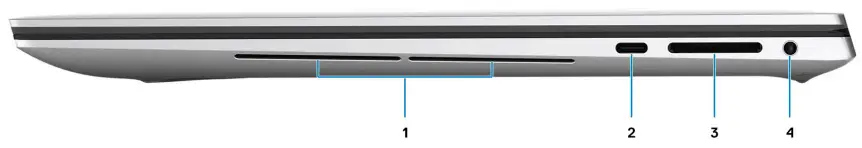

Right

1. Speakers
   Provide audio output.
2. USB 3.2 Gen 2 Type-C port with PowerDelivery and DisplayPort Alt Mode
   Connect devices such as external storage devices, printers, and external displays.
   Supports Power Delivery that enables two-way power supply between devices. Provides up to 15 W power output that enables faster charging.
   NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
3. SD-card slot
   Reads from and writes to the SD card. The computer supports the following card types:
   ● Secure Digital (SD)
   ● Secure Digital High Capacity (SDHC)
   ● Secure Digital Extended Capacity (SDXC)
4. Headset port
   Connect headphones or a headset (headphone and microphone combo).

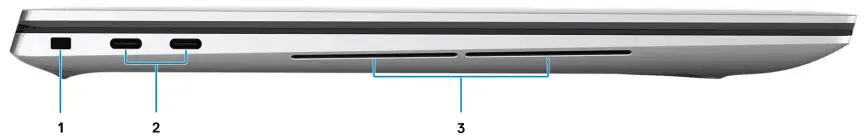

Left

1. Wedge-shaped lock slot
   Connect a security cable to prevent unauthorized movement of your computer.
2. Thunderbolt 4.0 port with Power Delivery
   Supports USB4, DisplayPort 1.4, Thunderbolt 4 and also enables you to connect to an external display using a display adapter.
   Provides data transfer rates of up to 40 Gbps for USB4 and Thunderbolt 4.
   NOTE: You can connect a Dell Docking Station to the Thunderbolt 4 ports. For more information, see the knowledge base article 000124295 at https://www.dell.com/support/.
   NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
   NOTE: USB4 is backward compatible with USB 3.2, USB 2.0, and Thunderbolt 3.
   NOTE: Thunderbolt 4 supports two 4K displays or one 8K display.
3. Speakers
   Provide audio output.

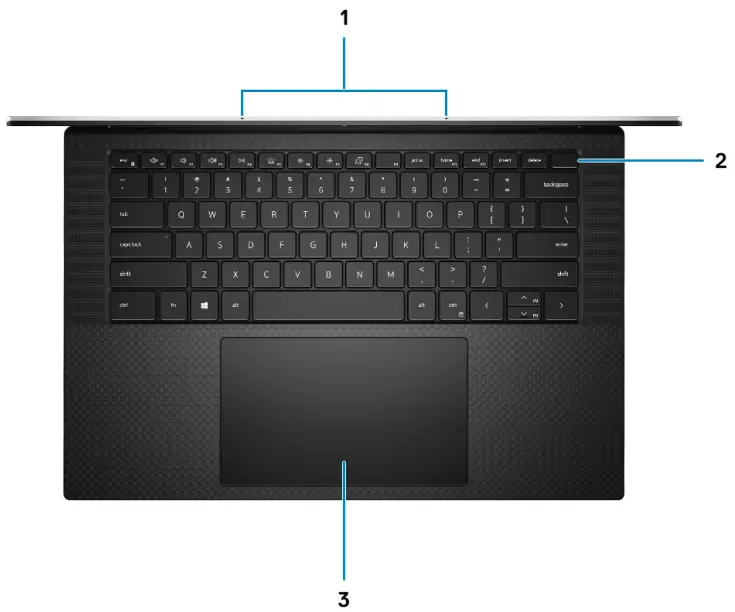

Top

1. Digital-array microphones (2)
   Provide digital sound input for audio recording, voice calls, and so on.
2. Power button with optional fingerprint reader
   Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
   When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 4 seconds to force shut-down the computer.
   If the power button has a fingerprint reader, place your finger on the power button to log in.
   NOTE: Your computer can store up to 20 fingerprints in its memory.
3. Precision touchpad
   Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.

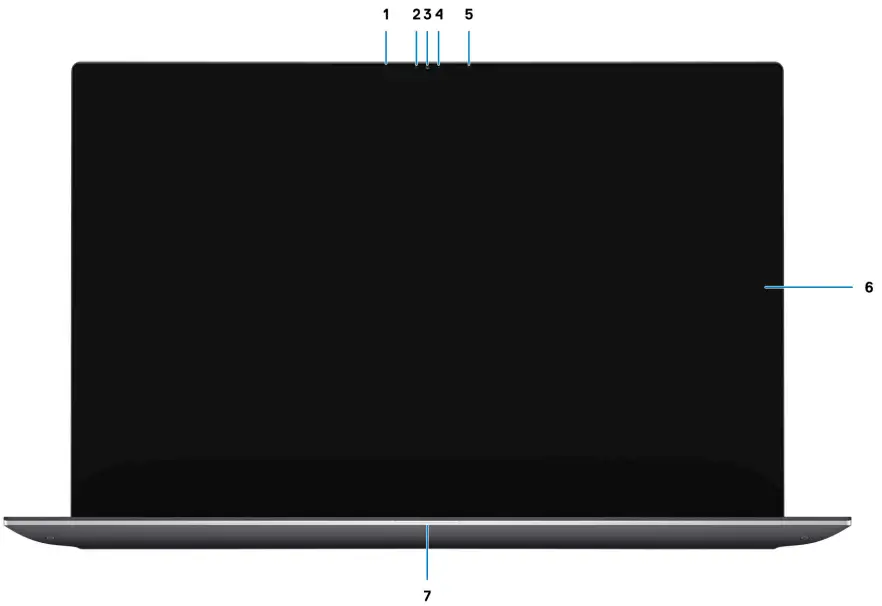

Front

1. Infrared emitter
   Emits infrared light, which enables the infrared camera to sense and track motion.
2. Ambient-light sensor
   The sensor detects the ambient light and automatically adjusts the keyboard backlight and display brightness.
3. RGB-infrared camera
   This combined camera supports both infrared Windows Hello facial recognition and standard RGB imaging for photos and videos.
4. Camera-status light
   Turns on when the camera is in use.
5. Infrared emitter
   Emits infrared light, which enables the infrared camera to sense and track motion.
6. LCD panel
   Provides visual output to the user.
7. Battery-status light
   Indicates the battery-charge status.
   Solid white—Power adapter is connected and the battery has more than 5% charge.
   Amber—Computer is running on battery and the battery has less than 5% charge.
   Off—Power adapter is disconnected or the battery is fully charged.

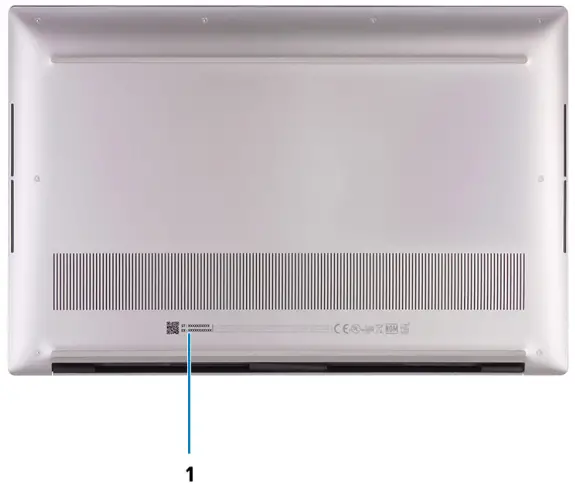

Bottom1. Service Tag and regulatory labels
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. The regulatory label contains regulatory information of your computer.
Specifications of Precision 5560
Battery Charge and Status LED
Table 3. Battery Charge and Status LED Indicator

• SO (ON) – System is turned on.
• S4 (Hibernate) – The system consumes the least power compared to all other sleep states. The system is almost at an OFF state, expect for a trickle power. The context data is written to hard drive.
• S5 (OFF) – The system is in a shutdown state.

Specifications of Precision 5560

Dimensions and weight
The following table lists the height, width, depth, and weight of your Precision 5560.
Table 4. Dimensions and weight

Description		Values
Height:
	Front height	7.70 mm (0.30 in.)
	Rear height	11.65 mm (0.45 in.)
Width		344.40 mm (13.56 in.)
Depth		230.30 mm (9.07 in.)
Weight NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.		4.50 lb (2.04 Kg)

Processor
The following table lists the details of the processors supported by your Precision 5560.
Table 5. Processor

Chipset
Table 6. Chipset

Operating system
Your Precision 5560 supports the following operating systems:

• Windows 10 Home, 64-bit
• Windows 10 Pro, 64-bit
• Windows 10 Pro for Workstation, 64-bit
• Ubuntu 20.04 LTS, 64-bit
• Red Hat Enterprise Linux 8.2

Memory
The following table lists the memory specifications of your Precision 5560.
Table 7. Memory specifications

External ports
The following table lists the external ports on your Precision 5560.
Table 8. External ports

Description	Values
USB ports	● One USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode ● Two Thunderbolt 4 ports with Power Delivery
Audio port	One Universal audio (headphone and microphone combo) port
Video port/ports	USB Type-C port with DisplayPort Alt mode and Thunderbolt 4
Media-card reader	One SD card slot
Power-adapter port	USB Type-C ports supports Power Delivery NOTE: Connect the power adaptor (USB Type-C) to only one of the three USB Type-C or Thunderbolt 4 ports.
Security-cable slot	One wedge-shaped security slot

Internal slots
The following table lists the internal slots of your Precision 5560.
Table 9. Internal slots

Description	Values
M.2	Two M.2 2230/2280 slot for solid-state drives NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article 000144170 at www.dell.com/support.

Wireless module
The following table lists the Wireless Local Area Network (WLAN) module supported on your Precision 5560.
Table 10. Wireless module specifications

Table 10. Wireless module specifications (continued)

Audio
The following table lists the audio specifications of your Precision 5560.
Table 11. Audio specifications

Storage
This section lists the storage options on your Precision 5560.
Your computer supports the following configurations:

• One M.2 2230 or M.2 2280 solid-state drive
• A combination of two M.2 solid-state drives (M.2 2230 or M.2 2280)
  NOTE: Supports RAID 0 and RAID 1.

The primary drive of your computer varies with the storage configuration. For computers:

• With two M.2 drives SSD1 is the primary drive.
  NOTE: The primary drive of your computer is the M.2 solid-state drive where the operating system is installed.

Table 12. Storage specifications

Media-card reader
The following table lists the media cards supported by your Precision 5560.
Table 13. Media-card reader specifications

Description	Values
Media-card type	One SD-card slot
Media-cards supported	● Secure Digital (SD) ● Secure Digital High Capacity (SDHC) ● Secure Digital Extended Capacity (SDXC)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

Keyboard
The following table lists the keyboard specifications of your Precision 5560.
Table 14. Keyboard specifications

Description	Values
Keyboard type	Backlit keyboard
Keyboard layout	QWERTY
Number of keys	● United States and Canada: 79 keys ● United Kingdom: 80 keys ● Japan: 83 keys
Keyboard size	X=19.05 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program. For more information see Keyboard shortcuts of Precision5560 on page 26.

Camera
The following table lists the camera specifications of your Precision 5560.
Table 15. Camera specifications

Touchpad
The following table lists the touchpad specifications of your Precision 5560.
Table 16. Touchpad specifications

Power adapter
The following table lists the power adapter specifications of your Precision 5560.
Table 17. Power adapter specifications

Description		Option one	Option two
Type		90 W AC adapter, USB Type-C (with UMA graphics)	130 W AC adapter, USB Type-C (with Discrete graphics)
Input voltage		100 VAC-240 VAC	100 VAC-240 VAC
Input frequency		50 Hz-60 Hz	50 Hz-60 Hz
Input current (maximum)		1.50 A	1.80 A
Output current (continuous)		● 20 V/4.50 A ● 15 V/3 A ● 9 V/3 A ● 5 V/3 A	● 20 V/6.50 A ● 5 V/1 A
Rated output voltage		● 20 VDC ● 15 VDC ● 9 VDC ● 5 VDC	● 20 VDC ● 5 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)	0 °C to 40 °C (32 °F to 104 °F)
	Storage	-40°C to 70°C (-40°F to 158°F)	-40 °C to 70 °C (-40 °F to 158 °F)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery
The following table lists the battery specifications of your Precision 5560.
Table 18. Battery specifications

Table 18. Battery specifications (continued)

Description	Option one	Option two
Operating	Charge: 0 °C to 45 °C (32 °F to 113 °F) Discharge:0 °C to 60 °C (32 °F to 149 °F)	Charge: 0°C to 45°C (32°F to 113°F) Discharge: 0 C to 60°C (32°F to 149°F)
Storage	–20 °C to 60 °C (4 °F to 149 °F)	–20°C to 60°C (4°F to 149°F)
Battery operating time	Vary depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Vary depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE: Control functions like the charging time, duration, start and end time on the Dell Power Manager application.	2 hr (Express charge), 3 hr on Standard charge (when the computer is off)	2 hr (Express charge), 3 hr on Standard charge (when the computer is off)
Coin-cell battery	Main battery reserves 2% of capacity for RTC function.

Display
The following table lists the display specifications of your Precision 5560.
Table 19. Display specifications

Table 19. Display specifications (continued)

Fingerprint reader
The following table lists the fingerprint-reader specifications of your Precision 5560.
NOTE: The fingerprint reader is located on the power button.
Table 20. Fingerprint reader specifications

Description	Values
Fingerprint-reader sensor technology	Capacitive
Fingerprint-reader sensor resolution	500 DPI
Fingerprint-reader sensor pixel size	108 x 88 NOTE: Your computer can store up to 20 fingerprints in its memory.

Sensors
Table 21. Sensors

GPU—Integrated
The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Precision 5560.
Table 22. GPU—Integrated

Controller	External display support	Memory size	Processor
Intel UHD graphics	Three USB Type-C to Display Ports NOTE: You can connect up to three 4K external displays or one 5K or one 8K and above displays using the Thunderbolt 4 (USB-C) ports available on your Precision 5560	Shared system memory	11th  Generation Intel Core i5/i7/i9 and Xeon W-Series processors

GPU—Discrete
The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Precision 5560.
Table 23. GPU—Discrete

Multiple display support matrix
The following table lists the multi-monitor support matrix supported by your Precision 5560.
Table 24. Integrated – Multiple display support matrix

Table 25. Discrete – Multiple display support matrix

Hardware security
The following table lists the hardware security of your Precision 5560.
Table 26. Hardware security

Smart-card reader
Contactless smart-card reader
The following table lists the contactless smart-card reader specifications supported by your Precision 5560.
Table 27. Contactless smart-card reader

Table 27. Contactless smart-card reader (continued)

NOTE: 125 Khz proximity cards are not supported.
Table 28. Supported cards

Table 28. Supported cards (continued)

Contacted smart-card reader
The following table lists the contacted smart-card reader specifications supported by your Precision 5560.
Table 29. Contacted smart-card reader

Operating and storage environment
This table lists the operating and storage specifications of your Precision 5560.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 30. Computer environment

CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.

Dell low blue light display

This section explains about Dell low blue light 4K display panel.
WARNING: The possible long-term effects of blue light emission from the display may cause personal injury such as digital eye strain, eye fatigue, and damage to the eyes. Using the monitor for extended periods of time may also cause pain in parts of the body such as neck, arm, back, and shoulder.
Dell low blue light display optimizes eye comfort with a flicker-free screen. This feature is designed to reduce the amount of blue light that is emitted from the monitor to optimize eye comfort.
To reduce the risk of eye strain and neck/arm/back/shoulder pain from using the monitor for long periods of time, we suggest you to:

1. Set the distance of the screen between 20 inches to 28 inches (50 cm-70 cm) from your eyes.
2. Blink frequently to moisten your eyes or wet your eyes with water after prolonged usage of the monitor.
3. Take regular and frequent breaks for 20 minutes every two hours.
4. Look away from your monitor and gaze at a distant object at 20 ft away for at least 20 s during the breaks.
5. Perform stretches to relieve tension in the neck, arm, back, and shoulders during the breaks.

Keyboard shortcuts of Precision 5560

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + esc. Subsequently, multimedia control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1-F12) by changing Function Key Behavior in BIOS setup program.
Table 31. List of keyboard shortcuts

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.
Table 32. List of keyboard shortcuts

Getting help and contacting Dell

Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 33. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell app
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows www.dell.com/support/linux
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer concerns	1. Go to www.dell.com/support. 2. On the menu bar at the top of the Support page, select Support > Knowledge Base. 3. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
Contacting Dell
NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

1. Go to Dell.com/support.
2. Select your support category.
3. Verify your country or region in the Choose a Country/Region drop-down list at the bottom of the page.
4. Select the appropriate service or support link based on your need.

References

• Dell Client Command Suite | Dell USA
• Support | Dell US
• Microsoft Support
• Computers, Monitors & Technology Solutions | Dell USA
• Contact Support | Dell US
• Support | Dell US
• Dell - Dell Linux - Community Web
• Windows Operating Systems | Dell US
• Enabling Seamless and Secure Payments Worldwide | EMVCo
• Microsoft Support
• Touch gestures for Windows - Microsoft Support
• Computers, Monitors & Technology Solutions | Dell USA
• Computers, Monitors & Technology Solutions | Dell USA
• Contact Support | Dell US
• Support | Dell US
• Support | Dell US
• Support | Dell US
• How to configure Ubuntu Linux after it's first installed on your Dell PC | Dell US
• How to configure Ubuntu Linux after it's first installed on your Dell PC | Dell US
• How to distinguish the differences between M.2 cards | Dell US
• Find your Service Tag or Serial Number | Dell Singapore
• Support | Dell US
• Support for SupportAssist for Home PCs | Documentation | Dell US
• Guide to Dell Docking Stations | Dell US
• How to distinguish the differences between M.2 cards | Dell US
• What is Dell Digital Delivery? | Dell US
• What is Dell Digital Delivery? | Dell US
• How to configure Ubuntu Linux after it's first installed on your Dell PC | Dell India
• How to configure Ubuntu Linux after it's first installed on your Dell PC | Dell India
• Dell Update and Alienware Update - Overview and common questions | Dell India
• Dell Update and Alienware Update - Overview and common questions | Dell India
• Dell - Dell Linux - Community Web
• Windows Operating Systems | Dell US
