Precision 5480 Laptop
User Guide
Precision 5480 Laptop
Regulatory Model/Type
P154G /P154G003
Information for NOM, or Official Mexican Standard
The information provided below will be displayed on the devices described in this document, in accordance with the requirements of the Official Mexican Standard (NOM):
Importer:
Dell Mexico, S.A. de C.V
Av. Javier Barros Sierra, no 540, 10th floor, Col. Lomas de Santa Fe
Álvaro Obregón Delegation, Mexico City. C.P. 01219
R.F.C: DME9204099R6
Country of Origin: Made in China
Connection and use of this communications equipment is permitted by the Nigerian Communications Commission.
This product complies with Taiwan RoHS standard CNS15663, please see http://www.dell.com/learn/tw/zh/twcorp1/envt-info-materials
Read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at Dell.com/regulatory_compliance.
Do not remove the computer cover unless you need to install internal accessories for your computer. For instructions on removing and replacing parts, see the Owner’s or Service Manual at Dell.com/support.
Retain the filler brackets or cards that ship with your computer. Installing filler brackets or filler cards over empty card-slot openings is necessary to maintain FCC certification of the computer. The filler brackets and filler cards keep dust and dirt out of your computer and maintain the airflow that cools your computer.
Power Adapter
| Input voltage | 100-240 V |
| Input current (maximum) | 1.7A/1.8A |
| Input frequency | 50-60 Hz |
| Output current | 6.5 A |
| Output voltage | 20 V |
Maximum operating temperature: 35°C ( °F)

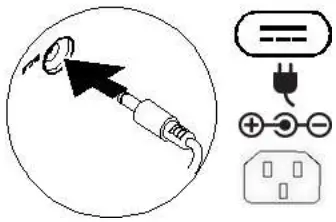

Connect the power adapter or the power cable to your computer and to the display, if required.
Power on the computer (and the display, if connected).
Depending on your computer configuration, some ports or connectors may not be available.
Icons
| Power adapter |  |
| USB 2.0 |  |
| USB 3.0/USB 3.1 Gen 1 |  |
| USB 3.0/USB 3.1 with PowerShare |  |
| USB 3.1 Type-C |  |
| eSATA |  |
| Thunderbolt |  |
| Thunderbolt 3 port with Power delivery (USB-C) |  |
| Network |  |
| VGA |  |
| DVI |  |
| HDMI |  |
| DisplayPort |  |
| Mini DisplayPort |  |
| TV-in |  |
| External Graphics Port |  |
| Infrared (IR) emitter |  |
| Headphone/Audio-out |  |
| Headset |  |
| Microphone |  |
| Line-in |  |
| Line-out/Speakers: front left-right |  |
| Speakers: rear left-right |  |
| Speakers: side left-right |  |
| Speakers: Audio center/subwoofer |  |
| Screen-rotation lock |  |
| SIM-card slot |  |
| ExpressCard slot |  |
| Media-card reader |  |
| Security-cable slot |  |
| Power/Battery-status light |  |
| Battery-status light |  |
| Hard-drive activity light |  |
| Wi-Fi light |  |
| Bluetooth light |  |
Views
USB-C 3.2 with Power Delivery and DisplayPort Indicated as a USB-C 3.2 port with power supply and DisplayPort function (up to 10Gbps, 5 V/1.5 A output)
Read and write USB3.2, 5 V/1.5 A output, 10 Gbps
Video transmission (monitor): 4K@60Hz (3840 x 2160)
Thunderbolt 4 with Power Delivery and DisplayPort Indicated as 2 Thunderbolt 4 ports with power supply and DisplayPort function (up to 40Gbps, 5 V/3 A output)
Read and write USB4/Thunderbolt 4, 5 V/3 A output
(if 2 ports are loaded at the same time, the maximum output of 1 port is 5 V/3 A, and the other port is 5 V/1.5 A), 40 Gbps
Video transmission (display): 5K@60Hz (5120 x 3200), 8K@60Hz (7680 x 4320) with DSC
