POOL SUPPLY UNLIMITED PPREGLX-CH52SSSTSSFB0 Pretium GLX STR Channel Lock
Pretium GLX STR PPREGLX-CH52SSSTSSFB0 Channel Lock
Product Description
| Product Description: Pretium GLX Oval Revised Sept.2014 Product Code: PPREGLX-CH52SSSTSSFB0 | ||||||||
| Quantity required for installation (by pool size) | ||||||||
| INDEX# | DESCRIPTION | PARTS# | LENGTH | 1218 | 1224 | 1524 | 1530 | 1833 |
| 7 | Top Ledge Curve | 1450872 | 45-15/32” | 8 | 8 | |||
| 7 | Top Ledge Curve | 1450873 | 56-27/32” | 8 | 8 | 10 | ||
| 7 | Top Ledge Trans | 1450874 | 47” | 4 | ||||
| 7 | Top Ledge Trans | 1450875 | 58-1/4” | 4 | 4 | 4 | 4 | |
| 7 | Top Ledge Str Side | 1450876 | 47-1/4” | 4 | 2 | |||
| 7 | Top Ledge Str Side | 1450877 | 58-3/4” | 4 | 4 | |||
| 1 | Upright | 1440512 | 51-1/2” | 10 | 10 | 10 | 10 | 12 |
| 4 | Top Plate | 1320102 | 10 | 10 | 10 | 10 | 12 | |
| 17 | SideTop Plate | 1320160 | 2 | 6 | 4 | 6 | 6 | |
| 2 | Bottom Plate | 1320101 | 10 | 10 | 10 | 10 | 12 | |
| n/a | Slotted tube Connector (steel) | 1470108 | 10 | 10 | 10 | 10 | 12 | |
| n/a | Slotted tube Connector – side (resin) | 1470087 | 2 | 6 | 4 | 6 | 6 | |
| n/a | Round Coping | 1382480 | 47” | 13 | 16 | 17 | 20 | 23 |
| 19 | Rail Support | 1490494 | 4 | 2 | 4 | 4 | ||
| 5 | Slotted tube | 1470096 | 44” | 8 | 8 | |||
| 5 | Slotted tube | 1470097 | 55-1/2” | 8 | 8 | |||
| 5 | Slotted tube (Yellow) | 1470098 | 55-1/4” | 4 | 6 | |||
| 5 | Slotted tube(Green) | 1470100 | 55-1/2” | 4 | 8 | 12 | ||
| 5 | Slotted tube (Blue) | 1470104 | 44-1/8” | 4 | ||||
| 5 | Slotted tube (White) | 1470105 | 44-1/8” | 4 | 2 | |||
| 18 | Bottom Rail | 1460048 | 44-5/8” | 8 | 8 | |||
| 18 | Bottom Rail | 1460049 | 56” | 8 | 8 | |||
| 18 | Bottom Rail (Yellow) | 1460050 | 56” | 4 | 6 | |||
| 18 | Bottom Rail (Orange) | 1460052 | 56-1/4” | 4 | 4 | 8 | ||
| 18 | Bottom Rail (Blue) | 1460138 | 44-5/8” | 4 | ||||
| 18 | Bottom Rail (Green) | 1255624 | 4 | 4 | ||||
| 18 | Bottom Rail (White) | 1254424 | 44-5/8” | 4 | 2 | |||
| 9 | Ledge cover | 1490837 | 12 | 16 | 14 | 16 | 18 | |
| 10 | Ledge cover – lower, round end only | 1490849 | 10 | 10 | 10 | 10 | 12 | |
| 10 | Ledge cover – lower, for buttress only | 1490850 | 2 | 6 | 4 | 6 | 6 | |
| 3,6,8 | Hardware Pack (Qty. – 59) | 1184299 | 1 | |||||
| 3,6,8 | Hardware Pack (Qty. – 77) | 1184300 | 2 | 2 | 2 | 2 | 1 | |
| 3,6,8 | Hardware Pack (Qty. – 29) | 1184298 | 1 | |||||
| Screw #12-5/8 | 1184105 | 154 | 154 | 154 | 154 | 165 | ||
| n/a | DVD | 36877 | 1 | 1 | 1 | 1 | 1 | |

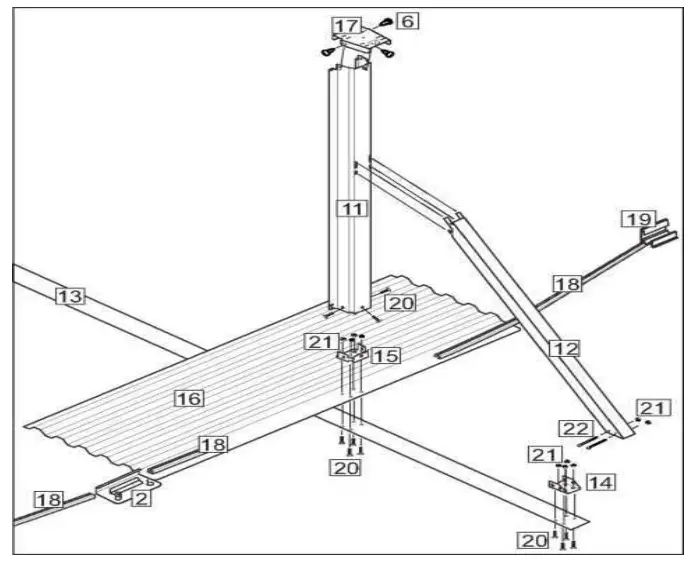

| 11 | Upright | 1440514 | 2 | 6 | 4 | 6 | 6 | |
| 12 | Diagonal | 1440349 | 2 | 6 | 4 | 6 | 6 | |
| 16 | Hold Down Plate | 1320162 | 2 | 6 | 4 | 6 | 6 | |
| 14 | Diagonal Bracket | 1320152 | 2 | 6 | 4 | 6 | 6 | |
| 15 | Oval bottom Plate | 1320154 | 2 | 6 | 4 | 6 | 6 | |
| Hardware Pack | 1184292 | 1 | 3 | 2 | 3 | 3 | ||
| 6 | Self tapping screw 12 1/2′ | 1183273 | 20 | 60 | 40 | 60 | 60 | |
| 21 | Flange nut 1/4-20′ | 1184052 | 27 | 81 | 54 | 81 | 81 | |
| 20 | Bolt 1/4×20 x 3/4′ | 1184275 | 23 | 69 | 46 | 69 | 69 | |
| 22 | Bolt 1/4×20 x 2 1/4′ | 1184276 | 5 | 15 | 10 | 15 | 15 | |
| 13 | Strap Section | 1510132 | 1 | 3 | ||||
| 13 | Strap Section | 1510133 | 2 | 3 | ||||
| 13 | Strap Section | 1510134 | 3 | |||||
| Wall | 1 | 1 | 1 | 1 | 1 | |||
| Wall joiner bar | 11823 | 2 | 2 | 2 | 2 | 2 | ||
