H-1871

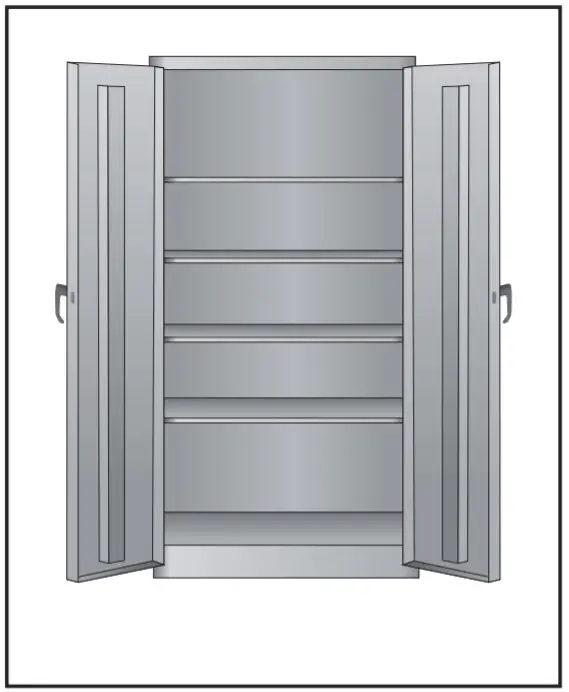

JUMBO HEAVY DUTY STORAGE CABINET

Contents hide

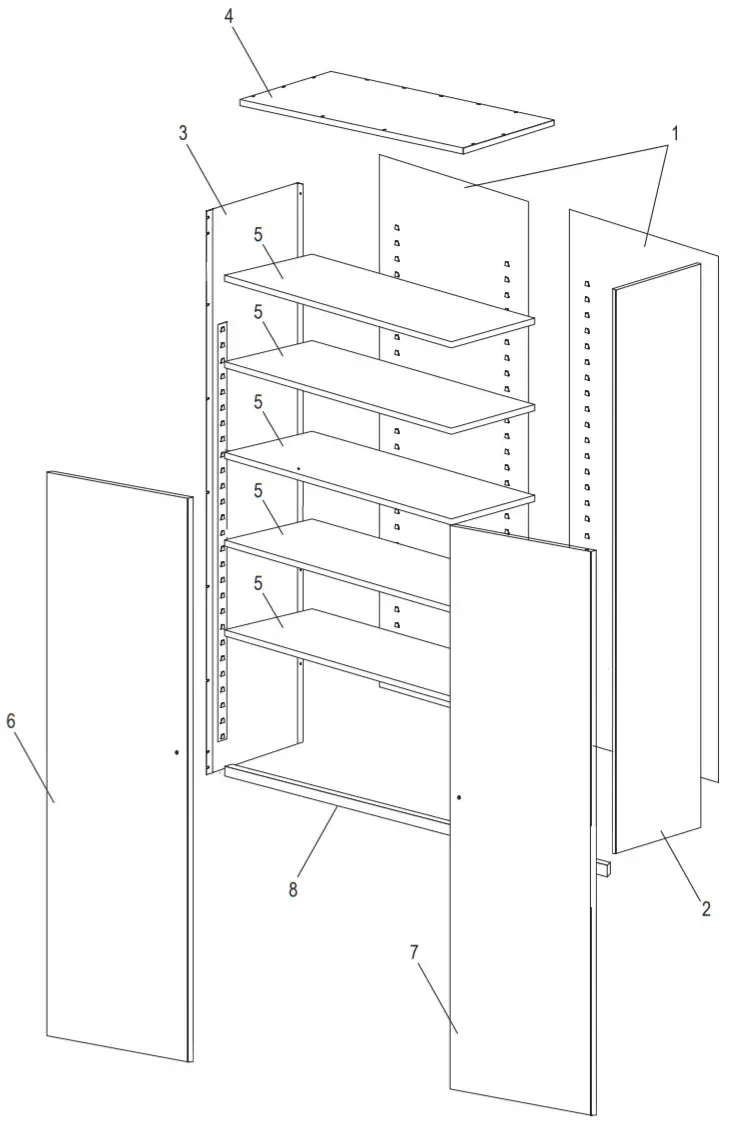

PRIMARY ASSEMBLY PARTS LIST

#	DESCRIPTION	QTY.	ULINE PART NO.	MFG. PART NO.
1	Back Panel – Black	2	———–	055BA-BLK
	Back Panel – Gray	2	———–	055BA-MGY
	Back Panel – Tan	2	———–	055BA-CPY
2	Right Side Panel – Black	1	H-1871BL-RS	056RS-BLK
	Right Side Panel – Gray	1	———–	056RS-MGY
	Right Side Panel – Tan	1	———–	056RS-CPY
3	Left Side Panel – Black	1	H-1871BL-LS	056LS-BLK
	Left Side Panel – Gray	1	H-1871GR-LS	056LS-MGY
	Left Side Panel – Tan	1	H-1871T-LS	056LS-CPY
4	Top – Black	1	H-1871BL-TPQ	056TO-BLK
	Top – Gray	1	H-1871GR-TOP	056TO-MGY
	Top – Tan	1	———–	056TO-CPY
5	Shelf – Black	5	H-1871ADD-BL	307-BLK
	Shelf – Gray	5	H-1871ADD-GR	307-MGY
	Shelf – Tan	5	H-1871ADD-T	307-CPY
6	Left Door – Black	1	H-1871BL-LDR	056LD-BLK
	Left Door – Gray	1	H-1871GR-LDR	056LD-MGY
	Left Door – Tan	1	———–	056LD-CPY
7	Right Door – Black	1	H-1871-RDOOR	056RD-BLK
	Right Door – Gray	1	H-1871GR-RDR	056RD-MGY
	Right Door – Tan	1	H-1871T-RDR	056RD-CPY
8	Sill – Black	1	H-3616-SILL	055SI-BLK
	Sill – Gray	1	H-3594-SILL	055SI-MGY
	Sill – Tan	1	H-3616-TSILL	055SI-CPY
	Touch Up Paint – Black (Not Shown)	1	H-5361	———–
	Touch Up Paint – Gray (Not Shown)	1	H-5362	LTUP-2-MGY
	Touch Up Paint – Tan (Not Shown)	1	H-5364	LTUP-1-CPY

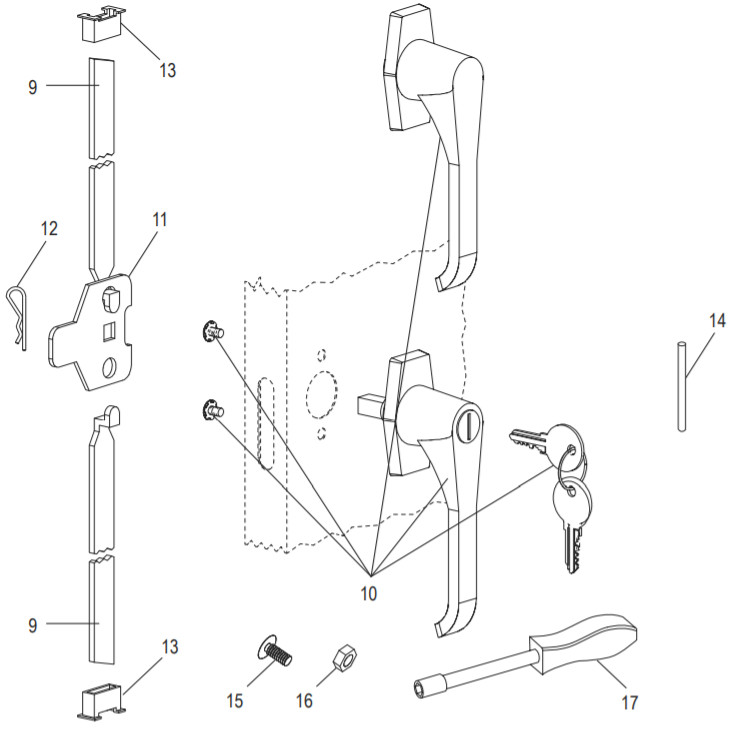

HANDLE ASSEMBLY

#	DESCRIPTION	QTY.	ULINE PART NO.	MFG. PART NO.
9	Lock Bar (Set)	1	H-1223-#8	043LB
10	Locking Handle with Keys and Dummy Handle (Set)	1	H-2217-HANDL	043LH
11	Locking Cam	1	H-1105-13	944LC
12	Cotter Pin	1	H-2216-CTRPN	CTRPN
13	Lock Bar Guide	2	H-1105-15	944GI-2PK
14	Hinge Pin	8	H-1106-16	944HP
15	Bolt (#8-32 x 3/8″)	25	———–	———–
16	Nut (#8-32)	35	———–	———–
17	Nut Driver	1	H-1224-TOOL2	TOOL-2
	Replacement Hardware Pack (Not Included)Bolts #8-32 x 3/8″ (72), Nuts #8-32 (72)	1	H-1224-19	HW-72
	Extra Keys (Set of 2) (Not Shown)	1	H -110 5 – K E Y S	———–
