BOX CONTENT
STORAGE CABINET
JV10176
JV10176 Storage Cabinet

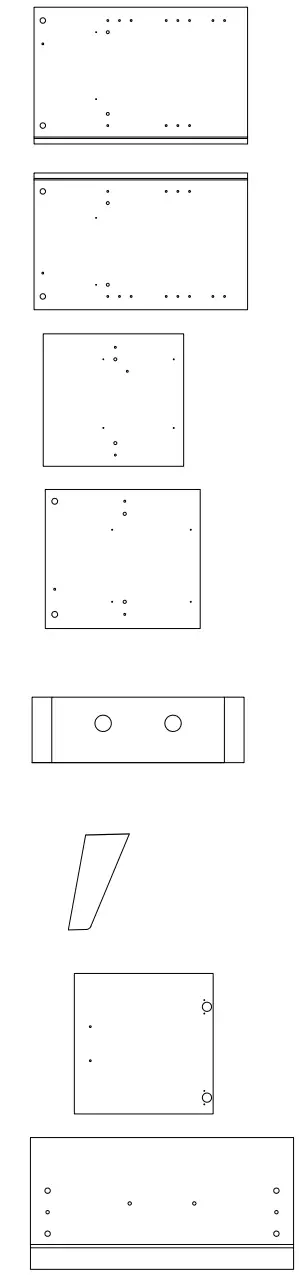

BOX 1 OF 2
| PART NO | PART | QTY | IMAGE | |
| ASSYMETRIS SB120 (JV10176- 12) | 3 | SIDE R | 1 |  |
| 4 | SIDE L | 1 | ||
| 5 | MIDLE R | 1 | ||
| 6 | MIDLE L | 1 | ||
| 12 | BOTTOMSUPPORT 1 | 2 | ||
| 15 | LEG | 4 | ||
| 16 | DOOR | 2 | ||
| 19 | FRONT DRAWER | 1 |

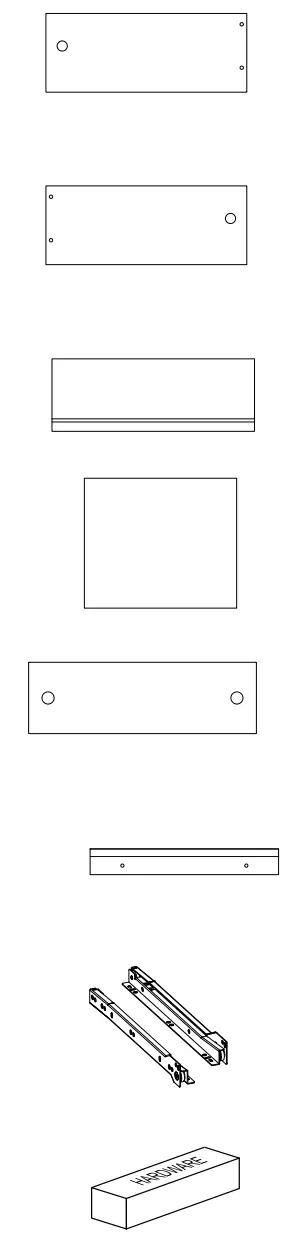

BOX 1 OF 2
| TYPE | PART NO | PART | QTY | IMAGE |
|
ASSYMETRIS SB120 (JV10176- 12)
| 20 | SIDE DRAWER R | 3 |  |
| 21 | SIDE DRAWER L | 3 | ||
| 23 | BACK DRAWER 1 | 1 | ||
| 25 | BASE DRAWER 1 | 1 | ||
| 26 | DRAWER SUPPORT | 2 | ||
| 27 | HANDLE | 5 | ||
| 28 | DRAWER RAIL | 3 | ||
| 100 | HARDWARE BOX | 1 |

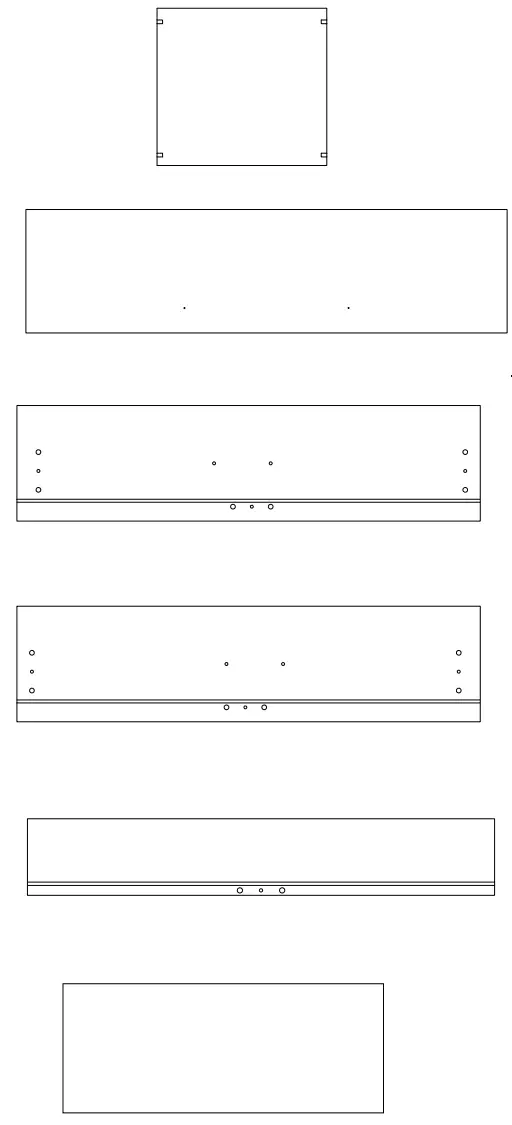

BOX 2 OF 2
| PART NO | PART | QTY | IMAGE | |
|
ASSYMETRIS SB120 (JV10176- 22) | 1 | TOP | 1 |  |
| 2 | BOTTOM | 1 | ||
| 7 | SHELF BOTTOM | 1 | ||
| 8 | TOP SUPPORT | 2 | ||
| 9 | FRONT SUPPORT | 1 | ||
| 10 | BACK SUPPORT | 1 | ||
| 11 | BOTTOM SUPPORT 2 | 2 |

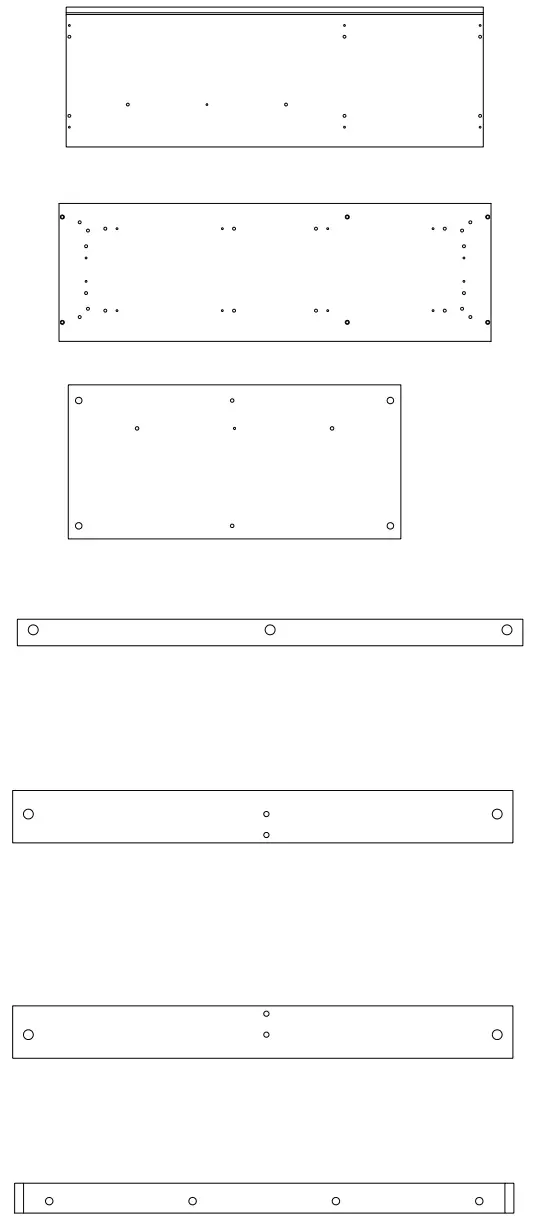

| TYPE | PART NO | PART | QTY | IMAGE |
|
ASSYMETRIS SB120 (JV10176- 22) | 13 | SHELF | 2 |  |
| 14 | BACK | 2 | ||
| 17 | FRONT DRAWER 1 | 1 | ||
| 18 | FRONT DRAWER 2 | 1 | ||
| 22 | BACK DRAWER 2 | 2 | ||
| 24 | BASE DRAWER 2 | 2 |
STORAGE CABINET
JV10176
