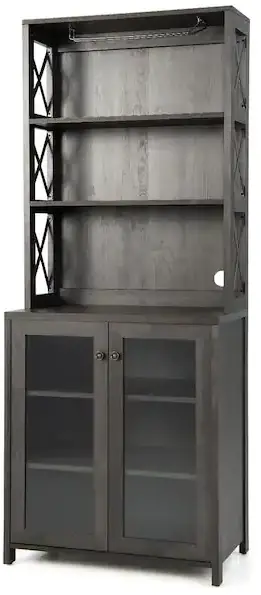

COSTWAY JV10471DK Microwave Storage Cabinet
Before You Start
- Please read all instructions carefully.
- Retain instructions for future reference.
- Separate and count all parts and hardware.
- Read through each step carefully and follow the proper order.
- We recommend that, where possible, all items are assembled near the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Always place the product on a flat, steady, and stable surface.
- Keep all small parts and packaging materials for this product away from babies and children as they potentially pose a serious choking hazard.

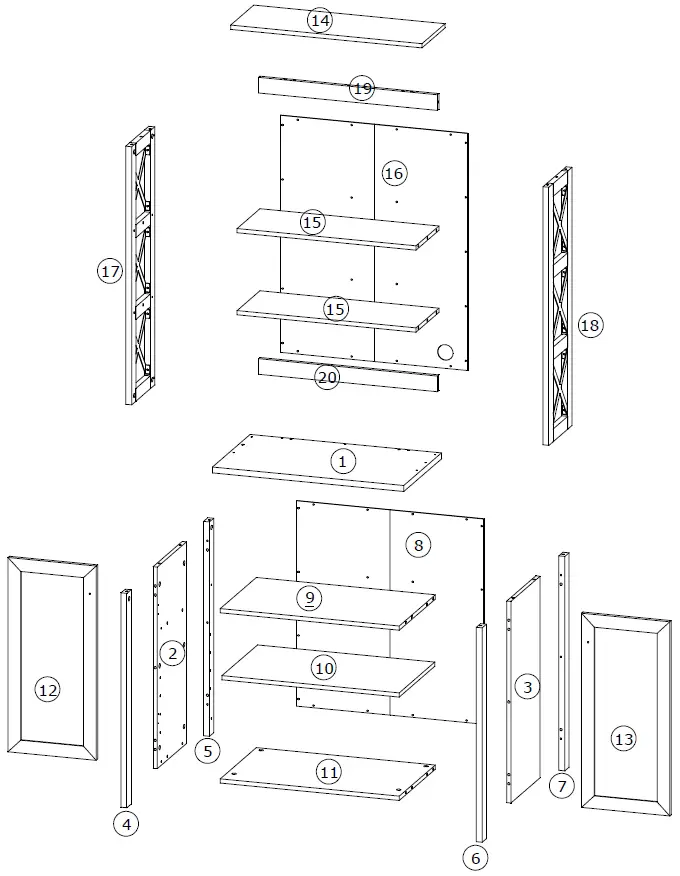

PACKAGE CONTENT
| PACKAGE CONTENT | ||
| CODE | DESCRIPTION | QTY |
| 1 | Countertop Board | 1 |
| 2 | Lower Left Side Plate | 1 |
| 3 | Lower Right Side Plate | 1 |
| 4 | Lower Left Side Pillar | 1 |
| 5 | Lower Right Side Pillar | 1 |
| 6 | Left Middle Side Pillar | 1 |
| 7 | Right Middle Side Pillar | 1 |
| 8 | Lower Back Panel | 1 |
| 9 | Upper fixed laminate | 1 |
| 10 | Lower movable laminate | 1 |
| 11 | Bottom Panel | 1 |
| 12 | Door plank 1 | 1 |
| 13 | Door plank 2 | 1 |
| 14 | Cabinet top plate | 1 |
| 15 | Upper fixed laminate | 2 |
| 16 | Upper backplane | 1 |
| 17 | Upper left side panel | 1 |
| 18 | Upper right-side panel | 1 |
| 19 | Cabinet rear baffle 01 | 1 |
| 20 | Cabinet rear baffle 02 | 1 |

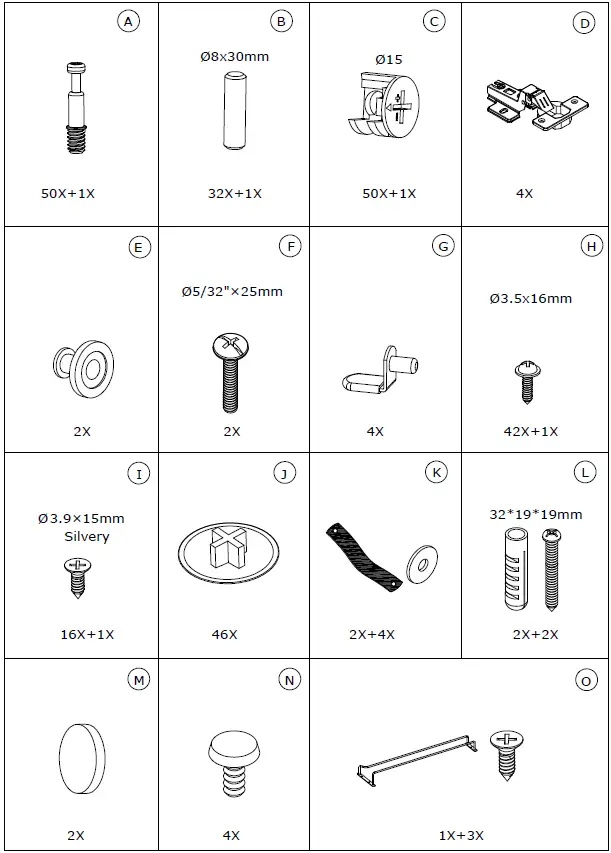

PARTS LIST

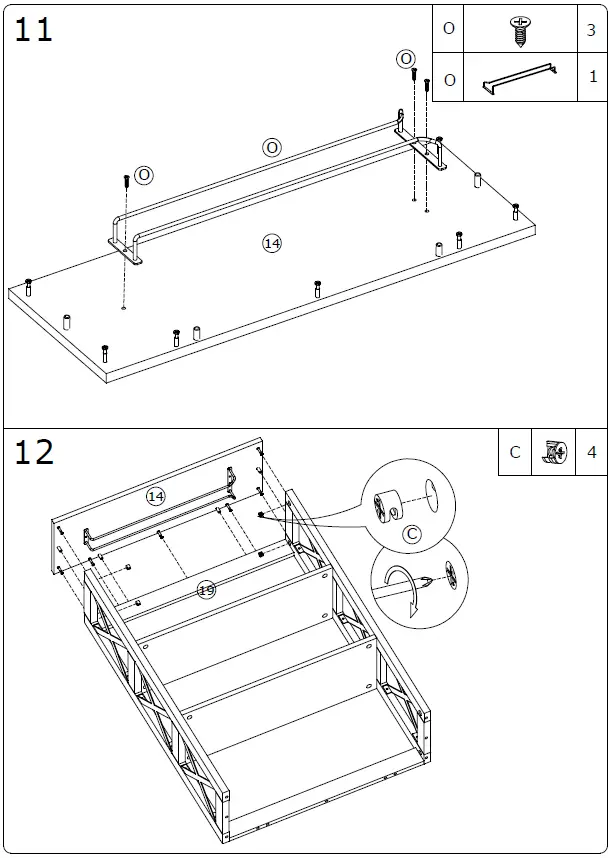

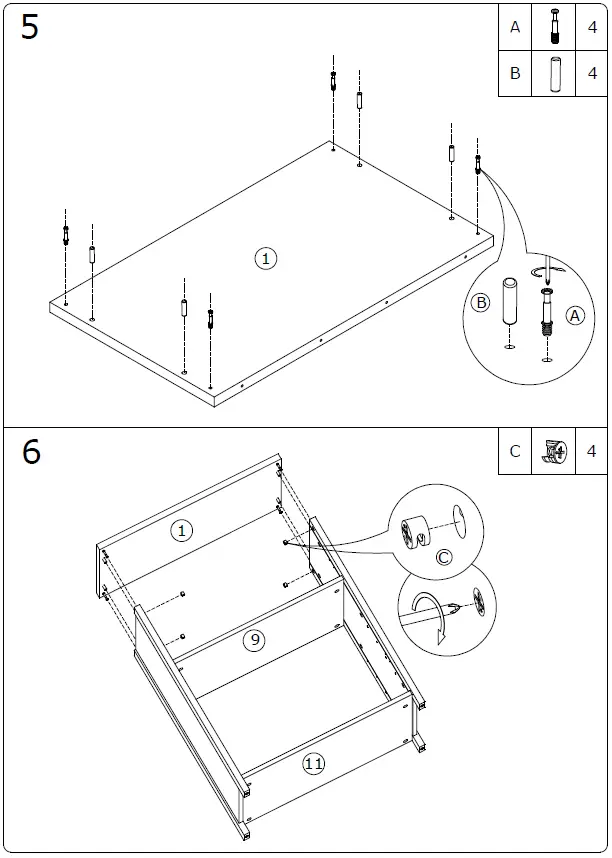

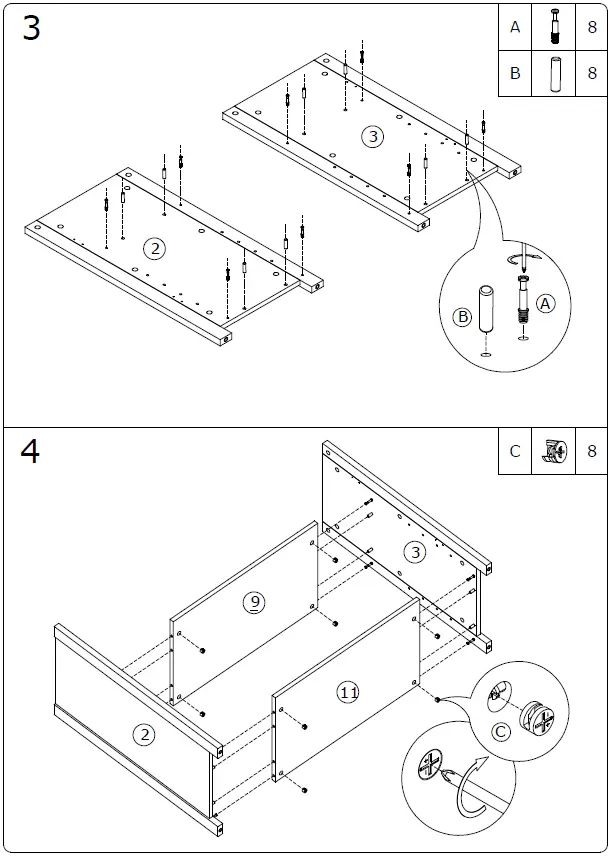

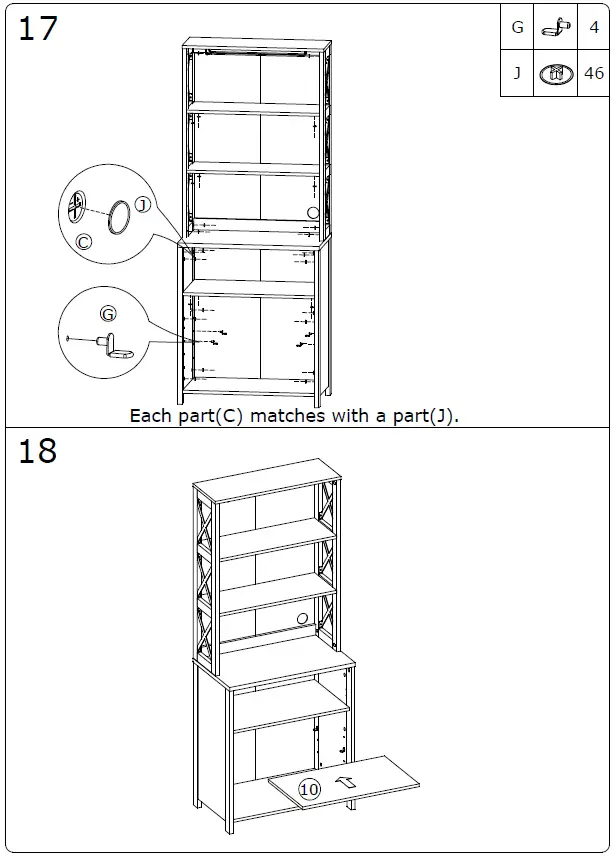

INSTALLATION

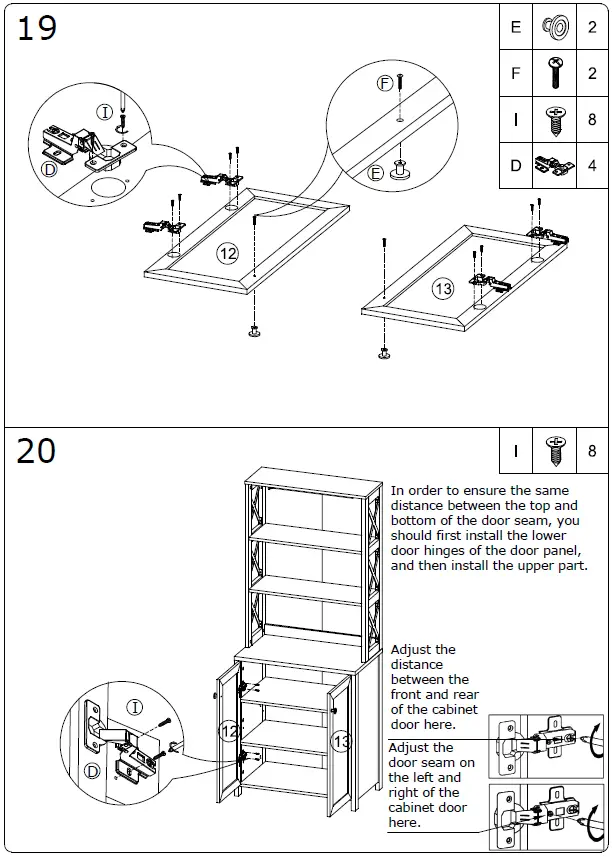

In order to ensure the same distance between the top and bottom of the door seam, you should first install the lower door hinges of the door panel, and then install the upper part.
- Adjust the distance between the front and rear of the cabinet door here.
- Adjust the door seam on the left and right of the cabinet door here.
