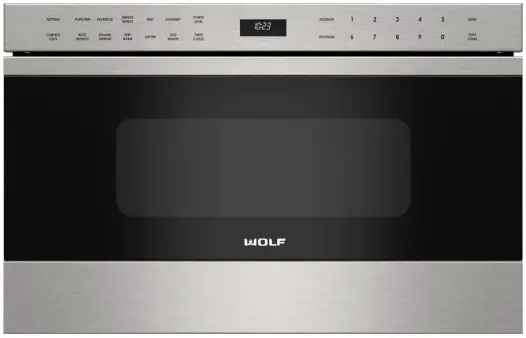

WOLF MWD24-2 Drawer Microwave
PARTS LIST
MWD24-2 & MWD30-2 CONTROL PANEL PARTS LIST
| Ref # | Part # | Description |
| 1 | 813784 | Control Unit, Svce MWD24-2, MWD30-2 |
| 2 | 813733 | Key Unit, MWD24-2U/S, Svce |
| 813734 | Key Unit, MWD30-2U/S, Svce | |
| 3 | 813735 NA | Key Unit, MWD30-2F/S, Svce See Reference #8 |
| 813737 | C/P Frame Assy,MWD30-2U/S, Svce | |
| 813738 | C/P Frame Assy,MWD30-2F/S, Svce | |
| 4 | N/A | C/P Cover |
| 5
6 | N/A N/A N/A | C/P Angle MWD24-2U/S C/P Angle MWD30-2U/S / MWD30-2F/S Screw (4) |
| 7 | N/A | C/P Cushion MWD30-2U/S / MWD30-2F/S (2) |
| 8 | 813736 | C/P Frame Assy, MWD24 2U/S, Svce |
| 813737 | C/P Frame Assy, MWD30 2U/S, Svce (Unframed) | |
| 813738 | C/P Frame Assy, MWD30 2F/S, Svce (Framed) |
CONTROL PANEL VIEW
MWD24-2 & MWD30-2 CONTROL PANEL VIEW
