Chroma-Q 632-XXXX Blind Ceiling Mount
For a full product manual please visit www.chroma-q.com Part Number: CH632-9120, CH632-9121
Model: 632-9120, 632-9121
For use with
Part Number: CHINHL[xxxx]
Model: 632-XXXX
Installation Disclaimer
- Installation should be carried out by an experienced professional. The instructions below are provided for information only.
- All work should be verified to meet Local and National Building Regulations, and Health and Safety Standards in particular.
- Ensure that the specified torque is applied to fasten the Trim Ring and Angle Supports.
- The Angle Supports of the InspireTM fixture must be fastened to the ceiling with the appropriate load capacity.
- The use of a safety rated chain or other arrest cable is mandatory as per standard rigging practice.
- The brackets provided in the kit are for centering and supporting the trim ring. The weight of the fixture must be supported separately from the brackets provided in the kit
Kit Contents
| Items | Part Number | Quantity |
| Trim Ring Blind Mount | 632-9005 / 632-9006 | 1 |
| Bracket Blind Mount Clamp | 632-9001 | 3 |
| Flag Blind Mount Clamp | 632-9002 | 3 |
| Screw M5X0.8 PH 80mm | 450-1280-1 | 3 |
| Push Nut M5 Thickness 1mm | 450-3401 | 3 |
| Bracket Trim Ring Mount | 632-9004 | 1 |
| Bracket Hook | 632-0012 | 4 |
| Screw M5X12 PH Plps Blk | 450-1212-0 | 7 |
| Washer Flat M5 Zn 20mm OD | 450-2420-1 | 4 |
| Ceiling Blind Mount Install Guide | 632-0721 | 1 |
For the ease of installation most items of the kit have been partially assembled. They are
| S/A | Description | Qty | Picture |
| A | Bracket Trim Ring Sub-assembly | 1 |  |
|
B | Bracket Clamp Sub-assembly (Note: Factory default for the Sub-assembly B uses Top and Middle Hole, User can change it to Middle and Bottom hole) |
3 |  |
Tools Required
- Screwdriver with PH#1 (Minimum torque: 5.5 in-lb.)

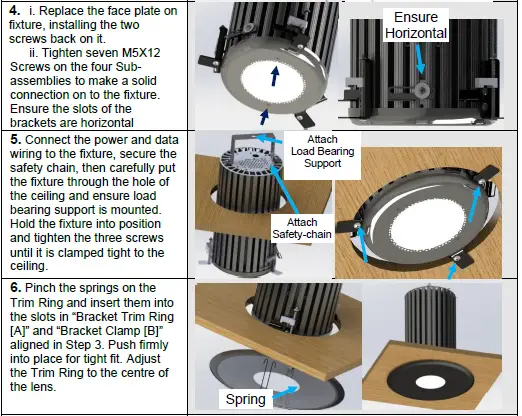

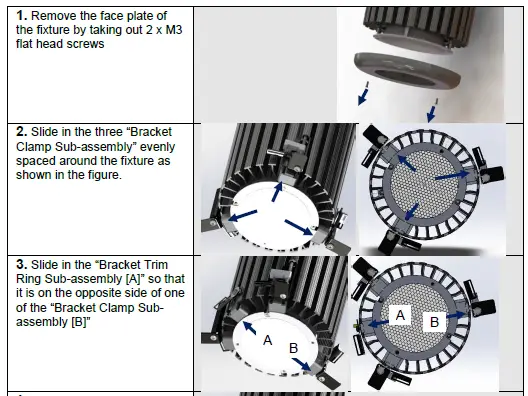

Installation Guide

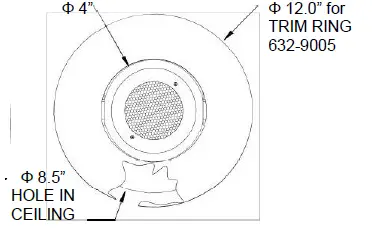

Hole Sizing Reference (inches/cm) Note:
- Ceiling hole size: 8.5” / 21.5 cm
- Trim Ring outer diameter: 12” / 30.5 cm
- Trim Ring inner diameter: 4” / 10 cm
