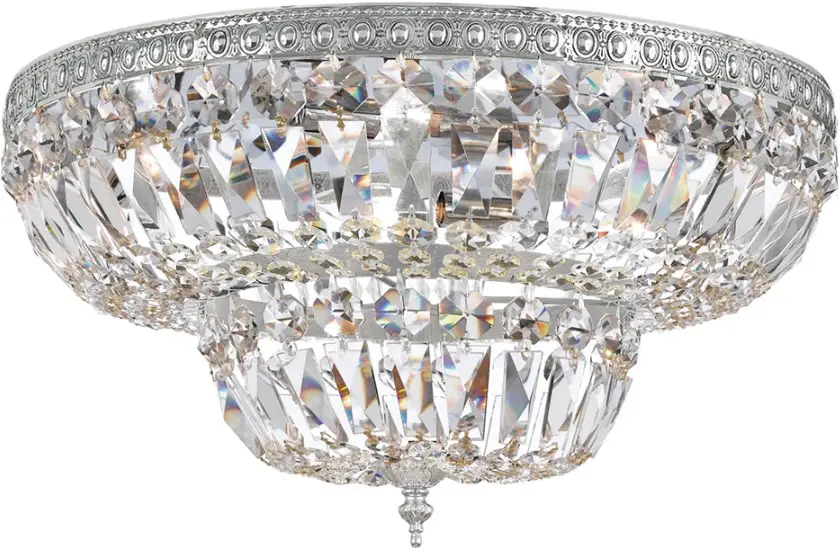

Crystorama 718-ch-cl-saq Four Light Ceiling Mount Instruction Manual

CRYSTORAMA 718-CH-CL-SAQ Four Light Ceiling Mount Instruction Manual

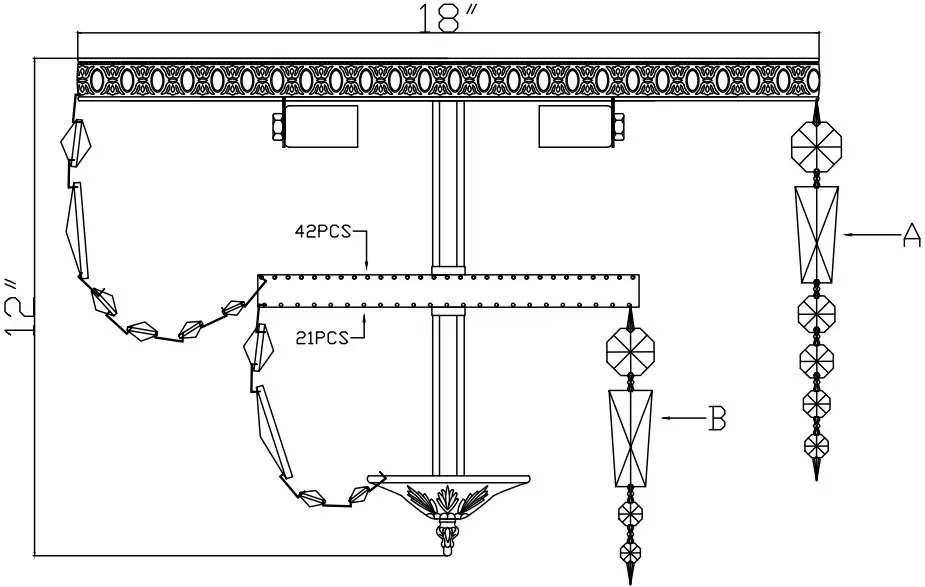

Crystal Sets

A. 42Sets. (1)30mm + (1)58mm Baguette + (1)22mm +(1)20mm + (1)16mm + (1)14mm
B. 21Sets. (1)28mm + (1)58mm Baguette + (1)16mm +(1)14mm

WARNING

 Electrical Danger
 Turn Power Off

All electrical components must beinstalled by a licensed electricianin accordance with the NationalElectric Code and the appropriatelocal electrical codes

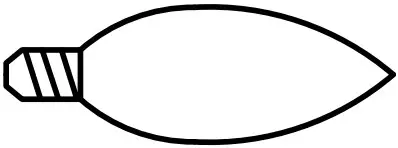

You will need 4- Candelabra Base Bulb40 Watts recommended 60 Watts Max.USE LED BULBS FOR EXTENDED USE

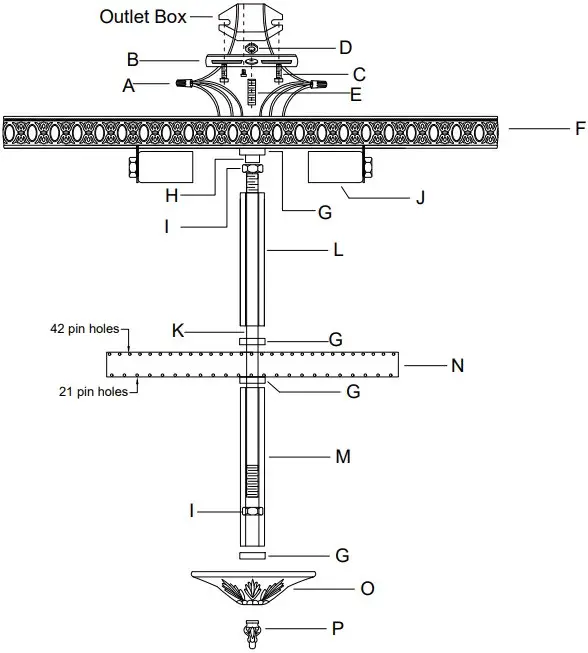

HOW TO INSTALL:

Place the fixture parts on a softcloth-covered platform beforeinstallation of fixture

1. Install the mounting bar onto theoutlet box.
2. Raise the Frame up over the threaded nippleon the mounting bar.After the wire connection is completed,Secure with the coupling.
3. Screw the stem onto the couplingon the frame and secure with a hex nut.Slide the smaller tube, check ring ,metal ring, check ring, lager tubeand check ring in that order over thestem.Secure with a hex nut.
4. Place the vase cap over the end of thestem and secure with the finial.
5. Dress the crystals as illustrated.

Part Number

• A. (2)-Wire Connector
• B. (1)-Mounting bar
• C. (2)-Screw
• D. (1)-Hex nut
• E. (1)-Thread nipple
• F. (1)-Frame ; Ø18″ ; 42 pin holes ; with inner plate.
• G. (4)-Check ring
• H. (1)-Coupling
• I.(2)-Hex Nut
• J. (4)-Socket
• K. (1)-Stem ; H10″-XSN718CHSSTEM10IN
• L. (1)-Tube ; H4 1/8″-XSN718CHSTEM4.125IN
• M. (1)-Tube ; H5″-XSN718CHSTEM5IN
• N. (1)-Metal ring ; Ø9″ ; 42 pin holes for up side ; 21 pin holes for lower side.
• O. (1)-Vase Cap ; Ø3″ ; 21 pin holes-XSN718CHCAP
• P. (1)-Finial-XSN718CHFIN
