ASSEMBLY INSTRUCTION MODEL #718-CH-CL-S
Instruction Manual
718-CH-CL-S Four Light Ceiling Mount
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes
You will need 4- Candelabra Base Bulb 40 Watts recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
The fixture is Dry rated
HOW TO INSTALL:
Place the fixture parts on a soft cloth-covered platform before installation of fixture.
- Install the mounting bar onto the outlet box.
- Raise the Frame up over the threaded nipple on the mounting bar.
After the wire connection is completed, Secure with the coupling. - Screw the stem onto the coupling on the frame and secure with a hex nut.
Slide the smaller tube, check ring , metal ring, check ring, lager tube and check ring in that order over the stem.
Secure with a hex nut. - Place the vase cap over the end of the stem and secure with the finial.

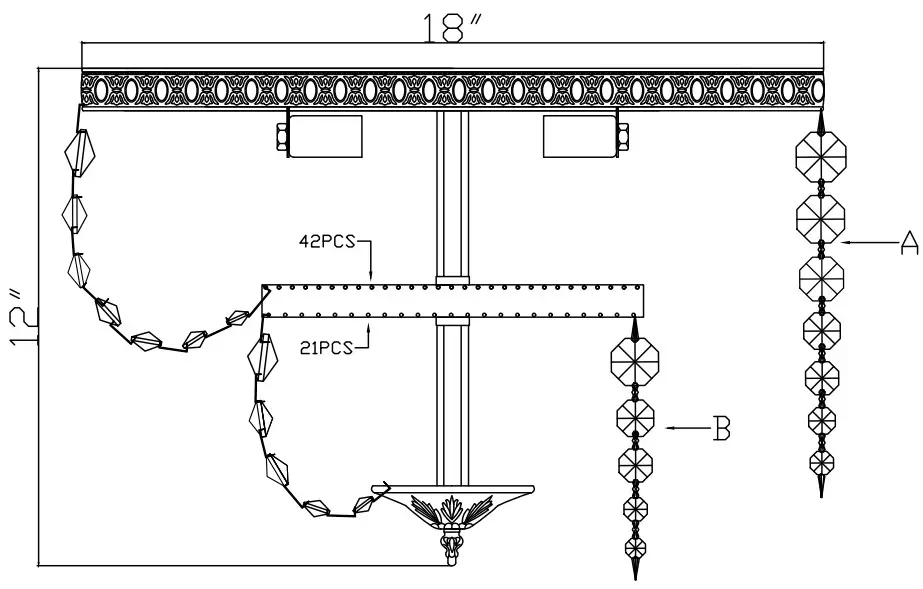

- Dress the crystals as illustrated.
Crystal Sets
A. 42Sets. (1)30mm + (1)28mm + (1)24mm + (1)22mm + (1)20mm + (1)16mm + (1)14mm
B. 21Sets. (1)28mm + (1)24mm + (1)22mm + (1)16mm + (1)14mm
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.For more information go to www.p65warnings.ca.gov

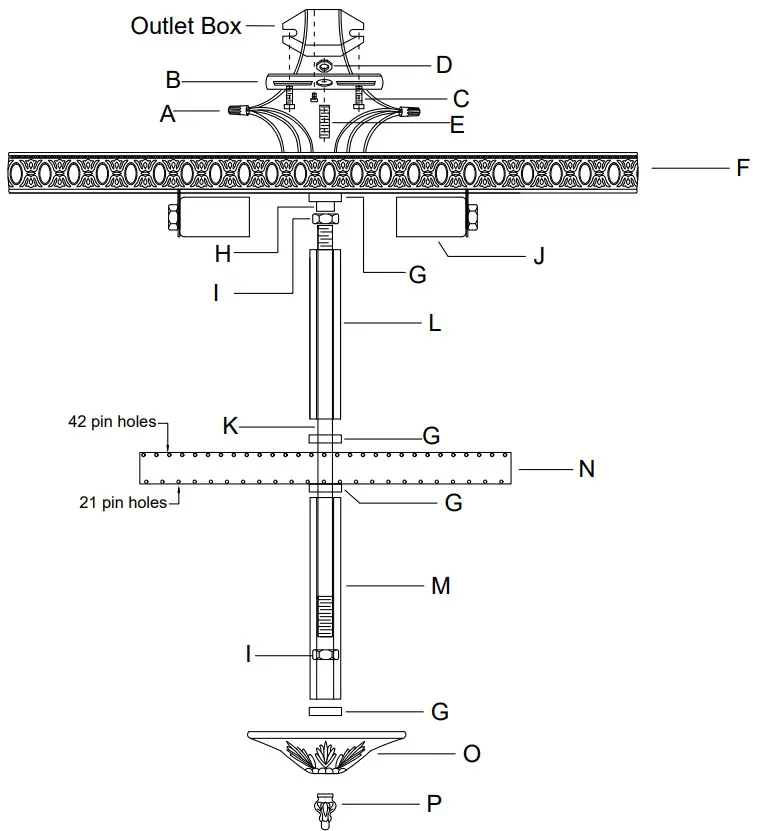

Part Numbers
A. (2)-Wire Connector
B. (1)-Mounting bar
C. (2)-Screw
D. (1)-Hex nut
E. (1)-Thread nipple
F. (1)-Frame ; Ø18″ ; 42 pin holes ; with inner plate.
G. (4)-Check ring
H. (1)-Coupling
I. (2)-Hex Nut
J. (4)-Socket
K. (1)-Stem ; H10″-XSN718CHSTEM10IN
L. (1)-Tube ; H4 1/8″-XSN718CHSTEM4.125IN
M.(1)-Tube ; H5″-XSN718CHSTEM5IN
N. (1)-Metal ring ; Ø9″ ; 42 pin holes for up side ;
21 pin holes for lower side.
O. (1)-Vase Cap ; Ø3″ ; 21 pin holes-XSN718CHCAP
P. (1)-Finial-XSN718CHFIN
