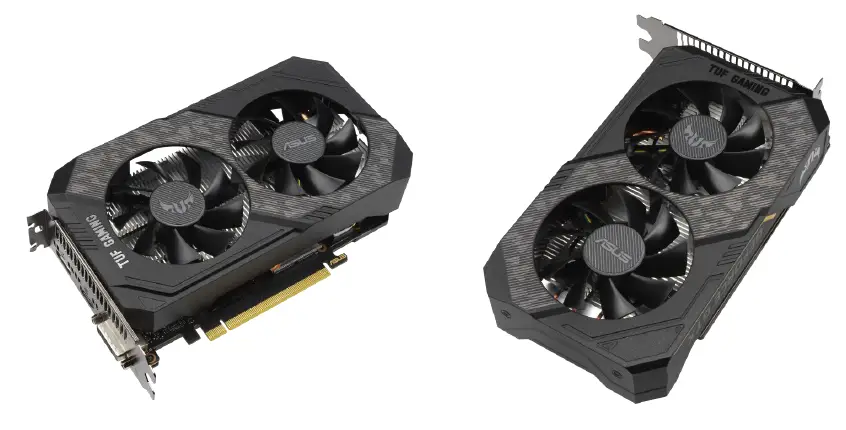

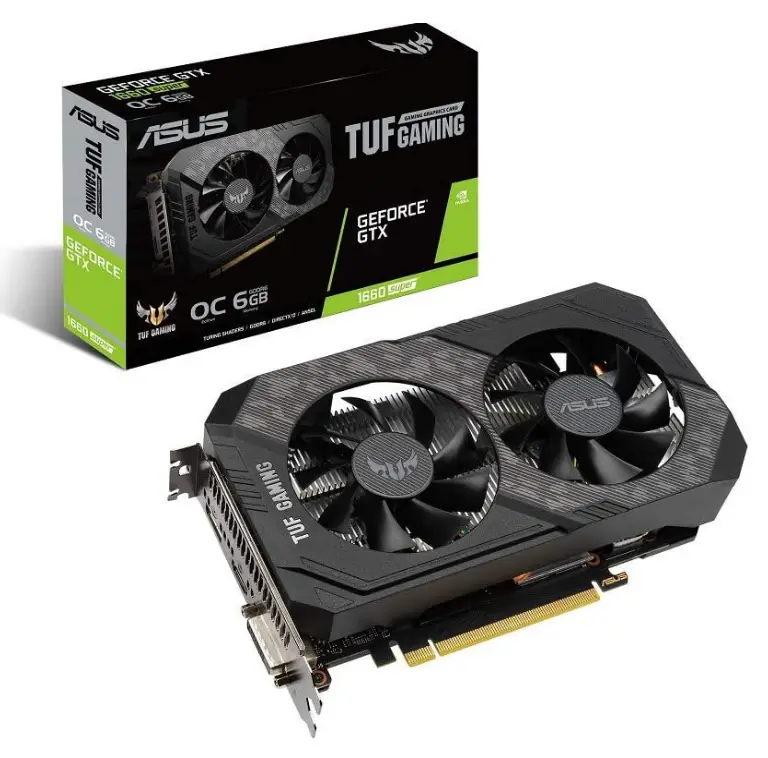

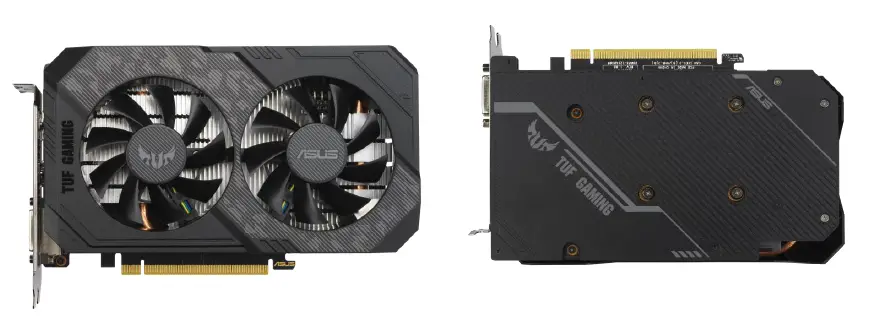

ASUS TUF-GTX1660S-O6G GeForce Gaming Graphics Card
ASUS Exclusive Innovations
- The GeForce GTX 1660 SUPER
is up to 20% faster than the original GTX 1660 and up to 1.5X faster than the previous-generation GTX 1060 6GB. Powered by the award-winning NVIDIA Turing™ architecture and ultra-fast GDDR6 memory, it’s a supercharger for today’s most popular games. Time to gear up and get SUPER. - Ultra-fast GDDR6
with over 50% more memory bandwidth for high-speed gaming. - GeForce Experience
Capture and share videos, screenshots, and live streams with friends. Keep your drivers up-to-date and optimize game settings. GeForce Experience lets you do it all, making it the essential companion to your GeForce graphics card. - Space-grade Lubricant

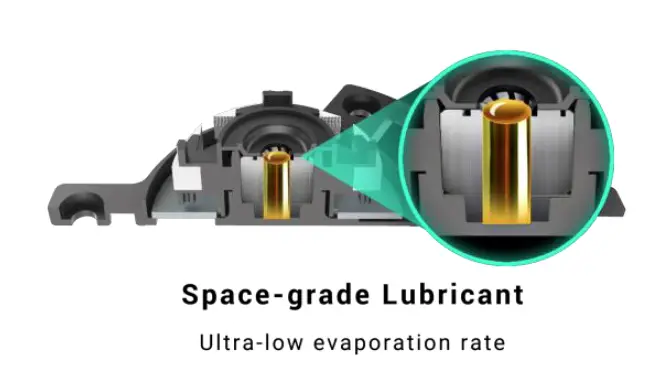

A new lubricant allows these sleeve bearings to deliver a quieter acoustic profile than dual ball-bearing designs and match their durability. - DirectCU II

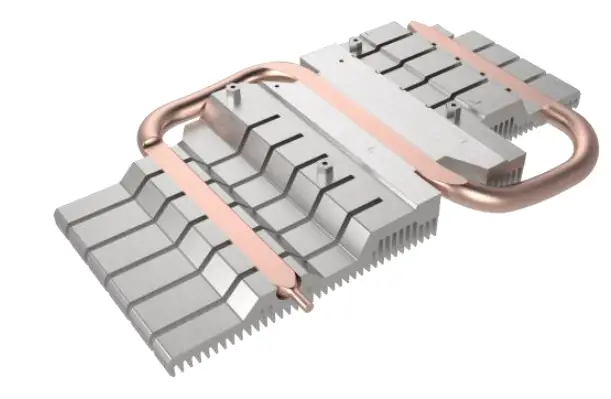

Copper Heatpipe makes direct contact with the die for improved thermal transfer. - TUF Compatibility Testing

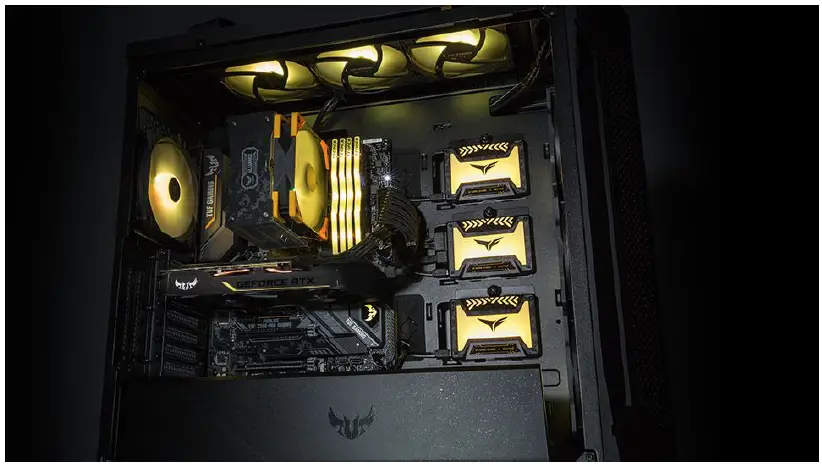

A suite of tests ensures flawless compatibility with TUF Gaming motherboards, chassis, and other TUF alliance products. - Auto-Extreme Technology

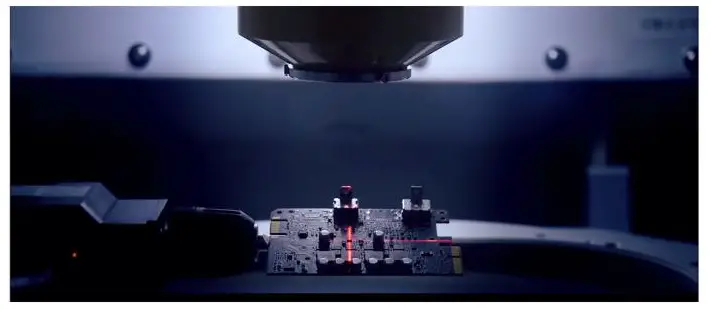

An automated manufacturing process that enhances reliability. - Protective Backplate

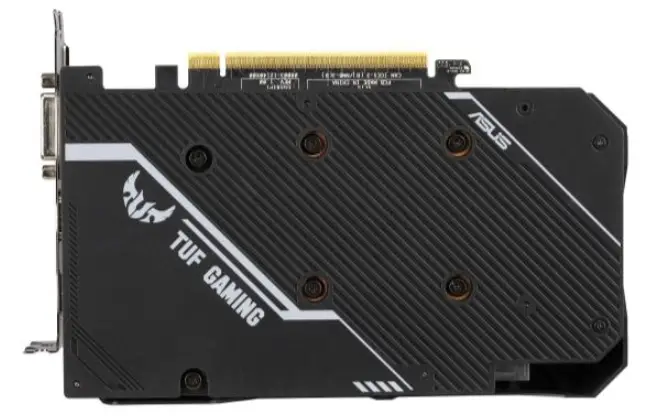

A rigid backplate prevents PCB flex and trace damage. - Software Suite

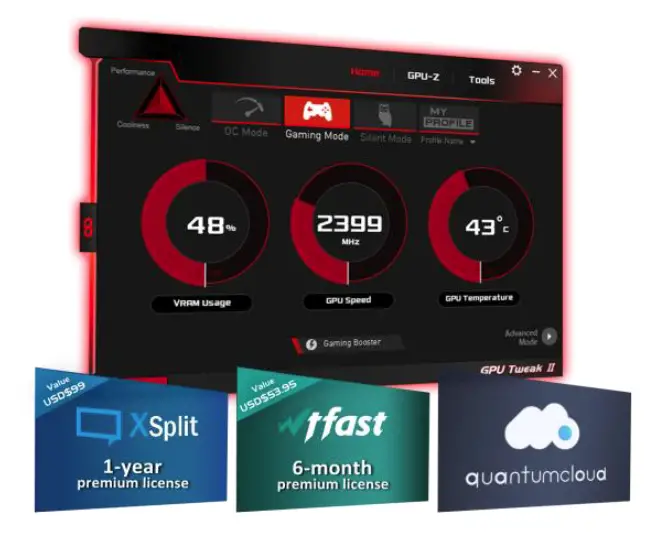

Tweak performance with GPU Tweak II, stream games with XSplit Gamecaster, get a better connection to game servers with wtfast, and earn passive income with Quantumcloud.
Free 1-year premium XS split Gamecaster (USD 99.95 /yr). Six-month wtfast premium license* a USD$53.95 value to let user enjoy online gaming that’s free from lag, latency, and lost packets.
A new lubricant allows these sleeve bearings to deliver a quieter acoustic profile than dual ball-bearing designs and match their durability.
Copper Heatpipe makes direct contact with the die for improved thermal transfer.
A suite of tests ensures flawless compatibility with TUF Gaming motherboards, chassis, and other TUF alliance products.
An automated manufacturing process that enhances reliability.
A rigid backplate prevents PCB flex and trace damage.
Tweak performance with GPU Tweak II, stream games with XSplit Gamecaster, get a better connection to game servers with wtfast, and earn passive income with Quantumcloud.ASUS Features
- OC Edition:
1845 MHz GPU boost clock in OC mode for an outstanding gaming experience. - 6 GB GDDR 6 Memory:
Onboard memory for the best gaming experience and the best resolution.
Graphics GPU Features
- TURING SHADERS
Featuring concurrent execution of floating point and integer operations, adaptive shading technology, and a new unified memory architecture with twice the cache of its predecessor, Turing shaders enable awesome performance increases in today’s games. Get 1.4X power efficiency over the previous generation for a faster, cooler, and quieter gaming experience.
- NVIDIA STUDIO
Create without compromise. Studio combines NVIDIA GeForce GPUs with exclusive NVIDIA Studio Drivers designed to supercharge creative applications. Unlock dramatic performance and reliability so you can create at the speed of imagination.
- NVIDIA ANSEL
This powerful photo mode lets you take professional-grade screenshots of your games like never before. Now, you can share your most brilliant gaming experiences with super-resolution, 360-degree, HDR, and stereo capture modes.
- BROADCAST LIKE A PRO
Ge Force GTX® 16 SUPER™ Series features a dedicated hardware encoder that unlocks the ability to game and stream simultaneously with superior quality. SUPER graphics cards are optimized for your favorite streaming apps to provide maximum performance for your live stream.
- FRAMES WIN GAMES
Battle Royale games demand high FPS. Get the competitive edge you need with GeForce.
I/O Specifications
| Hardware Specification | |||
| Model | TUF-GTX1660S-O6G-GAMING | ||
| Graphics Engine | GeForce® GTX 1660 SUPER™ | ||
| CUDA cores | 1408 | ||
| OpenGL | OpenGL® 4.6 | ||
|
Engine Clock | OC mode: 1845 MHz (Boost Clock)
Gaming mode: 1815 MHz (Boost Clock)/1530 MHz (Base Clock) | ||
| Memory Interface | 192-bit | ||
| Video Memory | 6GB GDDR6 | ||
| Memory Clock | 14002 MHz | ||
| Power Connector | 1x 8 pin | ||
|

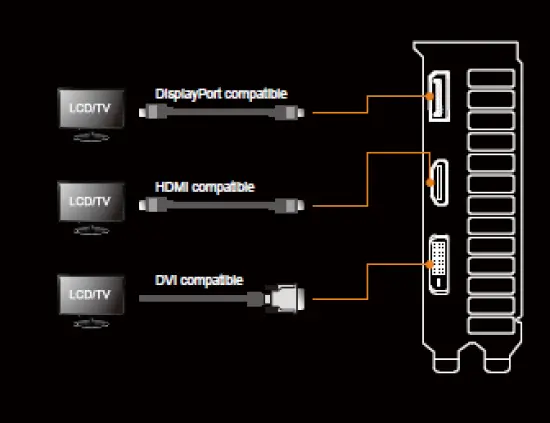

I/O | 1x Native HDMI 2.0b
1x Native DisplayPort 1.4 1x DVI-D | ||
| HDCP compliant | HDCP 2.2 | ||
| Digital Max Resolution | 7680 x 4320 | ||
| Maximum Display Support | 3 | ||
| NVLink/ Crossfire Support | N/A | ||
| Recommended PSU | 450 W | ||
| Bus Standard | PCIE 3.0 | ||
| Package Contents | 1x Speedsetup Manual | ||
|
Software Bundled | ASUS GPU Tweak II & Driver, please download all software from the
support site. | ||
| Slot | 2.3 slot | ||
| Dimension | |||
|
Card Size (cm/inch) | 20.6 x 12.4 x 4.6 cm
8.1 x 4.9 x 1.8 inches | ||
| Color Box (mm) | 364 x 217 x 66 mm | ||
| Weight | |||
| Single Card (KG) | 0.64 | ||
| Product Weight
(with packing) (KG) |
1.08 | ||
|
Note |
*All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third parties to ASUS based on false advertising or any other issues caused by using false specifications of ASUS products. | ||
FREQUENTLY ASKED QUESTIONS
The ASUS TUF-GTX1660S-O6G is a graphics card designed for gaming. It is powered by the NVIDIA GeForce GTX 1660 Super GPU, which is known for its excellent performance in modern games.
The key features of the ASUS TUF-GTX1660S-O6G graphics card include 6GB of GDDR6 memory, a dual-fan cooling system, IP5X dust resistance, and TUF compatibility testing for durability and stability.
The price of the ASUS TUF-GTX1660S-O6G graphics card varies depending on the retailer and region, but it typically ranges from $300 to $400 USD.
The ASUS TUF-GTX1660S-O6G graphics card supports a maximum resolution of 7680 x 4320 pixels.
The dimensions of the ASUS TUF-GTX1660S-O6G graphics card are 20.3 x 12.1 x 4.4 centimeters (L x W x H).
The ASUS TUF-GTX1660S-O6G graphics card requires a minimum power supply of 450 watts.
The ASUS TUF-GTX1660S-O6G graphics card has 6GB of GDDR6 memory.
The memory interface of the ASUS TUF-GTX1660S-O6G graphics card is 192-bit.
The graphics card core clock speed of the ASUS TUF-GTX1660S-O6G is 1530 MHz.
The graphics card boost clock speed of the ASUS TUF-GTX1660S-O6G is 1830 MHz.
No, the ASUS TUF-GTX1660S-O6G does not support SLI or CrossFire.
The ASUS TUF-GTX1660S-O6G graphics card has one HDMI 2.0b port and three DisplayPort 1.4 ports.
Yes, the ASUS TUF-GTX1660S-O6G graphics card supports virtual reality (VR) applications.
Yes, the ASUS TUF-GTX1660S-O6G graphics card is compatible with Windows 10 and other supported operating systems.
The warranty period for the ASUS TUF-GTX1660S-O6G graphics card varies depending on the retailer and region, but it is typically around 3 years.
DOWNLOAD THE PDF LINK: ASUS TUF-GTX1660S-O6G GeForce Gaming Graphics Card Specification and Datasheet
