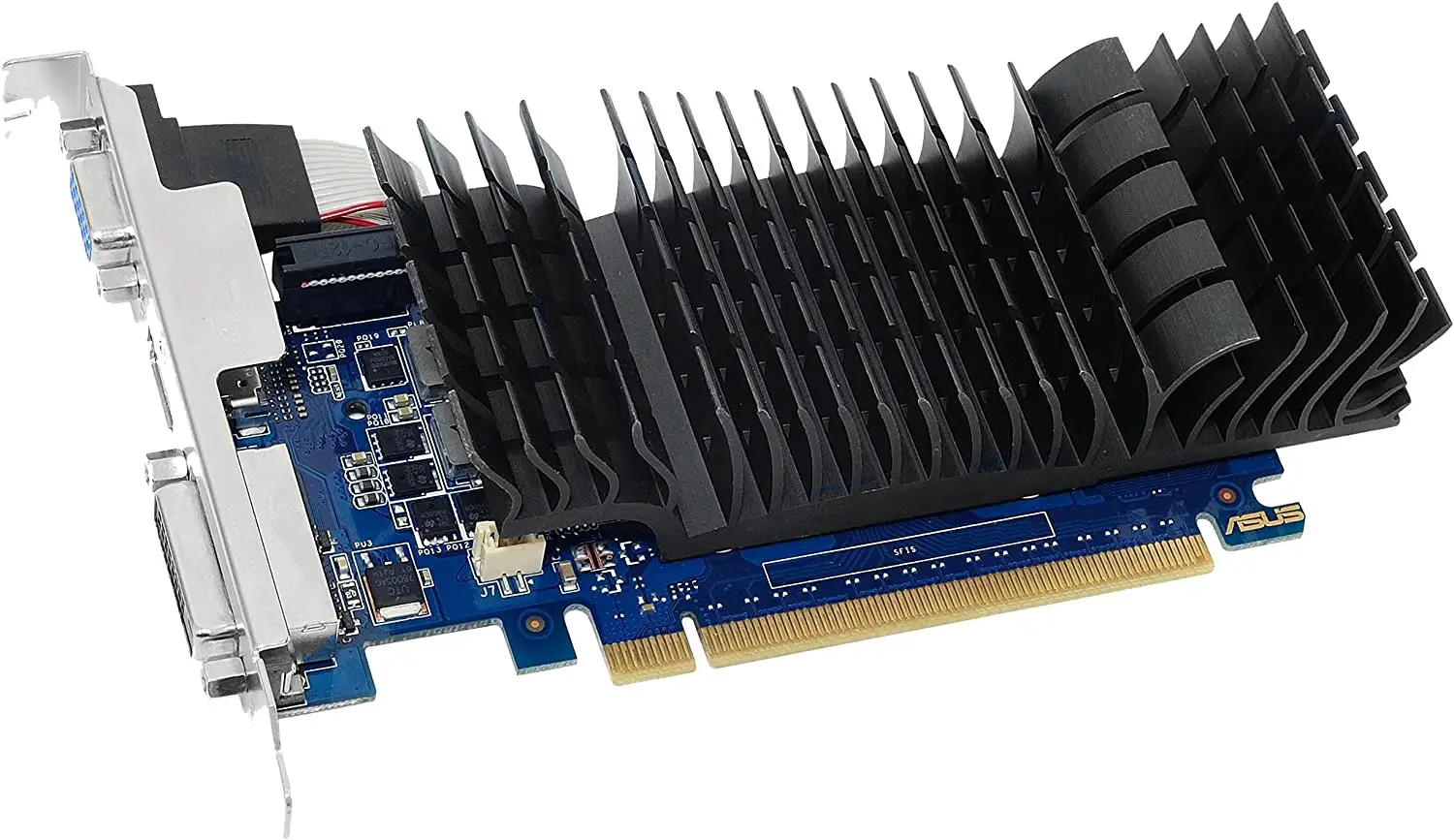

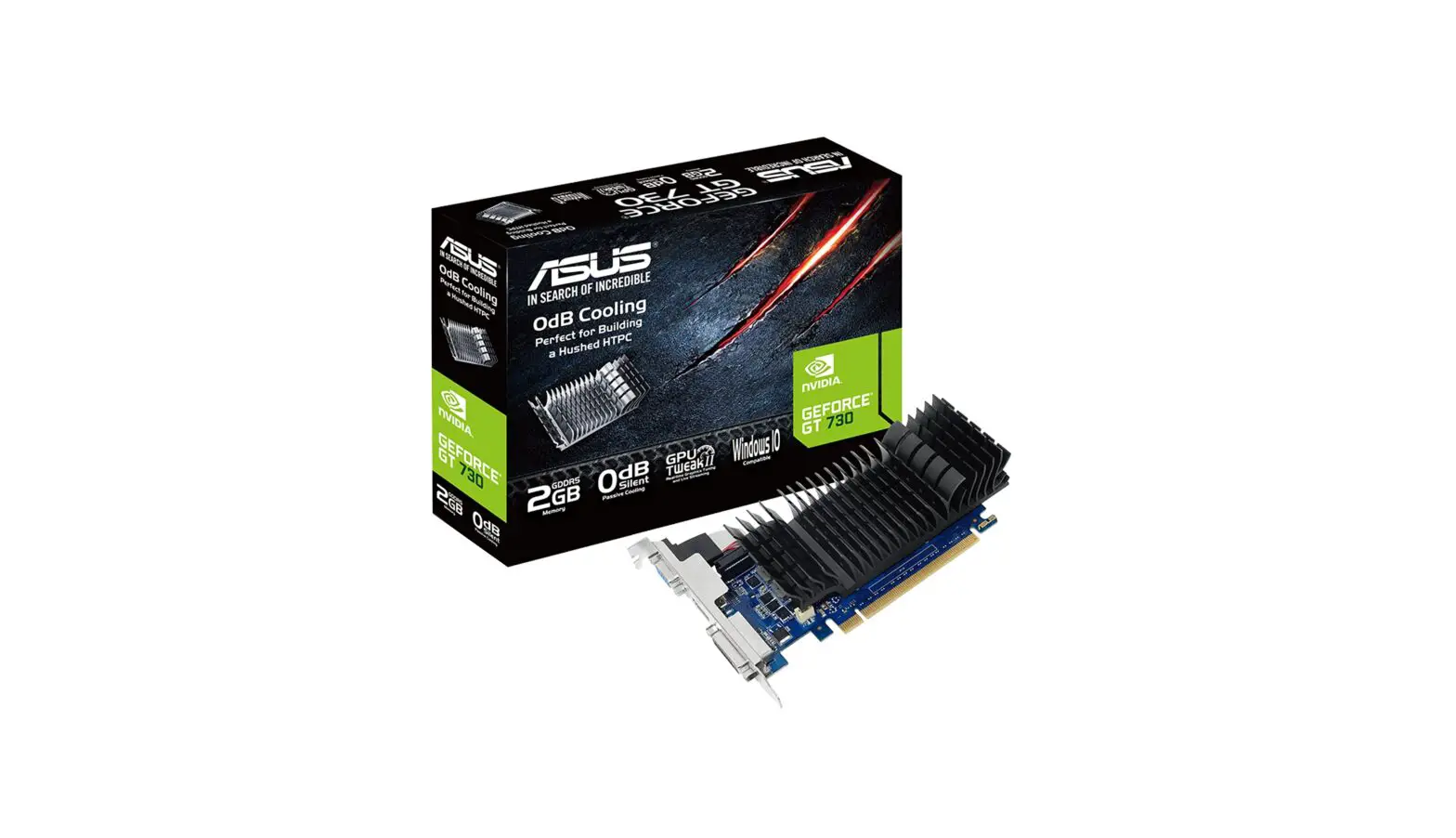

ASUS GT730-SL-2GD5-BRK Graphics Card
Auto-eXtreme technology for better Performance & Longevity!
ASUS Exclusive Innovations
0dB Cooling
Perfect for building a hushed HTPC
Exclusive ASUS-designed heatsinks with large surface areas effectively cool graphics cards passively so absolutely no sound is produced while running- perfect for high definition and silent home theater PCs and multimedia centers.
ASUS GPU Tweak II Utility
Tweak Till your Heart’s Content with an intuitive new UI, GPU Tweak II makes overclocking easier than ever and features a gaming booster to maximize graphics performance.
Auto-eXtreme Technology
Premium quality and best reliability Auto-eXtreme Technology is an industry-first, 100%automated production process that incorporates premium materials to set a new standard of graphics card quality, performance, and longevity.
Gigantic 2GB GDDR5 Memory
On-board memory for the best gaming experience & the best resolution
Low Profile Design
Perfect for mini-ITX PCs ASUS gets graphics card design done right for HTPC and multimedia PC use. Products are powered to easily run current game titles at 1280 x 1024 resolution and play smooth Blu-ray 3D content.
Graphics GPU Feature
GEFORCE GT730
NVIDIA® Adaptive V-Sync: NVIDIA Adaptive Vertical Sync adjusts VSync to the current frame rates for maximum playability
NVIDIA PhysX ready: Dynamic visual effects like blazing explosions, reactive debris, realistic water, and lifelike characters.
DirectX 11: DirectX 11 GPU-accelerated tessellation allows more detailed geometry to be packed into a scene, allowing characters to be rendered with cinema-quality detail.
Microsoft Windows 10 compatible: Gives you access to advanced computing experiences with the latest operating system so you get more done with your PC
Hardware Specification
| Model | GT730-SL-2GD5-BRK |
| Graphics Engine | NVIDIA®GeForce® GT730 |
| Bus Standard | PCI Express® 2.0 |
| OpenGL | OpenGL® 4.4 |
| Video Memory | 2048MB GDDR5 |
| GPU Clock | 902 MHz |
| Cuda Cores | 384 |
| Memory Clock | 1252 MHz(5010 MHz GDDR5) |
| Memory Interface | 64 bit |
| DVI Max. Resolution | 2560*1600 |
| DVI Output | 1x Native Dual-link DVI-D |
| HDMI Output | 1x Native HDMI |
| HDCP compliant | YES |
| Software Bundled | ASUS GPU Tweak II & Driver |
| Dimension | 16.5 * 6.9 * 3.9cm |
- Specifications are subject to change without notice.
- PCB color and bundled software versions are changed without notice.
- Brand and product names mentioned are trademarks of their respective company.
FAQ’s
Yes, it comes with two low-profile brackets. One has a slot for VGA only, and the other has slots for HDMI and DVI.
Yes, it will work in a PCIe 2.0 slot.
The bracket that came attached to the graphics card is a standard-sized bracket. The graphics card also includes a low-profile bracket that can be installed on the card for compact computer cases.
The ASUS GT 730 comes with 2 sizes of motherboard brackets. The shortest ones appear to be able to be mounted in a small form factor computer. The mounting bracket already installed is for a full-size case, you can use VGA( D-sub), DVI, and HDMI. With the extra 2 brackets, you get either VGA on the bracket or HDMI and DVI on the bracket. You need to check your power supply. The specs for the computer show it could be either a 230 amp or a 320 amp power supply. The GT 730 recommends a minimum of 300 amps.
Per the ASUS website, Max Resolution is 3840 x 2160
The graphics card comes with extra brackets( 2 in a plastic bag and one on the card). The one on the card will fit most standard cases. Your SFF case will not likely be able to use it. Using one of the extra brackets should allow you to modify the card to fit your case. Using these brackets will cause you to lose some of your output connectors.
Yes, it is a plug-in card and it receives its power from the main computer power supply, as do all plug-in cards.
It is compatible with an older HP with the proper video slot on the MB. I would say, if the 400 has a video X16 slot, it will likely work.
The 730 nominally has a 60W rating, but this is assuming that you are gaming to the max. I use it in my HP5000 with a 240W supply and no problems, but I do not do gaming with it. You should determine how much of that 240W is being used and judge accordingly.
Being a single-slot card, the NVIDIA GeForce GT 730 does not require any additional power connector, its power draw is rated at 38 W maximum.
Energy consumption: 49 watts. – Minimum source (recommended): 300 watts.
Get impressive graphics and high-resolution quad-display performance from the NVIDIA® GeForce® GT 730 Graphics Card. Enjoy support for up to four displays from Dual-Link DVI and DisplayPort connectors.
Download this PDF Link: ASUS GT730-SL-2GD5-BRK Graphics Card Specifications and Datasheet
