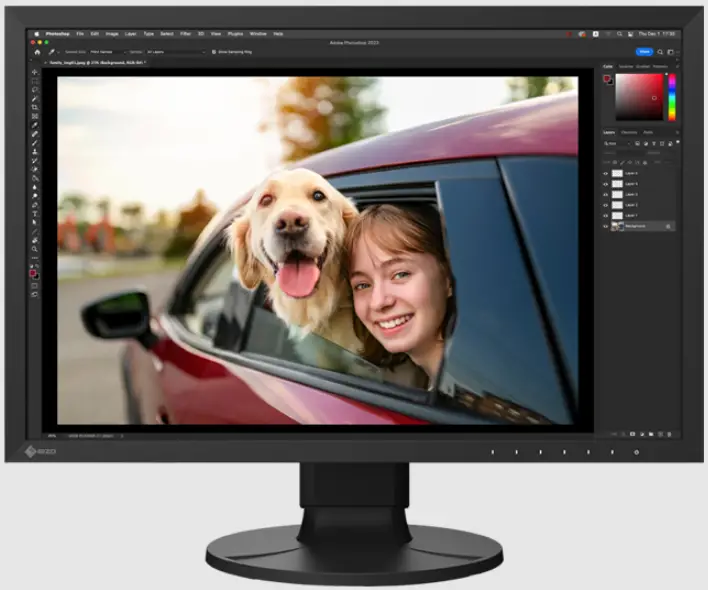

EIZO CS2400R Color Management LCD Monitor User Manual
DisplayPort™ / USB Type-C®
:10 / 8 bit
| Resolution | Scan*1 | V Freq.[Hz] | YCbCr 4:4:4 | YCbCr 4:2:2 | RGB 4:4:4 |
| 640 × 480 | P | 59.940 | | | |
| 640 × 480 | P | 60.000 | | | |
| 720 × 400 | P | 70.087 | | | |
| 720 × 480 | P | 59.940 | | | |
| 720 × 480 | P | 60.000 | | | |
| 720 × 576 | P | 50.000 | | | |
| 800 × 600 | P | 60.317 | | | |
| 1024 × 768 | P | 60.004 | | | |
| 1280 × 720 | P | 50.000 | | | |
| 1280 × 720 | P | 59.940 | | | |
| 1280 × 720 | P | 60.000 | | | |
| 1600 × 1200 | P | 60.000 | | | |
| 1920 × 1080 | P | 23.976 | | | |
| 1920 × 1080 | P | 24.000 | | | |
| 1920 × 1080 | P | 25.000 | | | |
| 1920 × 1080 | P | 29.970 | | | |
| 1920 × 1080 | P | 30.000 | | | |
| 1920 × 1080 | I | 50.000 | | | |
| 1920 × 1080 | P | 50.000 | | | |
| 1920 × 1080 | P | 59.934 | | | |
| 1920 × 1080 | I | 59.940 | | | |
| 1920 × 1080 | P | 59.940 | | | |
| 1920 × 1080 | I | 60.000 | | | |
| 1920 × 1080 | P | 60.000 | | | |
| 1920 × 1200 | P | 24.000 | | | |
| 1920 × 1200 | P | 30.000 | | | |
| 1920 × 1200 | P | 59.950 | | | |
P: Progressive, I: Interlace
HDMI®
: 12 / 10 / 8 bit
| Resolution | Scan*1 | V Freq. [Hz] | YCbCr 4:4:4 | YCbCr 4:2:2 | RGB 4:4:4 |
| 640 × 480 | P | 59.940 | | | |
| 640 × 480 | P | 60.000 | | | |
| 720 × 400 | P | 70.087 | | | |
| 720 × 480 | P | 59.940 | | | |
| 720 × 480 | P | 60.000 | | | |
| 720 × 576 | P | 50.000 | | | |
| 800 × 600 | P | 60.317 | | | |
| 1024 × 768 | P | 60.004 | | | |
| 1280 × 720 | P | 50.000 | | | |
| 1280 × 720 | P | 59.940 | | | |
| 1280 × 720 | P | 60.000 | | | |
| 1440 × 480 | I | 59.940 | | | |
| 1440 × 480 | I | 60.000 | | | |
| 1440 × 576 | I | 50.000 | | | |
| 1600 × 1200 | P | 60.000 | | | |
| 1920 × 1080 | P | 23.976 | | | |
| 1920 × 1080 | P | 24.000 | | | |
| 1920 × 1080 | P | 25.000 | | | |
| 1920 × 1080 | P | 29.970 | | | |
| 1920 × 1080 | P | 30.000 | | | |
| 1920 × 1080 | P | 50.000 | | | |
| 1920 × 1080 | I | 50.000 | | | |
| 1920 × 1080 | P | 59.934 | | | |
| 1920 × 1080 | P | 59.940 | | | |
| 1920 × 1080 | I | 59.940 | | | |
| 1920 × 1080 | P | 60.000 | | | |
| 1920 × 1080 | I | 60.000 | | | |
| 1920 × 1200 | P | 24.000 | | | |
| 1920 × 1200 | P | 30.000 | | | |
| 1920 × 1200 | P | 59.950 | | | |
P: Progressive, I: Interlace
Copyright © 2023 EIZO Corporation. All rights reserved. 03V60468A1 UM-CS2400R-RESO 1st Edition – February, 2023
