QUICK REFERENCE GUIDE > CI302DTB4
Induction Cooktop, 30cm, 2
Zones with SmartZone
Series 9 Minimal
Black Glass

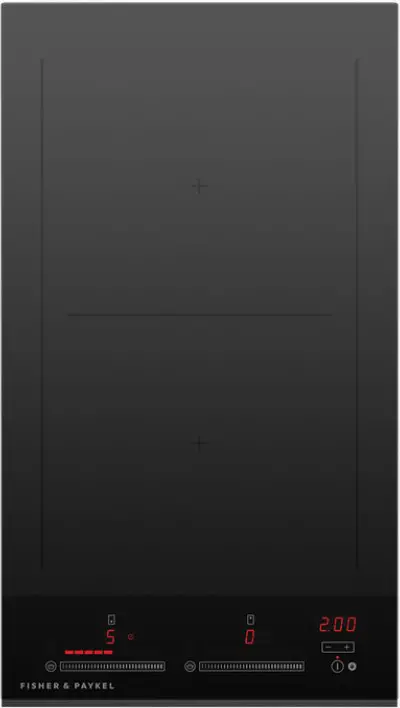

CI302DTB4 30cm 2 Zones with SmartZone Induction Cooktop
Enjoy the ability to create a large cook zone with SmartZone, or to match with a two-burner gas cooktop.
- Immediate heat response and extremely accurate temperature control
- Cooktop remains cool to touch until a pot or pan is placed on the surface
- Power Boost activates a very high heat, bringing liquid to boil in less than a minute
- Easily control each cook zone with Touch Slide, including pairing cook zones to create a large SmartZone
DIMENSIONS
| Height | 54mm |
| Width | 300mm |
| Depth | 530mm |
FEATURES & BENEFITS
COMPLEMENTARY DESIGN
The subtle black glass and durable matte black detailing are designed to pair with the Minimal style Series 9 Ovens. With premium styling and detailing, these cooktops seamlessly blend with other appliances for a cohesive, considered kitchen design.
ENHANCED FEATURES
Power Boost and Gentle Heat deliver either very high or very low heat, fast. Perfect for specialized cooking tasks such as searing meat and melting chocolate. An integrated timer ensures a great result every time
INSTANT RESPONSE
Go from a boil to a simmer in seconds. Touch Slide controls react immediately when you adjust the temperature so you don’t waste time in the kitchen.
SAFER CHOICE
Induction cooktops only start heating your pot or pan once you’ve placed it on the ceramic surface and stop as soon as you remove it – so you don’t have to worry about curious little fingers or leaving a cook surface on.
EASY CLEANING
The surface around your cookware stays cool when you cook – preventing baked-on spills and making cleaning up a breeze. The ceramic cooktop surface, including anodized detailing for durability, just needs a quick wipe after use to maintain its good looks.
SUPERIOR EFFICIENCY
Less heat is wasted during induction cooking because only the cookware is heated, not the cooktop surface. This makes induction cooking more energy-efficient than electric or gas cooktops.
SPECIFICATIONS
Accessories
| Joiner kit | Part 534731 (required to join |
Cleaning
| Flat easy clean glass surface | • |
| Pan detection system | • |
Consumption
| Heating efficiency | 86% |
| Standby power | • |
Controls
| Auto cut-off timer for each | • |
| Minute timer | • |
| Soft-touch electronic controls | • |
| Touch and slide controls | • |
Performance
| Auto heat reduce | • |
| Gentle heat | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| Power Boost | • |
| SmartZone | • |
| Zone bridging | • |
Power requirements
| Maximum power | 3.7kW |
| Standby power | • |
| Supply frequency | 60Hz |
| Supply voltage | 220-240V |
Product dimensions
| Depth | 530mm |
| Height | 54mm |
| Width | 300mm |
Safety
| Keylock | • |
| Pan detection system | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
Warranty
| Parts and labour | 1 year |
Zone ratings
| Left front zone (Power Boost | 2100W (3700W) |
| Left rear zone (Power Boost | 2100W (3700W) |
| Power Boost | up to 3700W |
Zones
| Number of elements | 2 |
| SKU | 82028 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
