EZCONNEX 4-Port Float Connection System
Product Information
The product is designed for easy installation of float switches
in wet well applications. It includes a single 8 conductor direct
burial cable with Red-Blue-Yellow-White wire pairs that match the
R-B-Y-W colored caps on the manifold housing for easy
identification and field wiring. The color-coded cable allows for
quick and easy installation. The product also features quick
release float switch connections and a mounting bracket for easy
maintenance and replacement of floats.
The manifold options include:
- 4-Port Manifold
The float switch options include:
- NORMALLY OPEN (HIGH LEVEL) float switches
- NORMALLY CLOSED (LOW LEVEL) float switches
The product is patented in the US (Patent No. 9,559,455 and
9,583,867), Canada (Patent No. 2,891,806), and China (Patent No.
105322354). The product is made of ABS plastic and has a shipping
weight ranging from 4.57 lbs. to 11.98 lbs.
The cable specifications are as follows:
- Type: direct burial shielded PVC Type TC-ER TFFN (UL)
- Voltage: 600V
- Gauge: 18
- Conductors: 8
The electrical specifications are as follows:
- Maximum Electrical Load: 1 amp per connection port
- Operating Voltage: 125 VAC
The mounting bracket is made of 304 stainless steel.
Product Usage Instructions
1. Ensure that the manifold does not have any open port(s)
before installation.
2. Identify the Red-Blue-Yellow-White wire pairs on the 8
conductor direct burial cable.
3. Match the wire pairs with the corresponding R-B-Y-W colored
caps on the manifold housing for easy identification and field
wiring.
4. Use the quick release float switch connections to connect the
floats to the manifold.
5. Attach the mounting bracket for easy maintenance and
replacement of floats.
NOTE: If there are any unused ports, order a sealing plug for
each unused port and install it to prevent any issues.
6. Follow the instructions for NORMALLY OPEN (HIGH LEVEL) or
NORMALLY CLOSED (LOW LEVEL) operation:
- NORMALLY OPEN (HIGH LEVEL) OPERATION:
- Use the float switch with the blue colored cap.
- The control switch turns on (closes) when the switch tips above
horizontal, indicating a high level. - The control switch turns off (opens) when the switch drops
below horizontal.
- NORMALLY CLOSED (LOW LEVEL) OPERATION:
- Use the float switch with the red colored cap.
- The control switch turns on (closes) when the switch drops
below horizontal, indicating a low level. - The control switch turns off (opens) when the switch tips above
horizontal.
EZCONNEX® 4-PORT FLOAT CONNECTION SYSTEM
Designed for Easy Installation of Float Switches in Wet Well Applications

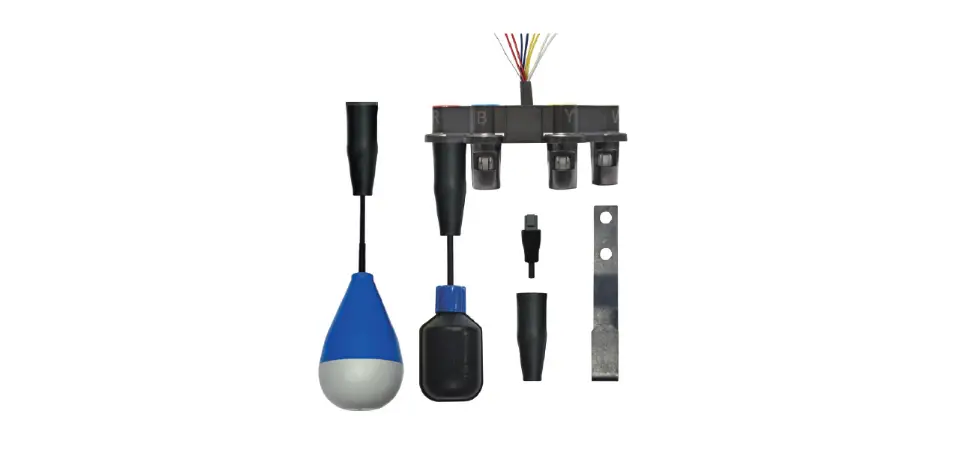

The EZconnex® float switch connection system is a revolutionary new way to install float switches in a wet well for level control applications. It includes an electrical wiring manifold with four quick release float switch connection ports, mounting bracket and hardware. Installation is as easy as 1, 2, 3…Simply install the manifold, plug in the quick connect floats, and wire the manifold cable to the control panel.
A single 8 conductor direct burial cable has Red-Blue-Yellow-White wire pairs that match the R-B-Y-W colored caps on the manifold housing for easy identification and field wiring. The color-coded cable makes for a quick, easy installation. The quick release float switch connections and mounting bracket allow for easy maintenance and replacement of floats.
The EZconnex® system can be used with 1, 2, 3 or 4 float switches. Each float switch includes a protective rubber boot that provides a dual seal design for an extra layer of protection to keep connections clean and dry. A range of wide-angle and narrow-angle float switch options are available with quick release connection to suit application needs (sold separately). Sealing plugs are available for unused manifold ports (sold separately).
NOTE: Do not install manifold with open port(s).
FEATURES
· (4) Quick release float connection ports for easy maintenance in the wet well
· A single 8-conductor direct burial cable with colored wire pairs for easy and clean field wiring of the control panel
· Manifold housing includes Red-Blue-Yellow-White colored caps that match RedBlue-Yellow-White wire pairs in manifold cable for easy identification and field wiring
· Can be used with 1-4 float switches; sealing plug(s) available for unused manifold port(s)
· Rated for short-term water submersion in water
· Includes mounting bracket; float switches and sealing plugs must be ordered separately
OPTIONS
Manifold Options:
· Standard cable lengths of 25, 50, or 100 ft (7.62, 15.24, or 30.48 m)
· Sealing plug (includes rubber boot) required for unused port(s)
Float Switch Options:
· EZconnex® SJE MilliAmpMasterTM Float switches: these are SJE MilliAmpMasterTM control switches that feature the quick release connection. Please see the SJE MilliAmpMasterTM control switch section in this catalog for complete specifications.
· Available in standard cable lengths of 5, 10, or 20 ft (1.52, 3.05, or 6.10 m)
· Colored caps for easy identification (blue cap = normally open; red cap = normally closed)
· Two float mounting configurations available; mounting clamp or cable weight
· EZconnex® SJE MegaMaster® Float switches: these are SJE MegaMaster® control switches that feature the quick release connection. Please see the SJE MegaMaster® control switch section in this catalog for complete specifications.
· Available in standard cable lengths of 10, 25, or 50 ft (3.05, 7.62 or 15.24 m)
· Optional 6-hook mounting bracket available (sold separately)
US Patent No. 9,559,455 and 9,583,867 CA Patent No. 2,891,806
China Patent No. 105322354
Mechanical
9500251J Rev 02/23 © 2020 SJE, Inc. All Rights Reserved. SJE Rhombus is a trademark of SJE, Inc.
www.sjerhombus.com · Toll Free 888-342-5753
G.3
EZCONNEX® 4-PORT FLOAT SWITCH CONNECTION SYSTEM – Manifold/float connection system designed for easy installation of 1-4 float switches in a wet well for level control applications.
Part # 1053987 1053988 1053989
Part # 1046922 1046924 1050721 1054141 1054145 1054150
Part # 1046918 1046920 1050841 1054143 1054147 1054152
Part # 1059056 1059058 1059060 Options Part # 1047611 1052814
Description (4-Port Manifold)
EZconnex®, 4-Port, 25 ft., with Mounting Bracket
EZconnex®, 4-Port, 50 ft., with Mounting Bracket
EZconnex®, 4-Port, 100 ft., with Mounting Bracket
EZ CONNEX® FLOAT SWITCH NARROW-ANGLED VERSIONS
NORMALLY OPEN
NORMALLY CLOSED
Description
Part #
Description
5MAPNPCNOEZ
1046923
5MAPNPCNCEZ
10MAPNPCNOEZ
1046925
10MAPNPCNCEZ
20MAPNPCNOEZ
1050840
20MAPNPCNCEZ
5MAPNCWNOEZ
1054142
5MAPNCWNCEZ
10MAPNCWNOEZ
1054146
10MAPNCWNCEZ
20MAPNCWNOEZ
1054151
20MAPNCWNCEZ
EZ CONNEX® FLOAT SWITCH WIDE-ANGLED VERSIONS
NORMALLY OPEN
NORMALLY CLOSED
Description
Part #
Description
5MAPWPCNOEZ
1046919
5MAPWPCNCEZ
10MAPWPCNOEZ
1046921
10MAPWPCNCEZ
20MAPWPCNOEZ
1050842
20MAPWPCNCEZ
5MAPWCWNOEZ
1054144
5MAPWCWNCEZ
10MAPWCWNOEZ
1054148
10MAPWCWNCEZ
20MAPWCWNOEZ
1054153
20MAPWCWNCEZ
EZ CONNEX® MEGAMASTER® FLOAT SWITCH
NORMALLY OPEN
NORMALLY CLOSED
Description
Part #
Description
10MEGANOEZ
1059057
10MEGANCEZ
25MEGANOEZ
1059059
25MEGANCEZ
50MEGANOEZ
1059061
50MEGANCEZ
Description
Sealing Plug (includes Rubber Boot)
6 Hook Bracket
N = Narrow Angle W = Wide Angle PC = Pipe Clamp CW = Cable Weight NO = Normally Open NC = Normally Closed EZ = EZconnex®
NOTE: One sealing plug must be ordered for each unused port. Do not install manifold with open port(s).
Shipping Weight 4.57 lbs. 7.04 lbs. 11.98 lbs.
Shipping Weight 0.86 lbs. 1.14 lbs. 1.79 lbs. 2.16 lbs. 2.44 lbs. 3.09 lbs.
Shipping Weight 0.86 lbs. 1.14 lbs. 1.79 lbs. 2.16 lbs. 2.44 lbs. 3.09 lbs.
Shipping Weight 2.6 lbs. 3.6 lbs. 5.1 lbs.
Shipping Weight 0.16 lbs. 2.0 lbs.
SPECIFICATIONS
MANIFOLD SPECIFICATIONS CABLE: direct burial shielded PVC Type TC-ER TFFN (UL) 600V 18 gauge,
8 conductor HOUSING: ABS plastic ELECTRICAL: 125 VAC
Maximum Electrical Load: 1 amp per connection port
FLOAT SPECIFICATIONS
· EZconnex® SJE MilliAmpMasterTM Float switches: these are SJE MilliAmpMasterTM control switches that feature the quick release connection. Please see the SJE MilliAmpMasterTM control switch section in this catalog for complete specifications.
· EZconnex® SJE MegaMaster® Float switches: these are SJE MegaMaster® control switches that feature the quick release connection. Please see the SJE MegaMasterTM control switch section in this catalog for complete specifications.
MOUNTING BRACKET SPECIFICATIONS
BRACKET: 304 stainless steel
OTHER INFORMATION
NORMALLY OPEN (HIGH LEVEL) OPERATION Blue colored cap, the control switch turns on (closes) when the switch tips above horizontal signaling a high level, and turns off (opens) when the switch drops below horizontal.
NORMALLY CLOSED (LOW LEVEL) OPERATION Red colored cap, the control switch turns on (closes) when the switch drops below horizontal signaling a low level, and turns off (opens) when the switch tips above horizontal.
Mechanical
G.4
www.sjerhombus.com · email: [email protected] SEE PRICE BOOK FOR PRICING.
