Prana Air Squair Air Monitor Instruction Manual (+ PDF)

SQUAIR MONITOR
INSTRUCTION MANUAL

know what you breathe

Contents hide

Address	Phone	Online
706, 7th floor, Crown heights, Rohini Sec-10, New delhi-110085, India	73918-73918	Email: [email protected] Website: www.pranaair.com

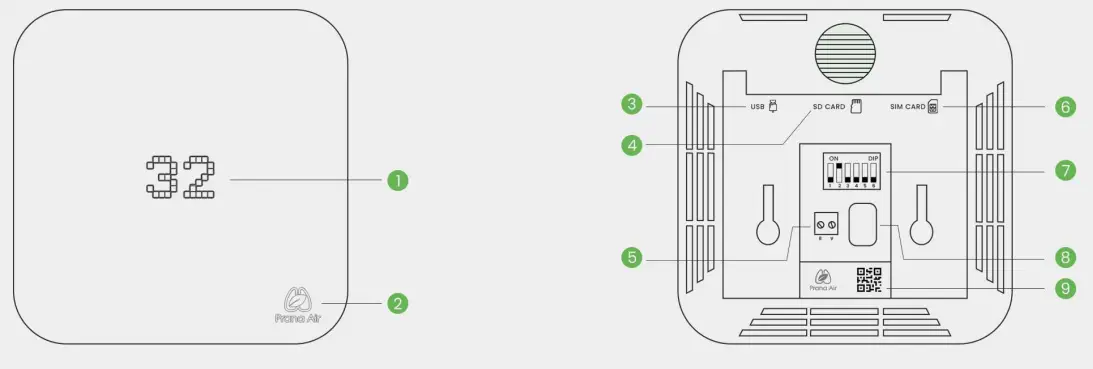

KNOW YOUR SQUAIR

For your reference:

1. LED light
2. Button
3. USB inlet
4. SD Card inlet
5. RS485 inlet

6. SIM Card inlet
7. Control buttons
8. Power socket
9. Device id QR Code

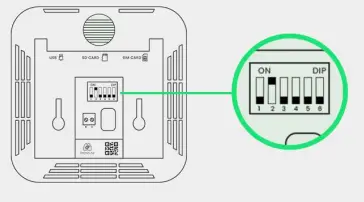

On the back side of your SQUAIR make sure switch Number 2 is ON and rest all switches are down.
Put your SQUAIR in AP mode, long press Prana air logo until you see “AP” on the LED Screen.

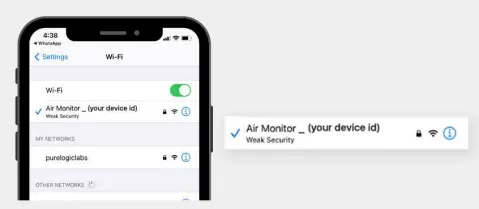

Search for “Air monitor_(your device id)” network in your phone’s Wi-Fi settings and connect to it with password “12345678″
Open your browser and type “192.168.4.1″ in the address bar. SSID: Select the wifi you want your SQUAIR to connect.
Open AQI App on your phone and create an account or simply log in if you already have one. Go to my devices and select SQUAIR from the given options
Enter the Device ID printed on the back side of SQUAIR or scan the QR code printed there.
Configure the device name of your choice.
Your device is now connected successfully, the data will be shown in the AQI dashboard.

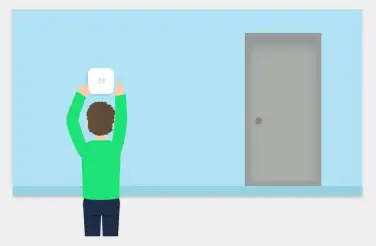

Place the SQUAIR Monitor anywhere inside your home, office, restaurant, clinic etc.

Prana Air Squair Air Monitor Instruction Manual
