FISHER PAYKEL RS32A72J1 Integrated French Door Refrigerator Freezer, 32 Inch, Ice

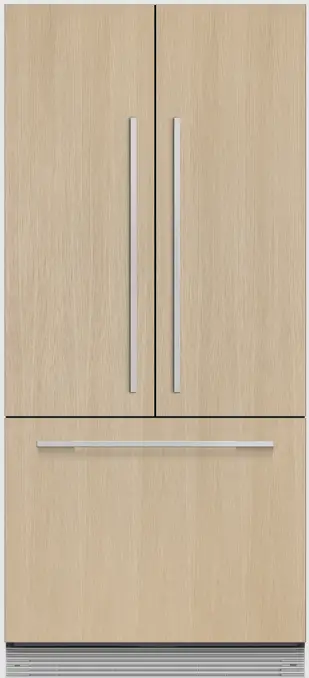

FISHER-PAYKEL-RS32A72J1-Integrated-French-Door-Refrigerator-Freezer-32-Inch-Ice-PRO

INTRODUCTION

Designed to seamlessly integrate into your kitchen. With minimal gaps and no visible hinges, this model has a flush fit to suit any kitchen layout.

  • ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
  • Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory.
  • With SmartTouch control panel for ease of use
  • Spacious bottom freezer with full extension drawer and ice maker with boost function

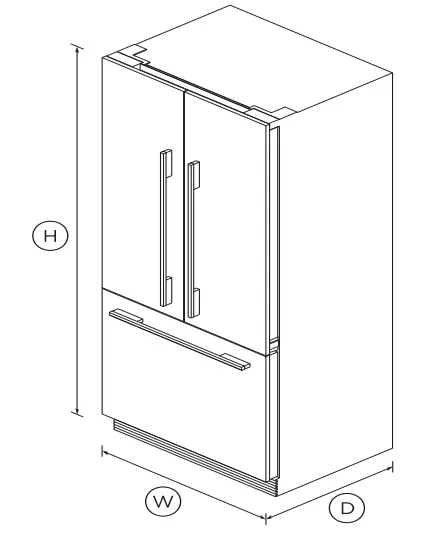

DIMENSIONS

FISHER-PAYKEL-RS32A72J1-Integrated-French-Door-Refrigerator-Freezer-32-Inch-Ice-1

  • Height 71 7/8″
  • Width 31 1/8″
  • Depth 23 11/16″

FEATURES & BENEFITS

PERFECT FIT
These models fit flush and have minimal gaps, with no visible hinges. Our Integrated refrigeration can be seamlessly hidden behind your cabinetry or you can purchase our stainless steel door panel.
ACTIVESMART™ FOODCARE
ActiveSmart™ Foodcare learns how you live. By understanding how you use your refrigerator and adjusting temperature, airflow and humidity inside, it helps keep food fresher for longer.
FLEXIBLE STORAGE
Designed to make it simple for you to store, sort and access food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our cantilevered shelving also gives you more storage options.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space, or during busy times you can boost ice production by up to 30%.
BEAUTIFUL LIGHTING
LED lighting illuminates the interior with a crisp, clean glow for enhanced visibility. Our energy saving LEDs use less power than comparable halogen lights.
EASY CLEANING
Secure, spill-safe glass shelves easily capture any drips or leaks, and can be easily removed for fast and easy cleaning.
CLEVER ENERGY
This refrigerator adapts to daily use by cooling and defrosting only when needed, providing greater energy efficiency without compromising on food care.

SPECIFICATIONS

Accessories

Contemporary round handleAHSRS3272A
Contemporary square handleAHD3RS3272A
Matching Replacement WaterFWC3
Professional round flush handleAHP3RD32A
Professional round handle kitAHCRS3272A
Professional square handle kitAHV2RS3272A
Square fine aluminium handleAHD5RD32A
Square fine black handle kitAHD5RD32AB
Stainless Steel Door Panel SetRD3272AUB

Capacity

Volume14.7cu ft
Volume freezer4.4cu ft
Volume refrigerator10.3cu ft

Consumption

Energy ratingEnergy star
Energy usage540kWh/year

Features

Adjustable door shelves6
Adjustable glass cantilevered
Covered door shelves2
Deli storage bins1
Door alarm
Fruit and vegetable bins2
LED lighting
SmartTouch control panel
Soft close doors
Stackable bottle holders4
Wi-Fi connectivity

Freezer Features

  • Automatic ice maker
  • Bottle chill
  • Door alarm
  • Fast freeze
  • Ice Boost
  • LED lighting
  • Slide Out Pastry Tray

Performance

ActiveSmart™ Foodcare
Adaptive defrost
Frost free freezer
Humidity control system
Inverter controlled compressor
Sabbath mode

Power requirements

Rated current10A
Supply frequency60Hz
Supply voltage115V

Product dimensions

Depth23 11/16″
Height71 7/8″
Width31 1/8″

Warranty

Parts and labour2 years
Sealed system parts only5 years
SKU26311

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
