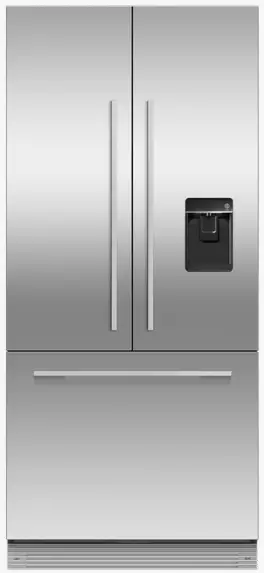

RS32A72U1 32 Inch Integrated French Door Refrigerator Freezer
User Guide
RS32A72U1 32 Inch Integrated French Door Refrigerator Freezer
QUICK REFERENCE GUIDE > RS32A72U1
Integrated French Door Refrigerator Freezer, 32″, Ice & Water
Series 7 | Integrated Panel
Ready | French hingeDesigned to seamlessly integrate into your kitchen. With minimal gaps and no visible hinges, this model has a flush fit to suit any kitchen layout.
- ActiveSmartTM technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- With SmartTouch control panel for ease of use
- The spacious bottom freezer with full extension drawer and ice maker with boost function
- Stainless steel panels need to be purchased separately

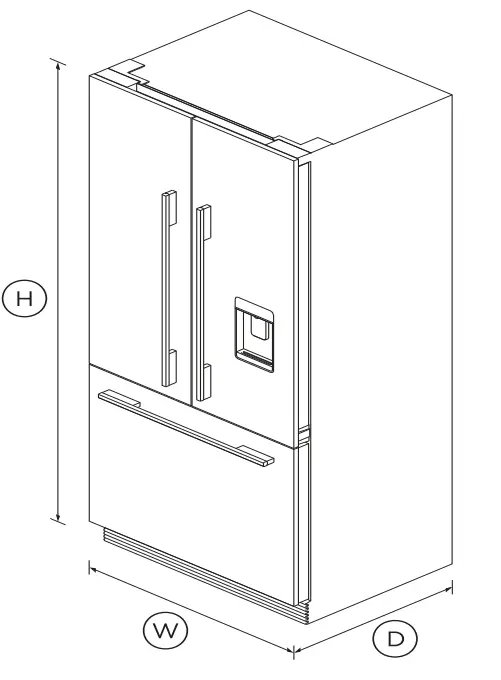

DIMENSIONS
| Height | 71 1/8″ |
| Width | 31 1/8″ |
| Depth | 23 11/16″ |
FEATURES & BENEFITS
Perfect Fit
These models fit flush and have minimal gaps, with no visible hinges. Our Integrated refrigeration can be seamlessly hidden behind your cabinetry or you can purchase our stainless steel door panel.
ActiveSmartTM Foodcare
ActiveSmartTM Foodcare learns how you live. Understanding how you use your fridge and adjusting temperature, airflow and humidity inside, it helps keep food fresher for longer.
Flexible Storage
Designed to make it simple for you to store, sort, and access food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our cantilevered shelving also gives you more storage options.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water without taking up any storage space in your fridge.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Beautiful Lighting
LED lighting illuminates the interior with a crisp, clean glow for enhanced visibility. Our energy-saving LEDs use less power than comparable halogen lights.
Easy Cleaning
Secure, spill-safe glass shelves easily capture any drips or leaks and can be easily removed for fast and easy cleaning.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | AHSRS3272A |
| Contemporary square handle | AHD3RS3272A |
| Matching Replacement Water | FWC3 |
| Professional round flush handle | AHP3RD32A |
| Professional round handle kit | AHCRS3272A |
| Professional square handle kit | AHV2RS3272A |
| Square fine aluminum handle | AHD5RD32A |
| Square fine black handle kit | AHD5RD32AB |
| Stainless Steel Door Panel Set | RD3272AUUB |
| Capacity | |
| Volume | 14.7cu ft |
| Volume freezer | 4.4cu ft |
| Volume refrigerator | 10.3cu ft |
| Consumption | |
| Energy rating | Energy star |
| Energy usage | 540kWh/year |
| Features | |
| Adjustable door shelves | 6 |
| Adjustable glass cantilevered | • |
| Covered door shelves | 2 |
| Deli storage bins | 1 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| SmartTouch control panel | • |
| Soft close doors | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| LED lighting | • |
| Slide Out Pastry Tray | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product dimensions | |
| Depth | 23 11/16″ |
| Height | 71 1/8″ |
| Width | 31 1/8″ |
| Warranty | |
| Parts and labor | 2 years |
| Sealed system parts only | 5 years |
| SKU | 25620 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher &Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
 | User Guide |
| Energy Label |
| Service & Warranty |
| Installation Guide |
| Install Guide – Water Filter Replacement |
| Dual Installation Guide |
