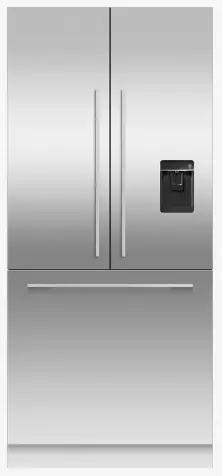

RS36A80U1N 36 Inch Integrated French
Door Refrigerator Freezer
User Guide
Series 7 | Integrated
Panel Ready | French hinge
This large-capacity refrigerator with a bottom freezer seamlessly integrates into your kitchen, fitting flush into your cabinetry.
- ActiveSmart™ technology helps keep food fresher for longer by
- constantly maintaining the ideal temperature
- Stainless steel door panel purchased separately – with water dispenser option available
- Internal ice maker with boost for busy times
- Can be fitted for a height of 80 or 84 inches

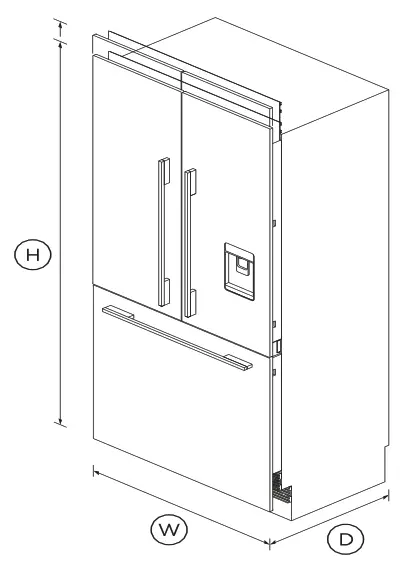

DIMENSIONS
| Height | 79 13/16″ |
| Width | 35 1/16″ |
| Depth | 23 3/4″ |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare learns how you live. It’s a technology that understands how you use your fridge and adjusts the temperature, airflow, and humidity inside to help keep food fresher for longer.
Easy cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin.
Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Design quality
Our refrigerators are designed and built using quality materials.
We use real stainless steel on our refrigerators and solid glass for shelving.
Simple Storage
This refrigerator is designed to make it simple for you to store, access, and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean.
Our flexible shelving also gives you more storage options.
Complementary Design
With their premium handle styling and stainless steel finish, our refrigerators are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | AHS-ASBI-A |
| Contemporary square handle | RS36A |
| Professional round flush handle | AHP3RD36A |
| Professional round handle kit | AHCRS36A |
| Professional square handle kit | AHV2RS36A |
| Replacement water filter | FWC3 |
| Square fine aluminum handle | AHD5RD36A |
| Square fine black handle kit | AHD5RD36AB |
| Stainless steel door panel | RD3680AU (80″”) or |
| Capacity | |
| Volume | 16.8cu ft |
| Volume freezer | 5.1cu ft |
| Volume refrigerator | 11.7cu ft |
| Consumption | |
| Energy rating | Energy star |
| Energy usage | 561kWh/year |
| Features | |
| Adjustable door shelves | 6 |
| Adjustable glass cantilevered | • |
| Covered door shelves | 2 |
| Deli storage bins | 1 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Water Filter | Part number 842802 |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Freezer bins | 1 |
| Ice Boost | • |
| LED lighting | • |
| Slide Out Pastry Tray | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Automatic defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Sabbath mode | • |
| Power requirements | |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product dimensions | |
| Depth | 23 3/4″ |
| Height | 79 13/16″ |
| Width | 35 1/16″ |
| Warranty | |
| Parts and labor | 2 years |
| Sealed system parts only | 5 years |
| SKU | 25804 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
