RS36A72J1 N 36 Inch Integrated French Door Refrigerator Freezer Ice
User Guide
Series 7 | Integrated
Panel Ready | French hinge

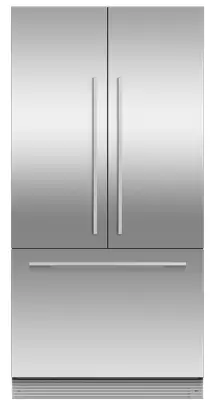

RS36A72J1 N 36 Inch Integrated French Door Refrigerator Freezer Ice
This large capacity refrigerator with bottom freezer seamlessly integrates into your kitchen, fitting flush into your cabinetry.
- Active Smart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- Internal ice maker with boost for busy times
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods

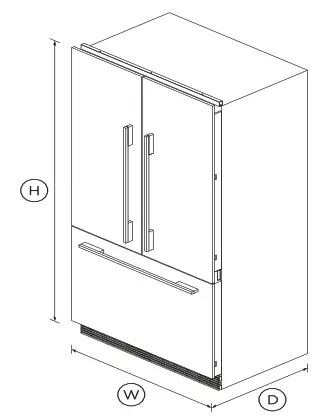

DIMENSIONS
| Height | 71 13/16″ |
| Width | 35 1/16″ |
| Depth | 23 3/4″ |
FEATURES & BENEFITS
Active Smart™ Food care
Active Smart™ Food care learns how you live. It’s technology which understands how you use your fridge and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
Clever energy
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Design quality
Our refrigerators are designed and built using quality materials. We use real stainless steel on our refrigerators and solid glass for shelving.
Easy installation
Our integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Our refrigerators are designed for minimal gaps with adjustable front and rear feet to allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen.
Easy cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Simple Storage
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | AHS-ASBI-A |
| Contemporary square handle | RS36A |
| Matching Replacement Water | FWC3 |
| Professional round flush handle | AHP3RD36A |
| Professional round handle kit | AHCRS36A |
| Professional square handle kit | AHV2RS36A |
| Square fine aluminium handle | AHD5RD36A |
| Square fine black handle kit | AHD5RD36AB |
| Stainless steel door panel | RD3672A |
| Capacity | |
| Volume | 16.8cu ft |
| Volume freezer | 5.1cu ft |
| Volume refrigerator | 11.7cu ft |
| Consumption | |
| Energy rating | Energy star |
| Energy usage | 561kWh/year |
| Features | |
| Adjustable door shelves | 6 |
| Adjustable glass cantilevered | • |
| Covered door shelves | 2 |
| Deli storage bins | 1 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| Smart-touch control panel | • |
| Soft close doors | • |
| Stack able bottle holders | 4 |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Freezer bins | 1 |
| Ice Boost | • |
| LED lighting | • |
| Slide Out Pastry Tray | • |
| Performance | |
| Active-smart™ Food care | • |
| Adaptive defrost | • |
| Automatic defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Power requirements | |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product dimensions | |
| Depth | 23 3/4″ |
| Height | 71 13/16″ |
| Width | 35 1/16″ |
| Warranty | |
| Parts and labor | 2 years |
| Sealed system parts only | 5 years |
| SKU | 26313 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
