Integrated French Door
Refrigerator Freezer, 36″, Ice & Water
Series 7 | Integrated
Panel Ready | French hinge
QUICK REFERENCE GUIDE > RS36A80U1 N

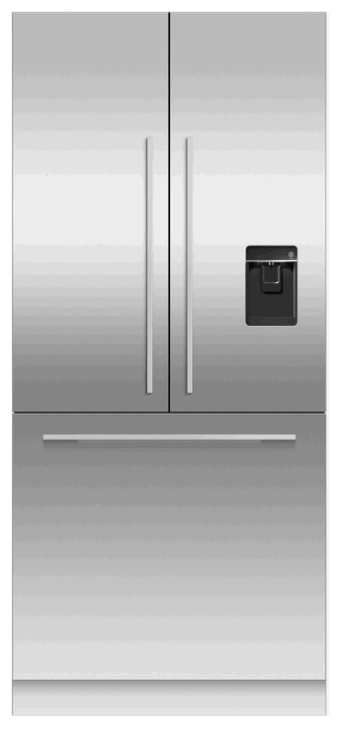

RS36A80U1 N Integrated French Door Refrigerator Freezer, 36 Inch Ice and Water
This large capacity refrigerator with bottom freezer seamlessly integrates into your kitchen, fitting flush into your cabinetry.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Stainless steel door panel purchased separately – with water dispenser option available
- Internal ice maker with boost for busy times
- Can be fitted for a height of 80 or 84 inches

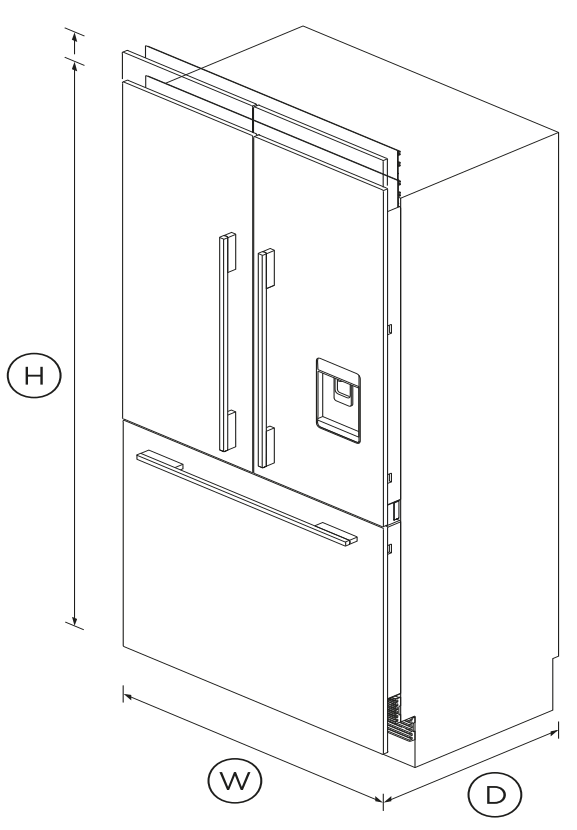

DIMENSIONS
| Height | 79 13/16″ |
| Width | 35 1/16″ |
| Depth | 23 3/4″ |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare learns how you live. It’s technology which understands how you use your fridge and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
Easy cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Design quality
Our refrigerators are designed and built using quality materials. We use real stainless steel on our refrigerators and solid glass for shelving.
Simple storage
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
Complementary Design
With their premium handle styling and stainless steel finish, our refrigerators are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | AHS-ASBI-B |
| Contemporary square handle | RS36W |
| Professional round flush handle | AHP3RD36W |
| Professional round handle kit | AHCRS36W |
| Professional square handle kit | AHV2RS36W |
| Replacement water filter | 862287 |
| Square fine aluminium handle | AHD5RD36W |
| Square fine black handle kit | AHD5RD36WB |
| Stainless steel door panel | 25778 (80″”) or 25783 (84″”) |
| Stainless steel door panel set, | RD3680U |
| Stainless steel door panel set, | RD3684U |
| Capacity | |
| Volume refrigerator | 11.7cu ft |
| Features | |
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Deli storage bins | 1 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Water Filter | Part number 842802 |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Fast freeze | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| ActiveSmart™ technology | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Sabbath mode | • |
| Product dimensions | |
| Depth | 23 3/4″ |
| Height | 79 13/16″ |
| Width | 35 1/16″ |
| Warranty | |
| Parts and labor | 2 years |
| Sealed system parts and labor | additional 3 years |
| SKU | 26316 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 Wwww.fisherpaykel.com
Date: 02.02.2022 > 2
