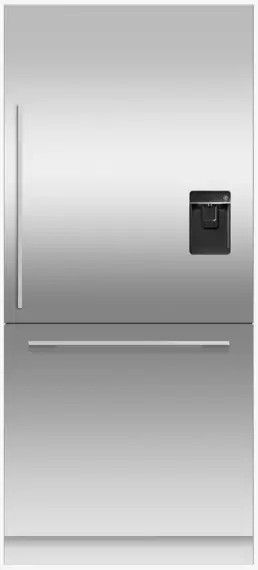

FISHER PAYKEL RS36W80RU1_N Integrated Refrigerator Freezer, 36 Inch, Ice and Water User Guide
Introduction
Choose a roomy refrigerator which fits flush into surrounding cabinetry. Add our stylish stainless steel panel with slimline water dispenser
- Active Smart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Stainless steel door panel purchased separately – with water dispenser option available
- Spacious bottom freezer with full extension drawer, and Internal ice maker with boost for busy times
- Can be fitted for a height of 80 or 84 inches

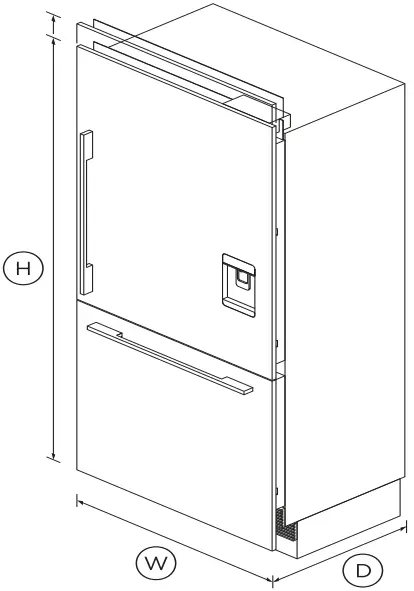

DIMENSIONS
| Height | 79 13/16″ |
| Width | 35 1/16″ |
| Depth | 23 3/4″ |
FEATURES & BENEFITS
ACTIVESMART™ FOODCARE
Active Smart™ Food care learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
EASY INSTALLATION
Our integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Our refrigerators are designed for minimal gaps with adjustable front and rear feet to allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen.
CLEVER ENERGY
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
EASY CLEANING
No more permanent dirty marks with our EZ Kleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
WATER ON TAP
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water without taking up any storage space in your fridge.
DESIGN QUALITY
Our refrigerators are designed and built using quality materials. We use real stainless steel on our refrigerators and solid glass for shelving.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | AHS-ASBI-B |
| Contemporary square handle | RS36W |
| Joiner kit | RS80 |
| Matching Replacement Water | FWC3 |
| Professional round flush handle | AHP3RD36W |
| Professional round handle kit | AHCRS36W |
| Professional square handle kit | AHV2RS36W |
| Square fine aluminium handle | AHD5RD36W |
| Square fine black handle kit | AHD5RD36WB |
| Stainless steel door panel | 80″, Right hinge RD3680WRU |
| Stainless steel door panel 84″ | RD3684WRU |
| Capacity | |
| Volume | 16.8cu ft |
| Volume freezer | 5.1cu f |
| Volume refrigerator | 11.7cu ft |
| Consumption | |
| Energy rating | Energy star |
| Energy usage | 534kWh/year |
| Features | |
| Adjustable door shelves | 6 |
| Adjustable glass cantilevered | • |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Deli storage bins | 1 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| Smart Touch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Ultra slim water dispenser | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Freezer bins | 2 |
| Ice Boost | • |
| LED lighting | • |
| Slide Out Pastry Tray | • |
| Performance | |
| Active Smart™ Food care | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product dimensions | |
| Depth | 23 3/4″ |
| Height | 79 13/16″ |
| Width | 35 1/16″ |
| Product information | |
| Unpackaged weight | 327lbs |
| Warranty | |
| Parts and labour | 2 years |
| Sealed system parts only | 5 years |
| SKU | 26319 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
