RS36W Integrated Refrigerator Freezer, 36″, Ice & Water
User Guide
QUICK REFERENCE GUIDE > RS36W80RU1_N

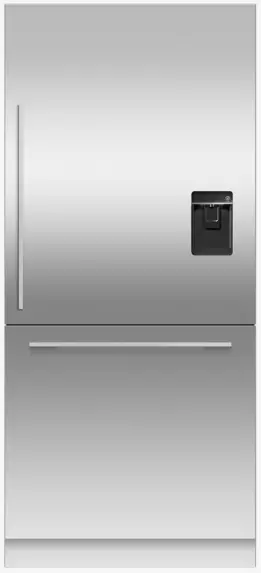

Integrated Refrigerator Freezer, 36″, Ice & Water
Series 7 | Integrated
Panel Ready | Right HingeChoose a roomy refrigerator that fits flush into surrounding cabinetry. Add our stylish stainless steel panel with a slimline water dispenser
- ActiveSmartTM technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Stainless steel door panel purchased separately with water dispenser option available
- The spacious bottom freezer with full extension drawer and Internal ice maker with boost for busy times
- Can be fitted for a height of 80 or 84 inches
DIMENSIONS
| Height | 79 13/16″ |
| Width | 35 1/16″ |
| Depth | 23 3/4″ |
FEATURES & BENEFITS
ActiveSmartTM Foodcare
ActiveSmartTM Foodcare learns how you live. It’s a technology that understands how you use your fridge and adjusts the temperature, airflow, and humidity inside to help keep food fresher for longer.
Easy installation
Our integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Our refrigerators are designed for minimal gaps with adjustable front and rear feet to allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen.
Clever energy
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Ice maker Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Easy Cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
Design quality
Our refrigerators are designed and built using quality materials. We use real stainless steel on our refrigerators and solid glass for shelving.
SPECIFICATIONS
Accessories
| Contemporary round handle | AHS-ASBI-B |
| Contemporary square handle | RS36W |
| Joiner kit | RS80 |
| Matching Replacement Water | FWC3 |
| Professional round flush handle | AHP3RD36W |
| Professional round handle kit | AHCRS36W |
| Professional square handle kit | AHV2RS36W |
| Square fine aluminum handle | AHD5RD36W |
| Square fine black handle kit | AHD5RD36WB |
| Stainless steel door panel | 80″, Right hinge RD3680WRU |
| Stainless steel door panel 84″, | RD3684WRU |
Capacity
| Volume | 16.8cu ft |
| Volume refrigerator | 11.7cu ft |
Consumption
| Energy rating | Energy star |
| Energy usage | 534kWh/year |
Features
| Adjustable door shelves | 6 |
| Adjustable glass cantilevered | • |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Deli storage bins | 1 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| SmartTouch control panel | • |
| Soft close doors | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
Freezer Features
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| LED lighting | • |
Performance
| ActiveSmart™ technology | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |

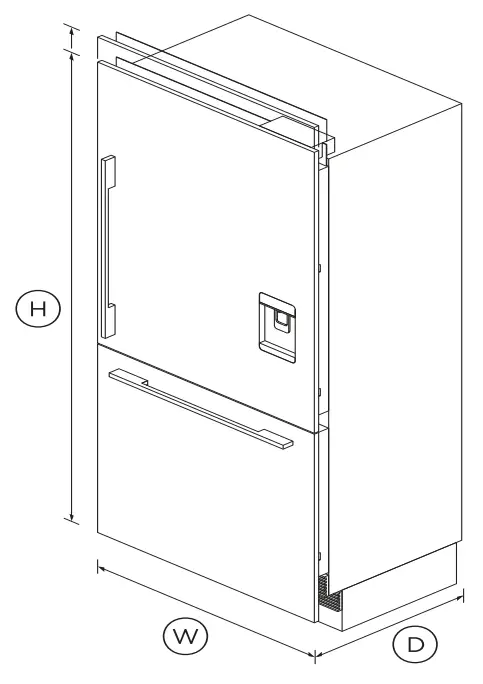

Product dimensions
| Depth | 23 3/4″ |
| Height | 79 13/16″ |
| Width | 35 1/16″ |
Product information
| Unpackaged weight | 148kg |
Warranty
| Parts and labor | 2 years |
| Sealed system parts only | 5 years |
| SKU | 25826 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
