QUICK REFERENCE GUIDE

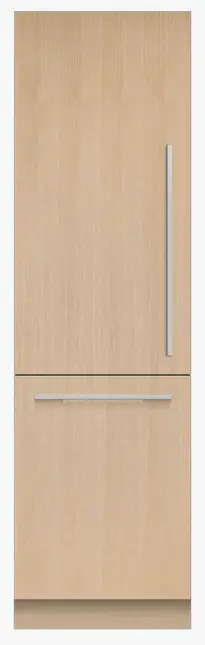

RS2484WLUK1
Integrated Refrigerator
Freezer, 24″, Ice & Water
Series 9 | Integrated
Panel Ready | Left hinge
A slim profile, perfect for compact kitchens, or pair it with other
Integrated models for generous chilled and frozen storage.
- Keep food fresher for longer by constantly maintaining the ideal temperature with ActiveSmart™ technology
- Create the perfect climate for each type of food with Variable Temperature Zone: choice of four food modes, Pantry, Fridge, Soft Freeze or Freezer
- Convenient access to fresh, chilled water and ice with internal water dispenser and icemaker
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel and handle accessories
DIMENSIONS
| Height | 84 “ |
| Width | 23 3/4″ |
| Depth | 24 “ |
FEATURES & BENEFITS
Variable Temperature Zone
Create the perfect climate and store each type of food at optimal temperature and humidity with a Variable Temperature Zone, reducing food waste due to spoiling. You have the choice of four food modes: Pantry, Fridge, Soft Freeze, or Freezer. Use the Max cold feature for periods of high refrigerator or freezer use, or full grocery loads.
SPECIFICATIONS
Accessories (sold separately) | |
| Hinge change (from the left hinge | 848184P |
| Hinge change (from right hinge | 848183P |
| Joiner kit | 24985 |
| Matching Replacement Water | 847200 |
| Professional Round Handle Kit | 25730 |
| Professional Square Handle Kit | 25732 |
Consumption | |
| Energy star rating | Yes (Most efficient) |
Freezer features | |
| Automatic ice maker | • |
| Door alarm | • |
| Freezer bins | 2 |
| Ice Boost | • |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED side lighting | • |
| Max cold | • |
| SmartTouch interface at | • |
Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Dual evaporator | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Variable food modes | Pantry; Fridge; Soft freeze; |
Power Requirements | |
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
Product dimensions | |
| Depth | 24 “ |
| Height | 84 “ |
| Width | 23 3/4 “ |
Refrigerator features | |
| Adjustable door shelves | 4 |
| Adjustable glass cantilevered | • |
| Covered door shelves | 1 |
| Door alarm | • |
| Gallon door shelves | 1 |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED side lighting | • |
| SmartTouch interface at | • |
| Soft-close fruit and vegetable | 2 |
| Stackable bottle holders | 4 x clip-in; 4 x flexible |
| Ultra-slim water dispenser | • |
Warranty | |
| Parts and labor | 2 years |
| Sealed system parts only | 5 years |
| SKU | 25688 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. © Fisher & Paykel Appliances Ltd 2019.
Other product downloads available at fisherpaykel.com
User GuideService & Warranty BookletInstallation Guide
