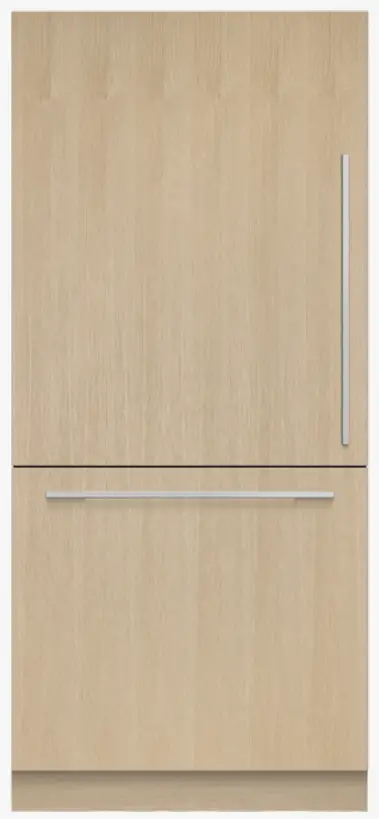

FISHER PAYKEL RS36W80LJ1 N Integrated Refrigerator Freezer, 36 Inch, Ice

Choose a roomy refrigerator with ice maker. Fits flush with your custom cabinetry or with our stainless steel panels.

ActiveSmartTM technology helps keep food fresher for longer by constantly maintaining the ideal temperature
Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
Spacious bottom freezer with full extension drawer, and Internal ice maker with boost for busy times
Can be fitted for a height of 80 or 84 inches

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

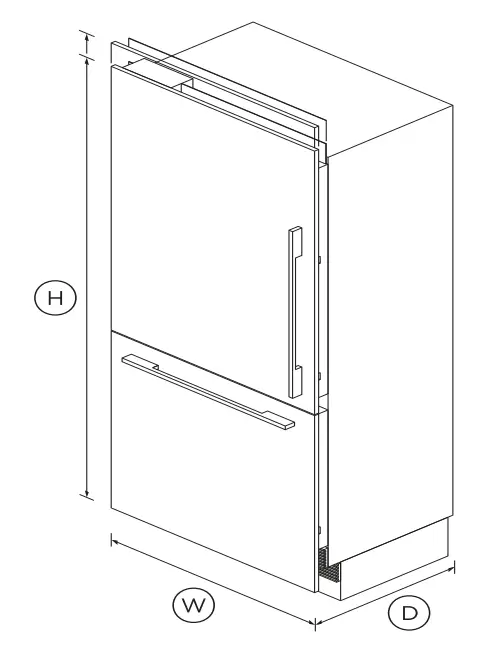

DIMENSIONS

Height	79 13/16″
Width	35 1/16″
Depth	23 3/4″

FEATURES & BENEFITS

ACTIVESMARTTM FOODCARE
ActiveSmartTM Foodcare learns how you live. It’s technology which understands how you use your fridge and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
CLEVER ENERGY
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
COMPLEMENTARY DESIGN
With their premium handle styling and stainless steel finish, our refrigerators are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
EASY CLEANING
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
SIMPLE STORAGE
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
EASY INSTALLATION
Our integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Our refrigerators are designed for minimal gaps with adjustable front and rear feet to allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen.

SPECIFICATIONS

Accessories
Contemporary round handle	AHS-ASBI-B
Contemporary square handle	RS36W
Joiner kit	RS80
Matching Replacement Water	FWC3
Professional round flush handle	AHP3RD36W
Professional round handle kit	AHP3RD36W Professional round handle kit AHCRS36W
Professional square handle kit	AHV2RS36W
Square fine aluminium handle	AHD5RD36W
Square fine black handle kit	AHD5RD36WB
Stainless steel door panel	80″ Left hinge RD3680WL,
Capacity
Volume	16.8cu ft
Volume freezer	5.1cu f
Volume refrigerator	11.7cu ft
Consumption
Energy rating	Energy star
Energy usage	534kWh/year
Features
Adjustable door shelves	6
Adjustable glass cantilevered	•
Adjustable glass shelves	3
Covered door shelves	2
Deli storage bins	1
Door alarm	•
Fruit and vegetable bins	2
LED lighting	•
SmartTouch control panel	•
Stackable bottle holders	4
Wi-Fi connectivity	•
Freezer Features	•
Automatic ice maker	•
Bottle chill	•
Drawer alarm	•
Fast freeze	•
Freezer bins	2
Ice Boost	•
LED lighting	•
Slide Out Pastry Tray	•
Performance
ActiveSmart™ Foodcare	•
Adaptive defrost	•
Adaptive defrost • Frost free freezer	•
Humidity control system	•
Inverter controlled compressor	•
Sabbath mode	•
Power requirements
Rated current	10A
Supply frequency	60Hz
Supply voltage	115V

Product dimensions
Depth	23 3/4″
Height	79 13/16″
Width	35 1/16″
Product information
Unpackaged weight	327lbs
Warranty
Parts and labour	2 years
Sealed system parts only	5 years
SKU	26317
